Stryker 1000 - Page 55

51
1000–141–8 24” Fiberresin Manual Fowler/Stationary

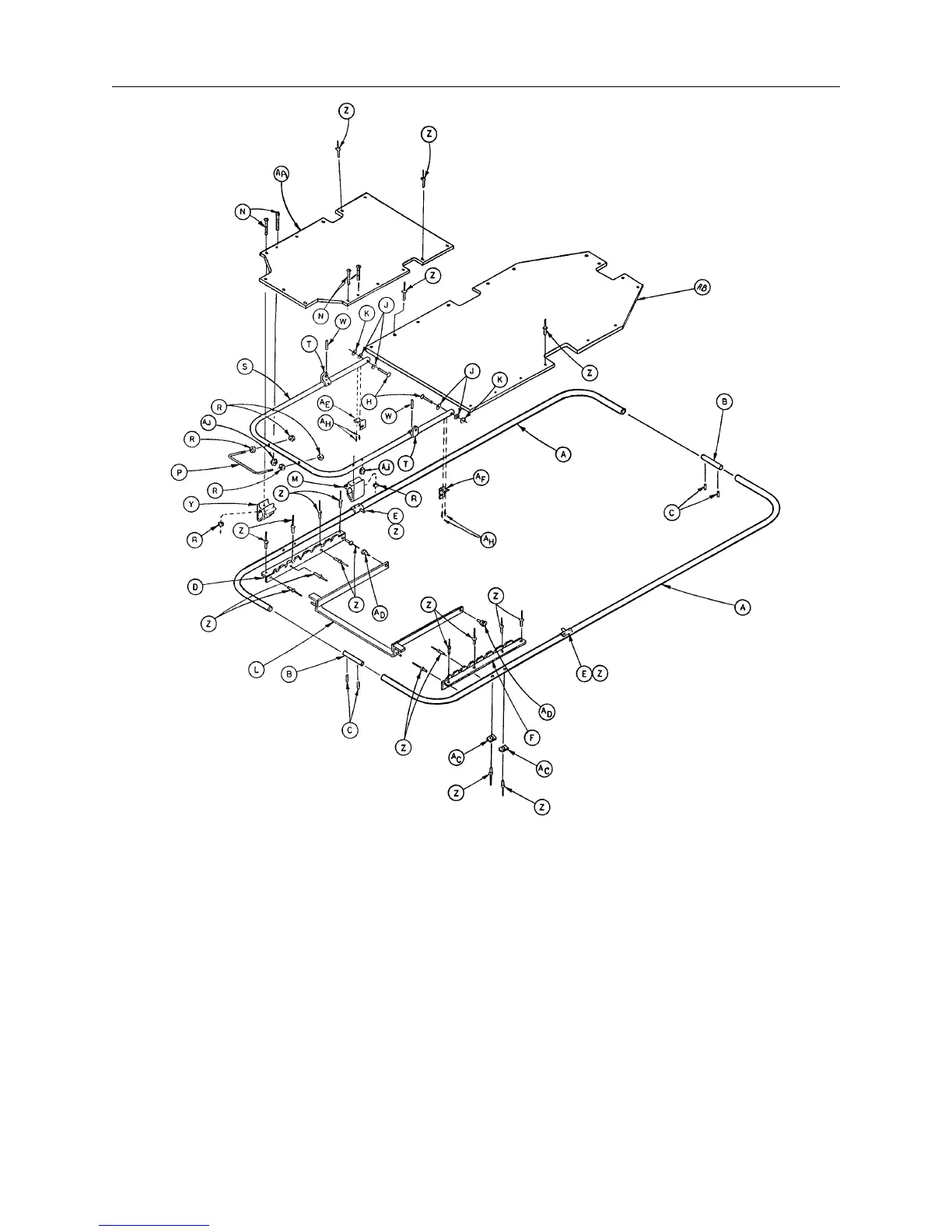

Foot End Litter Assembly
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A 390–24–7 Litter Frame Tube 2 S 1000–41–14 Fowler Frame 1
B 381–24–6 Connector Pin 2 T 940–2–134 Hinge Bracket 2
C26–12 Roll Pin 4 W 26–57 Roll Pin 2
D 381–20–3 Position Brkt. Ass’y, Lt. 1 Y 1000–21–28 Yoke Housing, Left 1
E 378–24–15 Pivot Plate Assembly 2 Z 25–69 Pop Rivet 50
F 381–20–4 Position Brkt. Ass’y, Rt. 1 AA 1000–142–8 Head End Top 1
H25–17 Semi–Tubular Rivet 2 AB 1000–141–14 Foot End Top 1
J14–4 Nylon Washer 4 AC 378–24–42 Formed Washer 4
K28–28 Retaining Ring 2 AD 8–13 Shoulder Bolt 2
L 381–24–2 Fowler Lock Assembly 1 AE 1000–21–11 Formed Bracket, Left 1
M 1000–21–27 Yoke Housing, Right 1 AF 1000–21–10 Formed Bracket, Right 1
N7–27 Truss Hd. Mach. Screw 4 AH 25–50 Pop Rivet 4
P 460–4–39 Posterior Handle 1 AJ 16–36 Fiberlock Nut 2
R15–12 Hex Nut 6
