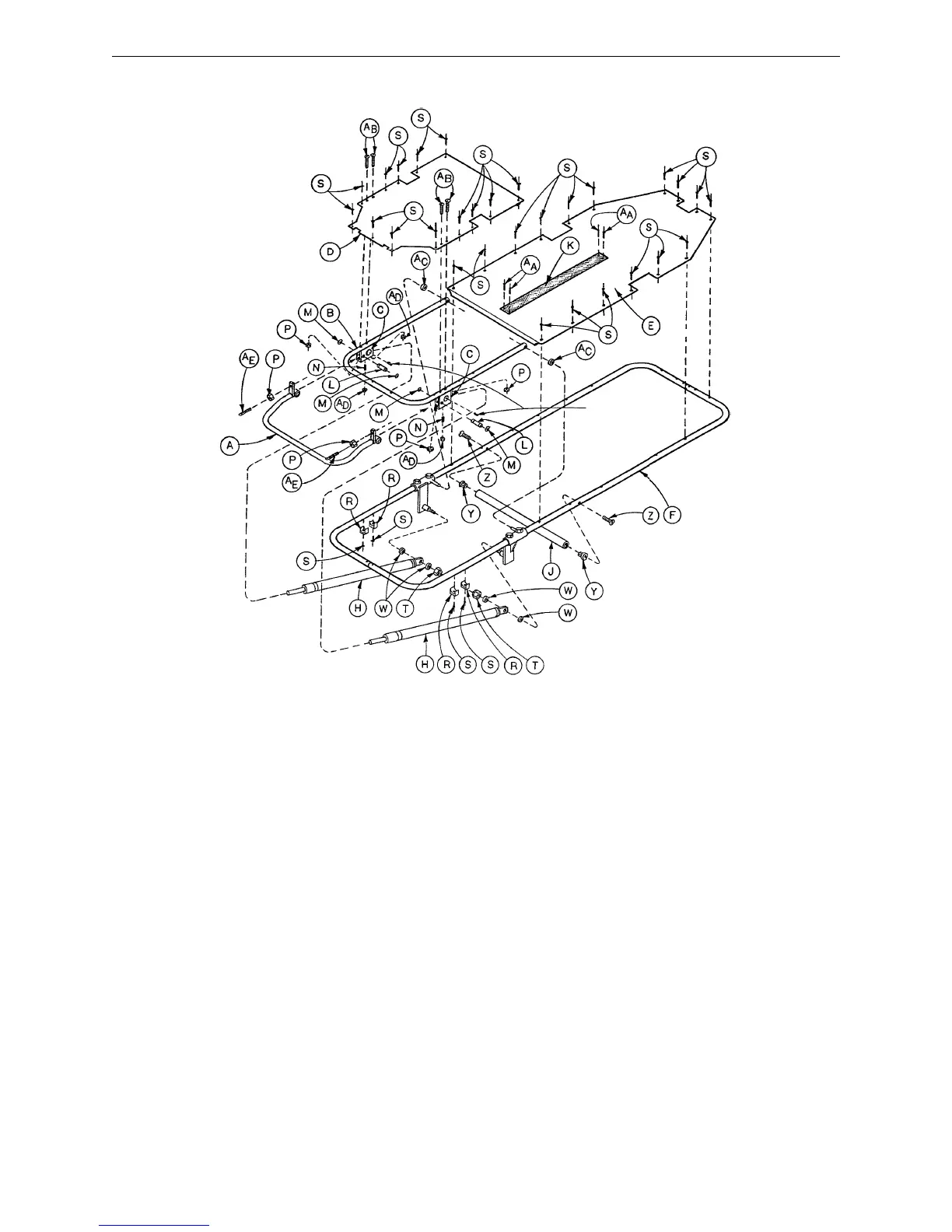

1000–242–5 24” Alum. Pneu. Fowler/Stat. Foot Litter Ass’y
p/n 21–119
set screw (ref.)
Item Part No. Part Name Qty.
A 1000–242–51 Handle Assembly 1
B 1000–242–56 Head End Fowler, Pneu. 1
C (page 54) Housing Assembly 2
D 1000–242–59 Head End Top, Pneu. 1
E 390–24–5 Foot End Top 1
F 1000–42–40 Litter Frame Assembly 1
H 1010–31–78 Gas Cylinder 2
J 960–1–7 Crossbar 1
K –––– Velcro Pile As Req’d
L 1510–31–37 Pivot 2
M28–8 Retaining Ring 4
N21–125 Set Screw 2
P15–50 Hex Nut 6
R 378–24–42 Formed Washer 4
S25–55 Pop Rivet 33
T16–35 Nylock Nut 2
W14–21 Nylon Washer 4
Y 940–2–10 Crossbar Mount 2
Z1–34 Flat Hd. Mach. Screw 2
AA 25–40 Pop Rivet 4
AB 7–25 Truss Hd. Mach. Screw 4
AC 921–22–59 Spacer 2
AD 15–37 Jam Nut 2
AE 21–126 Set Screw 2
