69

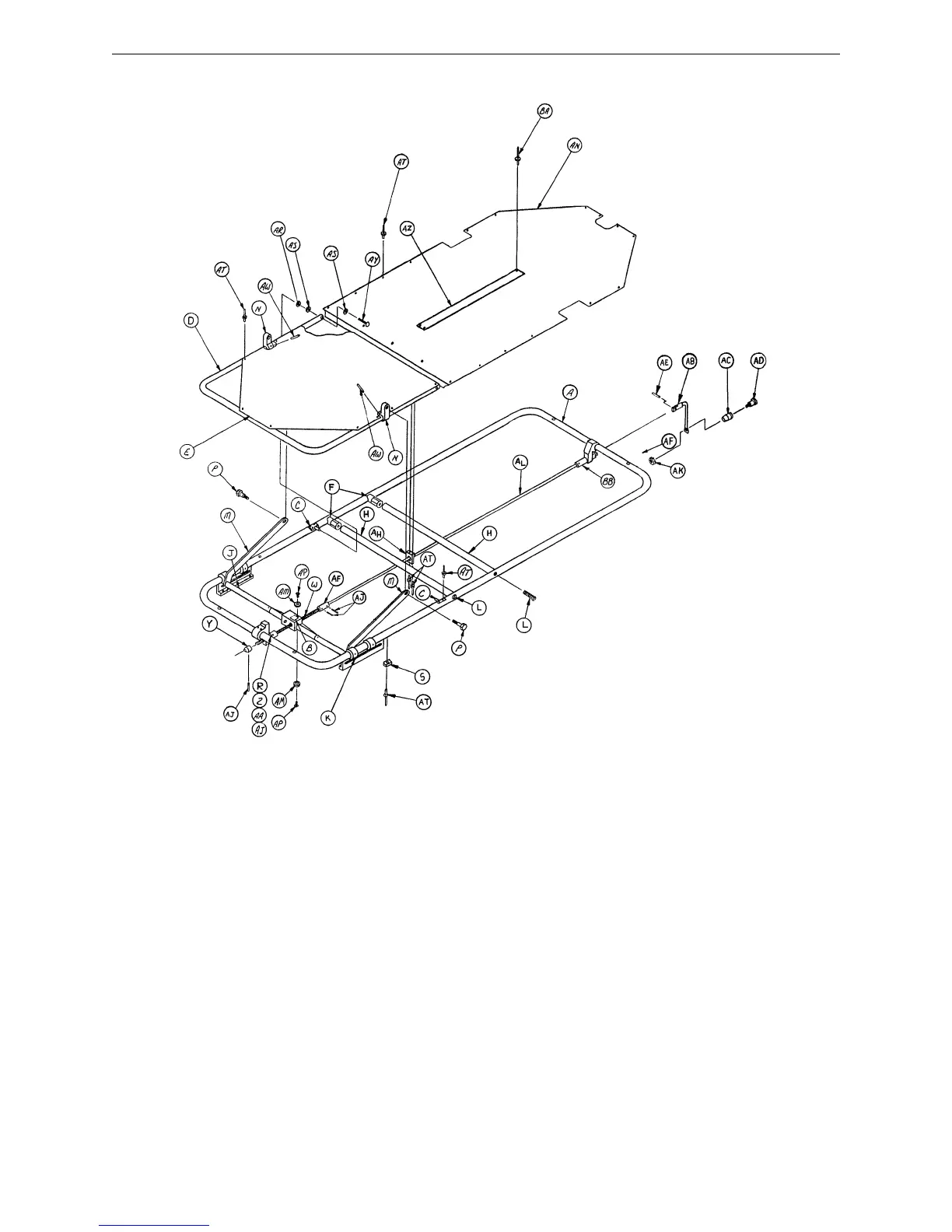

1500–43–100 29” Crk. Fowler (Ft. End Crk.)/Stat. Foot Litter
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A 1500–43–101 Litter Frame Ass’y 1 AB 1500–245–25 Crank Handle Ass’y1
B 389–32–30 Right Hand Nut 1 AC 378–24–30 Knob 1
C 378–24–15 Pivot Plate Ass’y 2 AD 378–24–29 Shoulder Bolt 1
D 389–34–14 Head End Fowler 1 AE 26–56 Roll Pin 1
E 393–29–4 Head End Top 1 AF 389–32–16 Screw Coupler 1
F 940–2–10 Crossbar Mount 4 AH 935–29–10 Rod Brace 1
H 940–1–11 Crossbar 2 AJ 26–43 Roll Pin 4
J 935–34–25 Crossbar Ass’y, Hd. End 1 AK 16–6 Kep Nut 1
K 378–24–23 Roller 2 AL 389–32–17 Connecting Rod 1
L1–34 Flat Hd. Mach. Screw 4 AM 11–53 Washer 2
M 378–24–22 Riser Bar 2 AN 378–29–4 Foot End Skin 1
N 940–2–134 Hinge Bracket, Mach. 2 AP 7–4 Truss Hd. Mach. Screw 2
P8–13 Shoulder Bolt 2 AR 28–28 Retaining Ring 2
R 378–24–46 Collar 1 AS 14–4 Nylon Washer 4
S 378–24–42 Formed Washer 2 AT 25–55 Rivet 41
W 935–34–5 Threaded Shaft 1 AW 26–57 Roll Pin 2
Y 378–24–9 Collar 1 AY 25–17 Rivet 2
Z81–148 Thrust Bearing 1 AZ –––– Velcro Pile 1
AA 81–149 Thrust Washer 2 BA 25–40 Pop Rivet 4
BB 389–34–18 Adaptor 1
