68

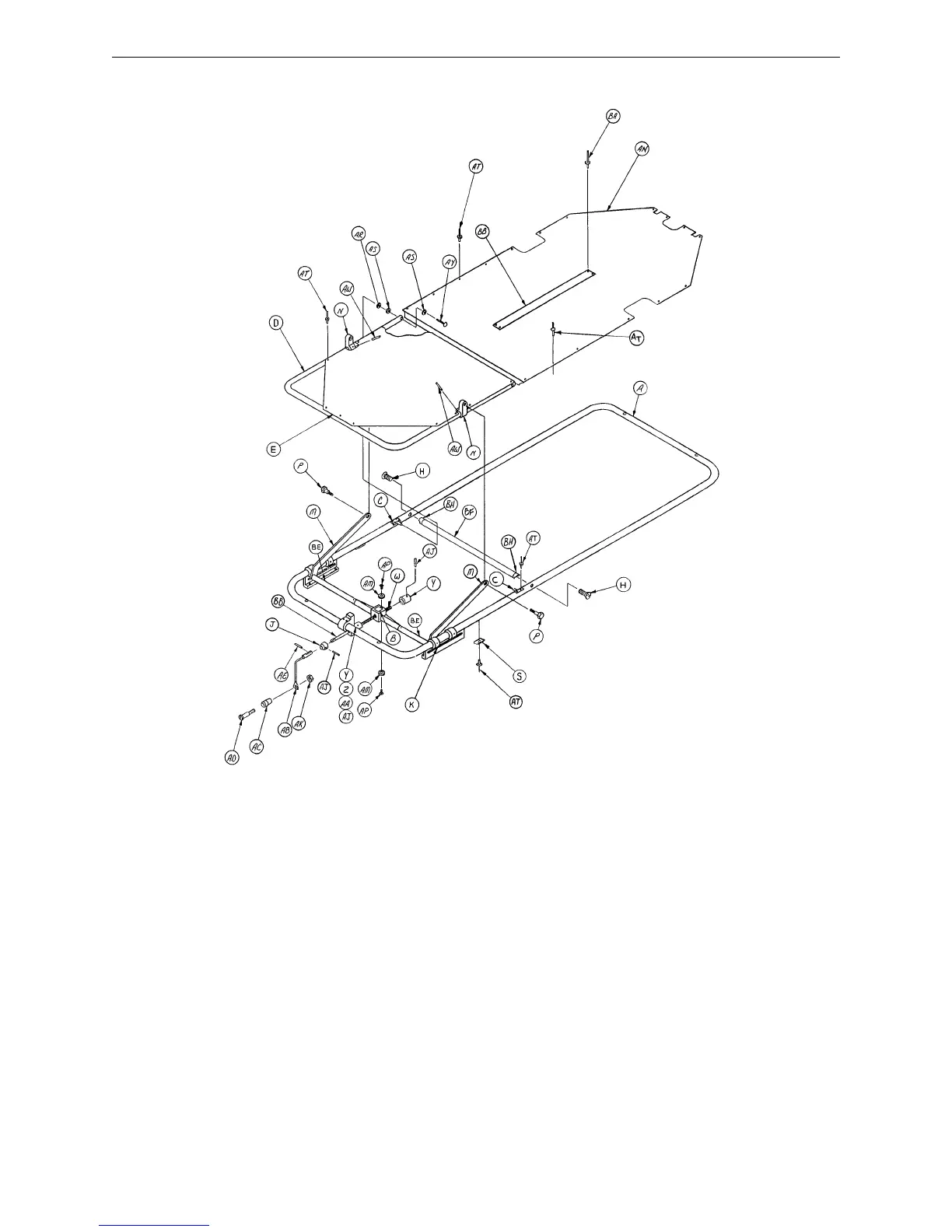

1500–43–10 29” Crk. Fowler (Hd. End Crank)/Stat. Ft. Litter
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A 1500–43–9 Litter Frame Ass’y 1 AD 378–24–29 Shoulder Bolt 1
B 378–24–8 Left Hand Nut 1 AE 26–56 Roll Pin 1
C 378–24–15 Pivot Plate Ass’y 2 AJ 26–43 Roll Pin 3
D 389–34–14 Head End Fowler 1 AK 16–6 Kep Nut 1
E 393–29–4 Head End Top 1 AM 11–53 Washer 2
H1–34 Flat Hd. Mach. Screw 2 AN 378–29–4 Foot End Skin 1
J 378–24–9 Collar 1 AP 7–4 Truss Hd. Mach. Screw 2
K 378–24–23 Roller 2 AR 28–28 Retaining Ring 2
M 378–24–22 Riser Bar 2 AS 14–4 Nylon Washer 4
N 940–2–134 Hinge Bracket, Mach. 2 AT 25–55 Rivet 38
P8–13 Shoulder Bolt 2 AW 26–57 Roll Pin 2
S 378–24–42 Formed Washer 2 AY 25–17 Rivet 2
W 378–24–37 Threaded Shaft 1 AZ –––– Velcro Pile 1
Y 378–24–46 Collar 2 BA 25–40 Pop Rivet 4
Z81–148 Thrust Bearing 1 BB 378–24–36 Adaptor 1
AA 81–149 Thrust Washer 2 BE 935–34–25 Crossbar Ass’y, Hd. End 1
AB 1500–245–25 Handle Ass’y 1 BF 940–1–11 Crossbar 1
AC 378–24–30 Knob 1 BH 940–2–10 Crossbar Mount 2
