Subaru Outback 2012 - Climate Control Panel; Type a

Black plate (177,1)
北米Model "A2480BE-A" EDITED: 2011/ 7/ 26

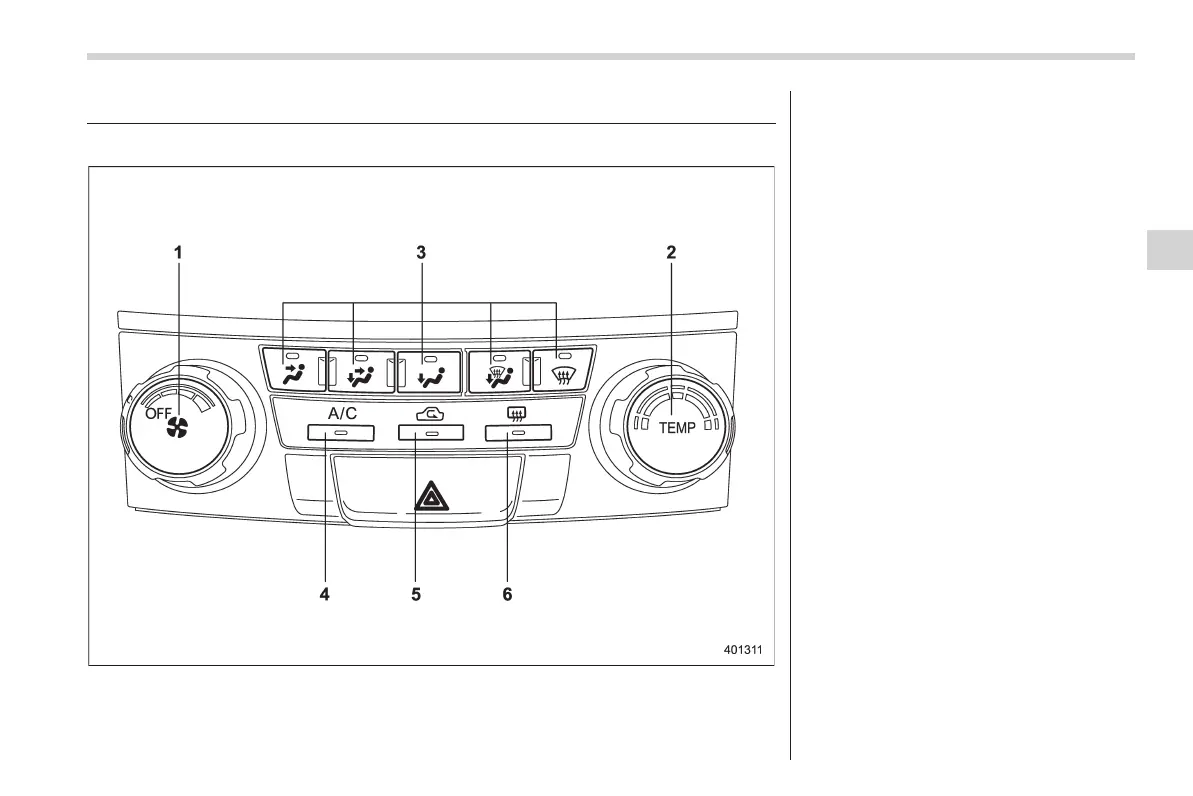

Climate control panel
& Type A
1) Fan speed control dial (Refer to “Fan
speed control” F4-7.)
2) Temperature control dial (Refer to “Tem-
perature control” F4-7.)
3) Airflow control buttons (Refer to “Airflow
mode selection” F4-6.)
4) Air conditioner button (Refer to “Air
conditioner control” F4-7.)
5) Air inlet selection button (Refer to “Air
inlet selection” F4-7.)
6) Rear window defogger button (Refer to
“Defogger and deicer” F3-34.)
Climate control
4-3
– CONTINUED –
4
