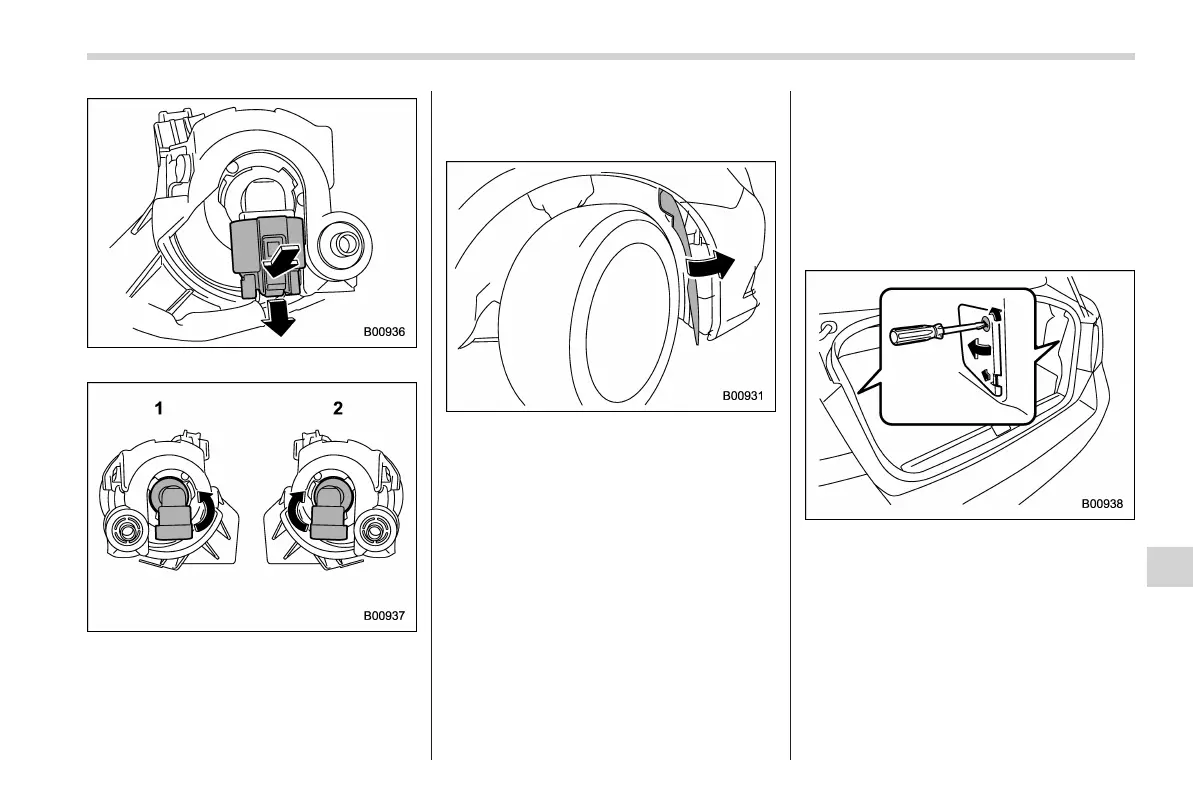

2. Disconnect the electrical connector.
1) For left-hand side
2) For right-hand side
3. Turn the socket clockwise (right-hand
side) or counterclockwise (left-hand side).
4. Pull out the socket.
5. Pull out the bulb from the socket and
replace the bulb with a new one.
6. After replacing the bulb, reattach the
fender lining.
& Rear combination lights
! Legacy
NOTE
It may be difficult to replace the bulbs.
We recommend that you have the bulbs
replaced by your SUBARU dealer if
necessary.
1. Turn the knobs of the cover 90
degrees counterclockwise to remove the
cover.
Maintenance and service 11-49
– CONTINUED –
11
To Next Page
