4-10
Climate control/Air filtration system

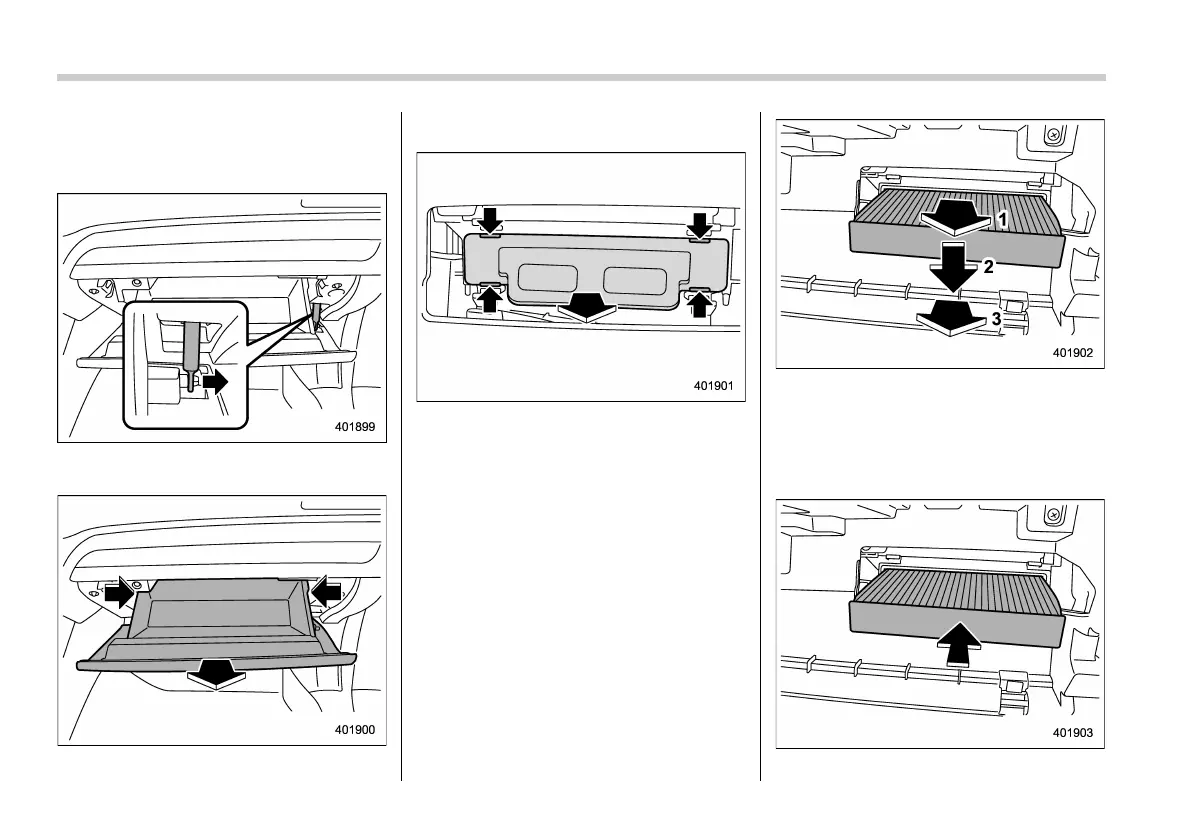

& Replacing an air filter
1. Remove the glove box.
(1) Open the glove box.
(2) Remove the damper shaft from the
glove box.
(3) Pull out the glove box.
2. Remove the cover of the air filter.
1) Pull the air filter approximately 10 cm (3.9
inches) first.
2) Gently push the near side of the air filter
down.
3) Pull out the air filter.
3. Remove the air filter.
To Next Page
