Interior equipment/Rear view camera

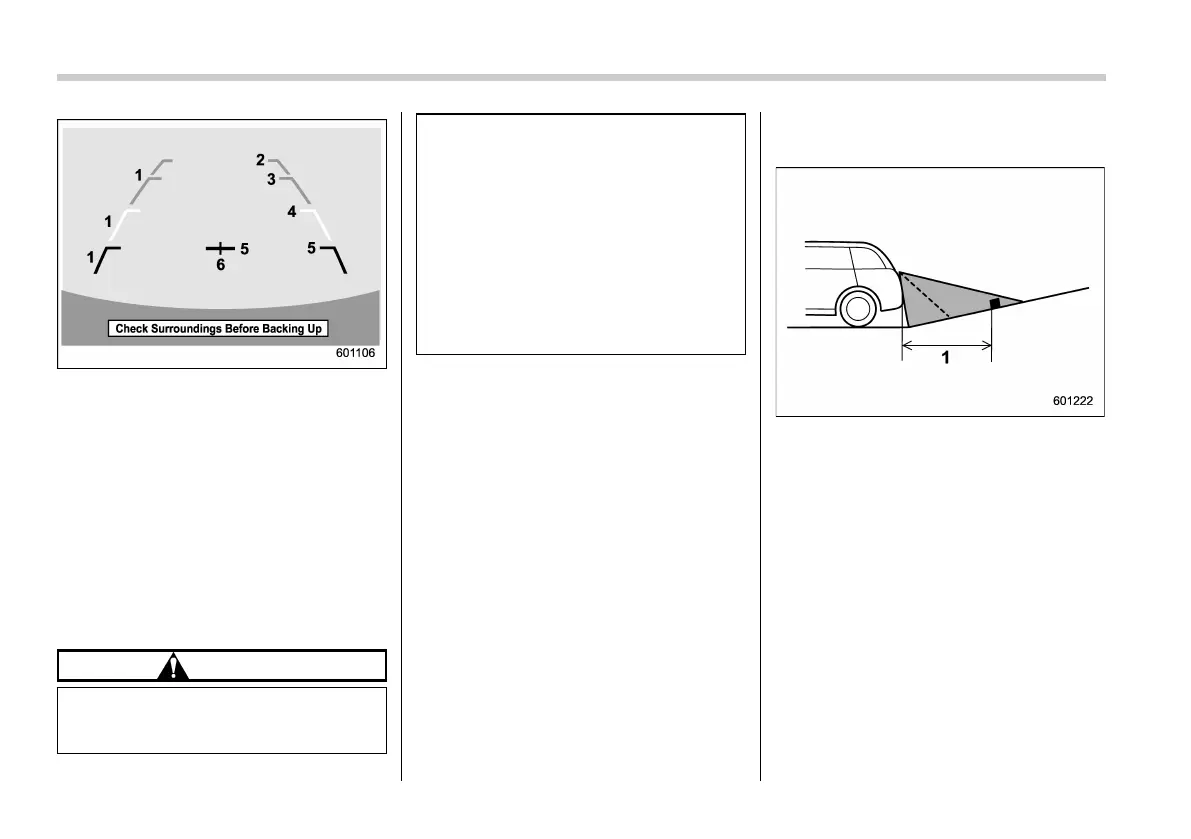

1) Vehicle width line (oblique vertical line)
2) Approx. 3 m (10 feet) from the bumper
(green horizontal line)
3) Approx. 2 m (6.5 feet) from the bumper
(green horizontal line)
4) Approx. 1 m (3 feet) from the bumper
(yellow horizontal line)
5) Approx. 0.5 m (1.5 feet) from the bumper
(red horizontal line)
6) Vehicle centerline
When the shift lever or select lever is set
to position “R”, the monitor screen dis-
plays the help lines together with the rear
view image.
CAUTION
. When moving backward, always
check the back with your eyes
without relying on the help lines.
. The actual position may be dif-
ferent from the indication of the
help lines.
. Differences may occur due to
number of passengers or loaded
cargo.
. When the vehicle is on a slope or
when the vehicle is inclined
against the road, the indication
is different from the actual posi-
tion.
! Difference between screen and ac-
tual road
The distance markers show the distance
for a level road when the vehicle is not
loaded. It may be different from the actual
distance depending on the loading condi-
tions or road conditions.
! When there is an upward slope at
the back
1) 1 m (3 feet)
The distance on the screen looks farther
than the actual distance.
