Sukup Sweepway - Page 60

Parts/Assemblies
60

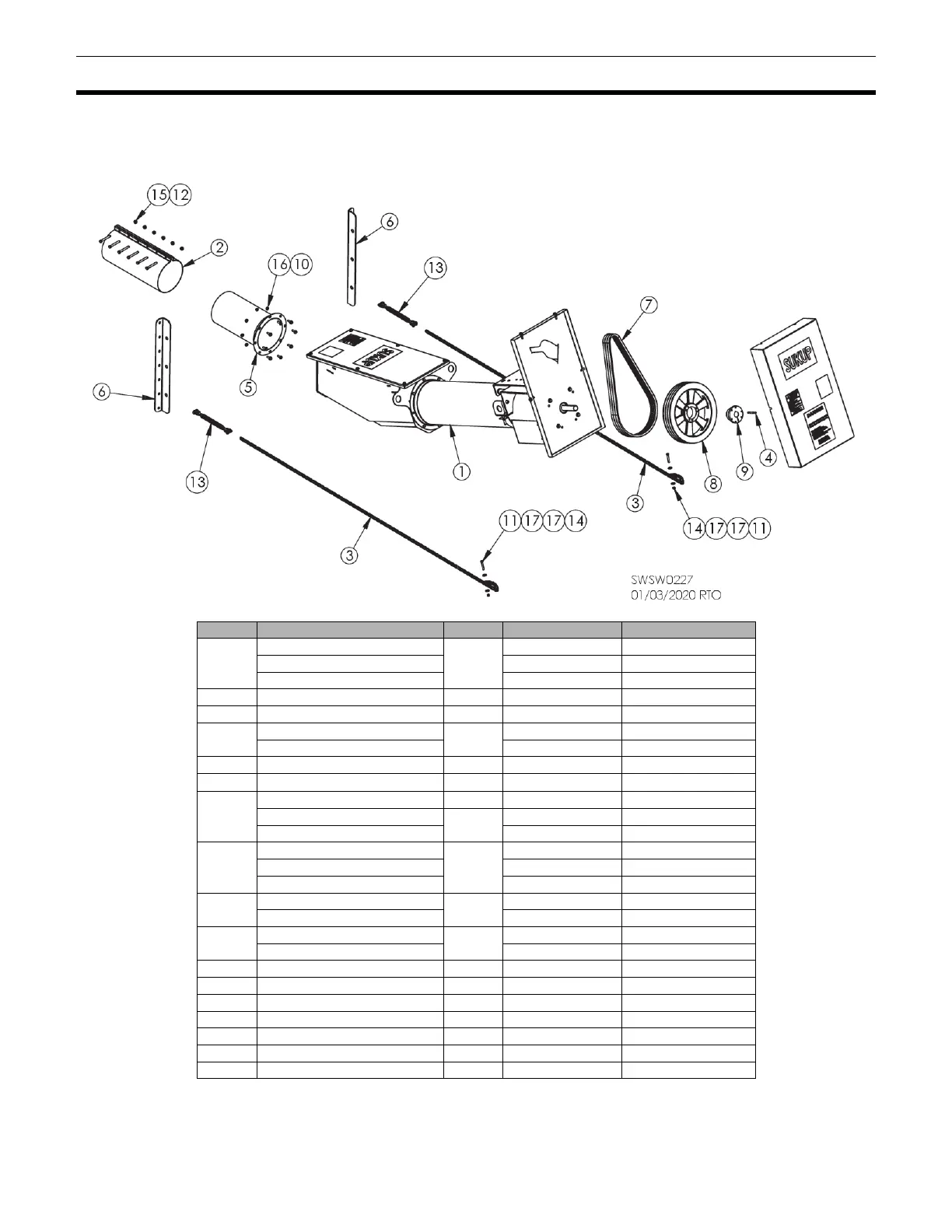

INCLINE AUGER FOR 8” & 10” UNLOAD
8” Unload uses 25°, 8-10” Incline (E5030 – 2-belt; E5031 – 3-belt)
10” Unload uses 20°, 10-12” incline (E5020 – 3-belt)
REF. #
DESCRIPTION
QTY.
8-10” PART #
10-12” PART #
1
Incline, 25°, 2-belt
1
E5042
---
Incline, 25°, 3-belt
E5032
---
Incline, 20°, 3-belt
---
E5010
2
Connector sleeve
1
E5424
E5425
3
Chain, 12’
2
E5579
E5579
4
Key, 1/4” sq. x 2-3/4”
1
E5721
---
Key, 1/2” sq. x 2”
---
D1682
5
Adapter sleeve
1
E59442
E59443
6
Support bracket
2
EU0155
EU0155
7
Belt, BX54
2
J0222
---
Belt, BX56
3
J0238
---
Belt, BX63
---
J0239
8
Pulley, 14”, 2-belt
1
J03951
---
Pulley, 13.6”, 3-belt
J0389
---
Pulley, 15.4”, 3-belt
---
J0396
9
Bushing, 1-1/4” bore, 3-belt
1
J0410
---
Bushing, 2” bore, 3-belt
---
J04310
10
Screw, 5/16 – 18 x 1”
8
J0537
---
Screw, 3/8 – 16 x 1”
---
J0606
11
Screw, 5/16 - 18 x 2”
2
J0585
J0585
12
Screw, 3/8 - 16 x 3”
6
J0660
J0660
13
Turnbuckle, 38” - 16
2
J0875
J0875
14
Lock nut, 5/16”
2
J1003
J1003
15
Flange lock nut, 3/8" – 16
6*
J1017
J1017
16
Whiz nut, 5/16” - 18
8
J1110
---
17
Flat washer, 5/16”
4
J1111
J1111
*QTY. 14 for 10-12”
See following pages for parts breakdowns.
