Sukup Sweepway - Page 81

Parts/Assemblies
81

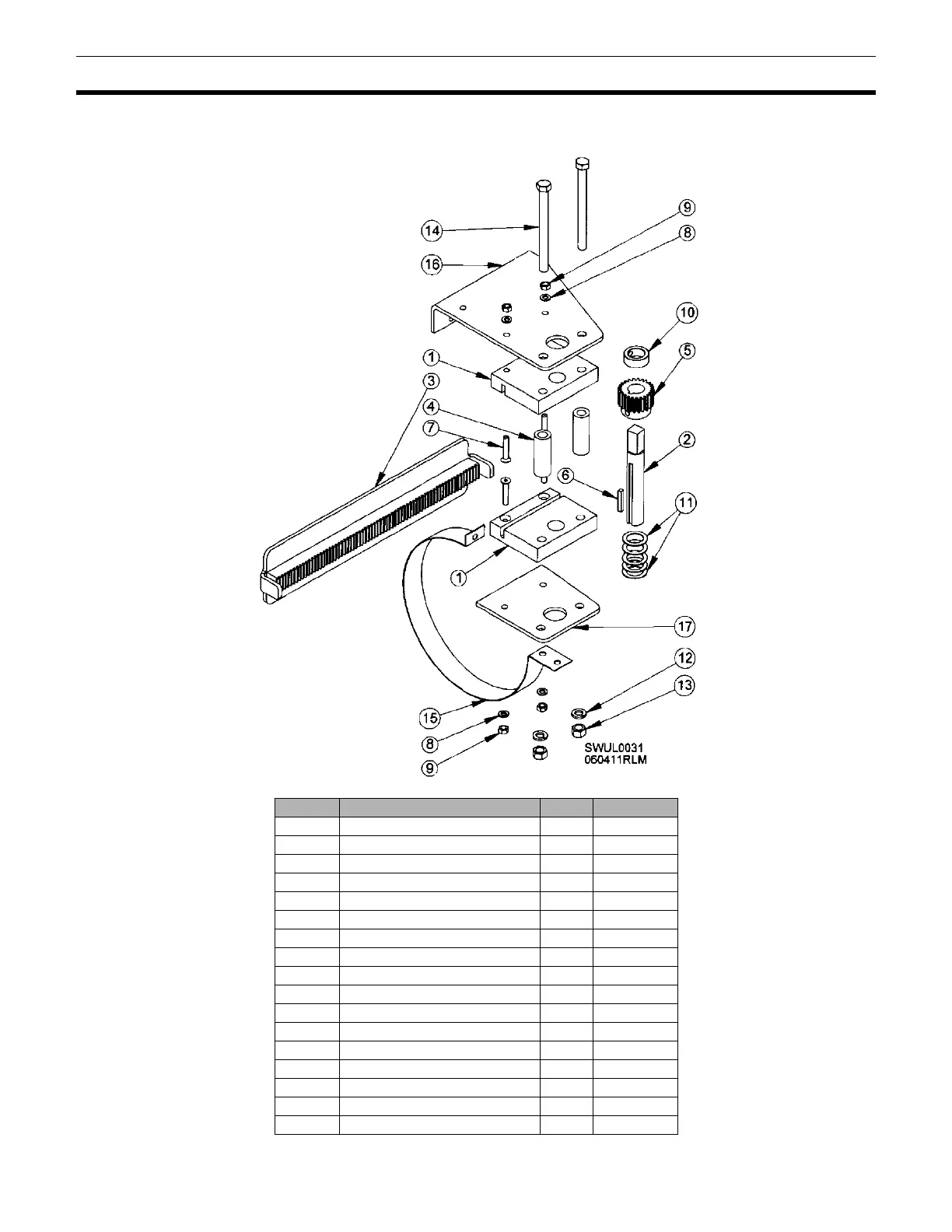

10" SWEEPWAY RACK & PINION OPENER (E5969)
REF. #
DESCRIPTION
QTY.
PART #
1
Slide guide
2
E5962
2
Opener crank shaft
1
E5964
3
Slide plate rack weldment
1
E5963
4
Spacer
2
E5966
5
Pinion gear
1
E5961
6
Key, 1/4 x 1-1/2"
1
E9007
7
Screw, 5/16 – 18 x 1-3/4”
8
J0579
8
Split lock washer, 5/16”
8
J1200
9
Hex nut, 5/16” – 18
8
J1002
10
Shaft collar, 1”
1
J1335
11
Machine bushing, 1”, 18ga
5
J1266
12
Lock washer, 1/2"
2
J1215
13
Hex nut, 1/2" – 13
2
J1040
14
Screw, 1/2 - 13 x 6”
2
J0762
15
Support strap
1
E5968
16
Top frame
1
E5965-02
17
Bottom frame
1
E5965-01
