Seite 17 BB_ENG_991305_04_16
BUDDYBOX Operating Manual

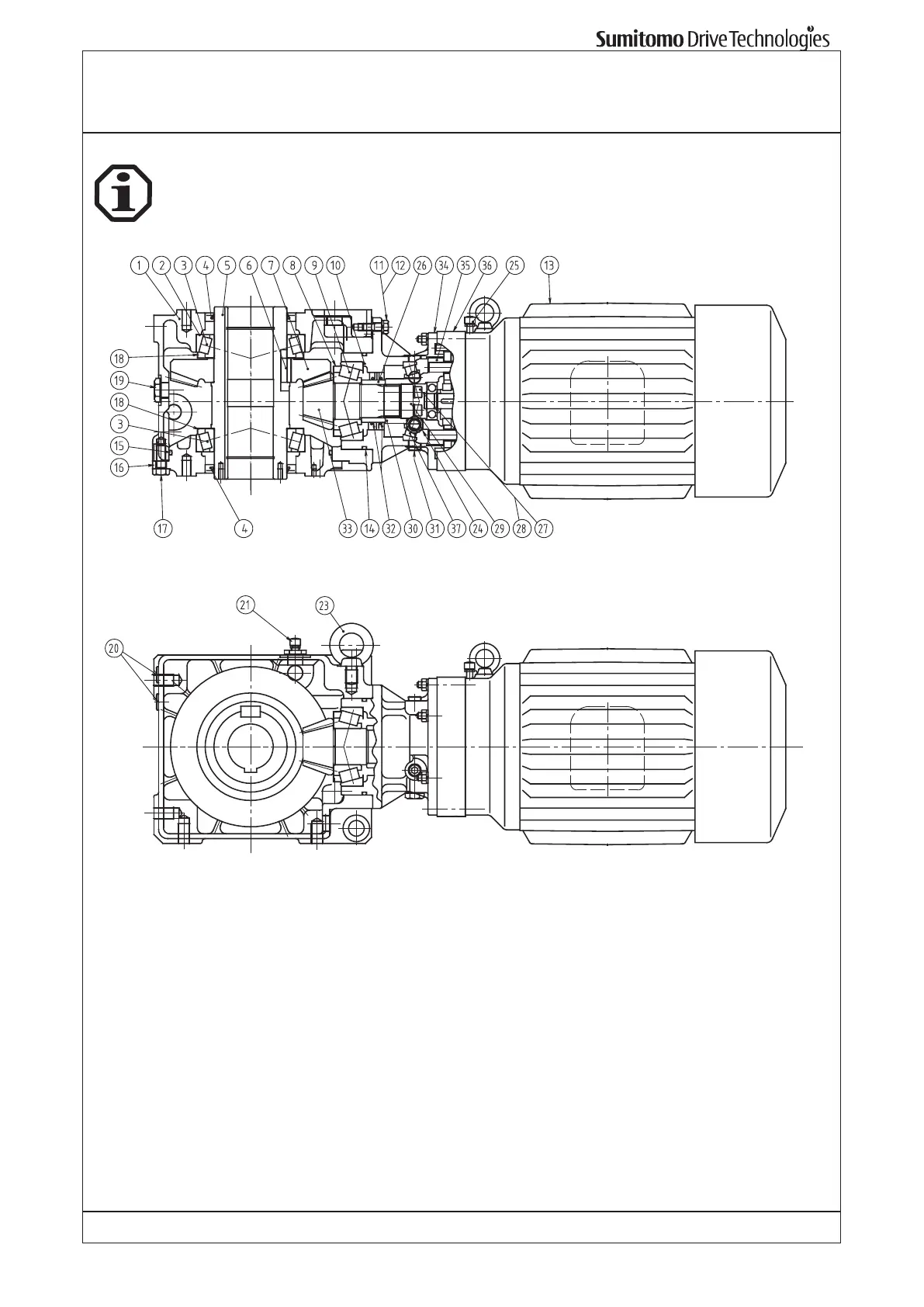

11. Spareparts Bevel Boddybox
1 Casing 13 Motor 26 Collar
2 Shim 14 O-ring 27 llister socket head screw
3 Taper roller bearing 15 O-ring 28 Nord lock washer
4 Oil seal 16 Output cover 29 End plate
5 Hollow output shaft 17 Hex. head bolt 30 Shim
6 Key 18 Nilos ring 31 Hex. socket head plug Oil
7 Bevel gear 19 Oil gauge 32 seal
8 Nilos ring 20 Hex. socket head plug 33 Bevel pinion shaft
9 Taper roller bearing 21 Air breather 34 Flanged casing Pin
10 Shim 23 Eye bolt 35 carrier
11 Hex. head bolt 24 Oil gauge 36 Ring gear housing
12 Spring washer 25 Air breather
