Seite 6 BB_ENG_991305_04_16
BUDDYBOX Operating Manual

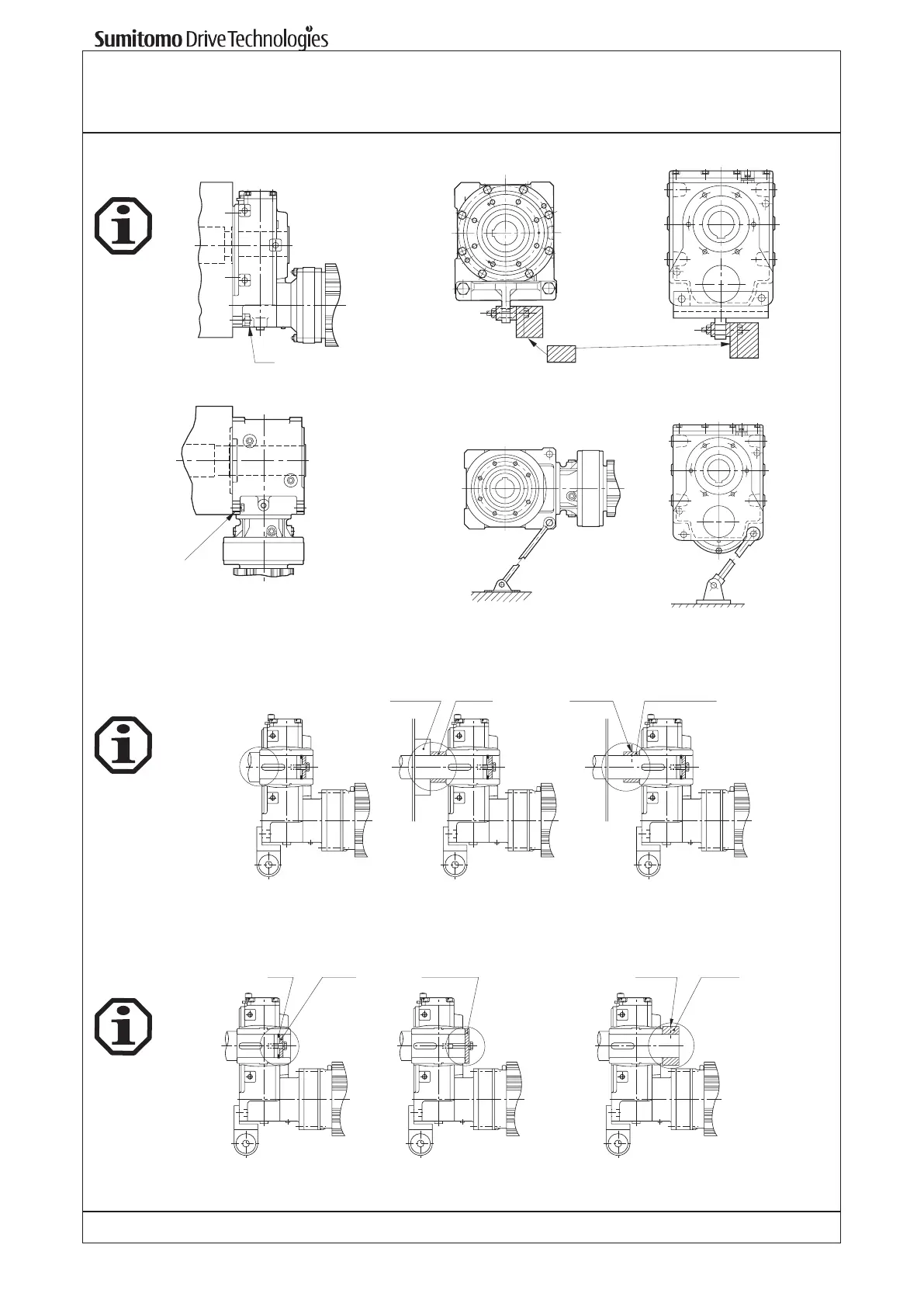

5.5.1 Direct mounting method
Hole in casing.
Use two bolts.
The shaded section schould be prepared by the customer
Hole in casing.
Use two bolts.
5.5.2 Torque arm mounted to customer’s machine
5.5.3 Torque arm Tie-rod type (option)
5.5.4 Buddybox to be secured to driven shaft
5.5.4.1 How to secure Buddybox not to move to the machine side
bearing unit spacer set screw stopper ring
secured by staged shaft secured by spacer(stageless secured by a set screw and a stopper
driven schaft)
5.5.4.2 How to secure Buddybox not to move off from the machine side
snap ring spacer spacer set screw stopper
secured by spacer and a secured by an end plate and secured by a set screw and a stopper
snap ring tightening screw
