6.5 Electrical connection
For technical characteristics and allowable range of application please check rating plate, data
given in this manual or in the catalogue. In case of special applications, the order acknowl-
edgement will give further details. If you have any questions, please contact Sumitomo Cyclo
Europe, indicating type of motor and serial number.
Connect ground wire to this terminal

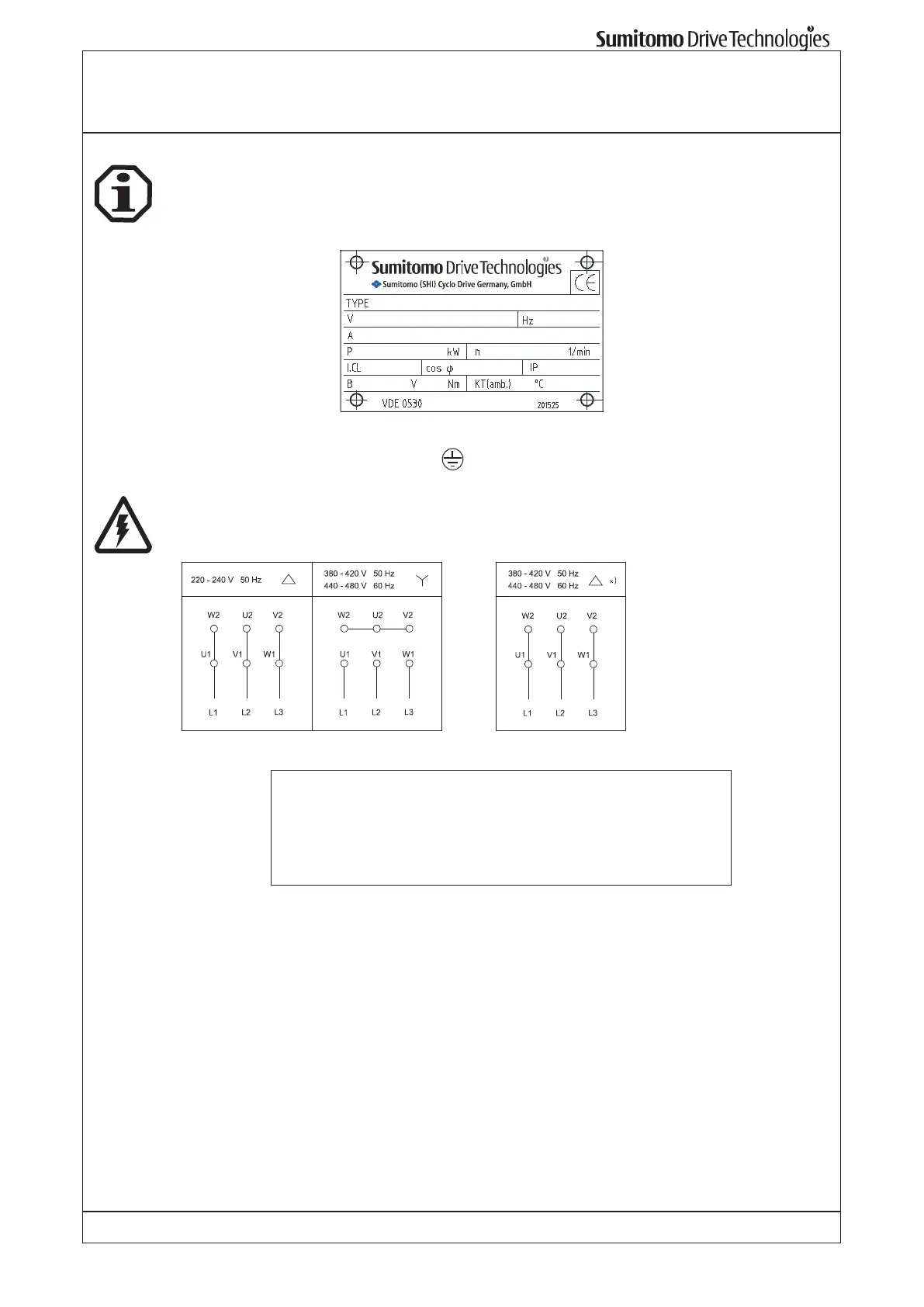

The terminal box shows a circuit diagram. The motors should be connected at the terminal
block according to the main power supply as follows.
Rated operational volt-
age for the voltages
are according to DIN
EN 60 034-1 with ± 5%
tolerance.
Tightening torques for the terminal block bolts:
Connecting bolt thread: tightening torque in Nm
M4 1,2
M5 2,5
M6 4,0
M8 7,5
