BUDDYBOX Operating Manual

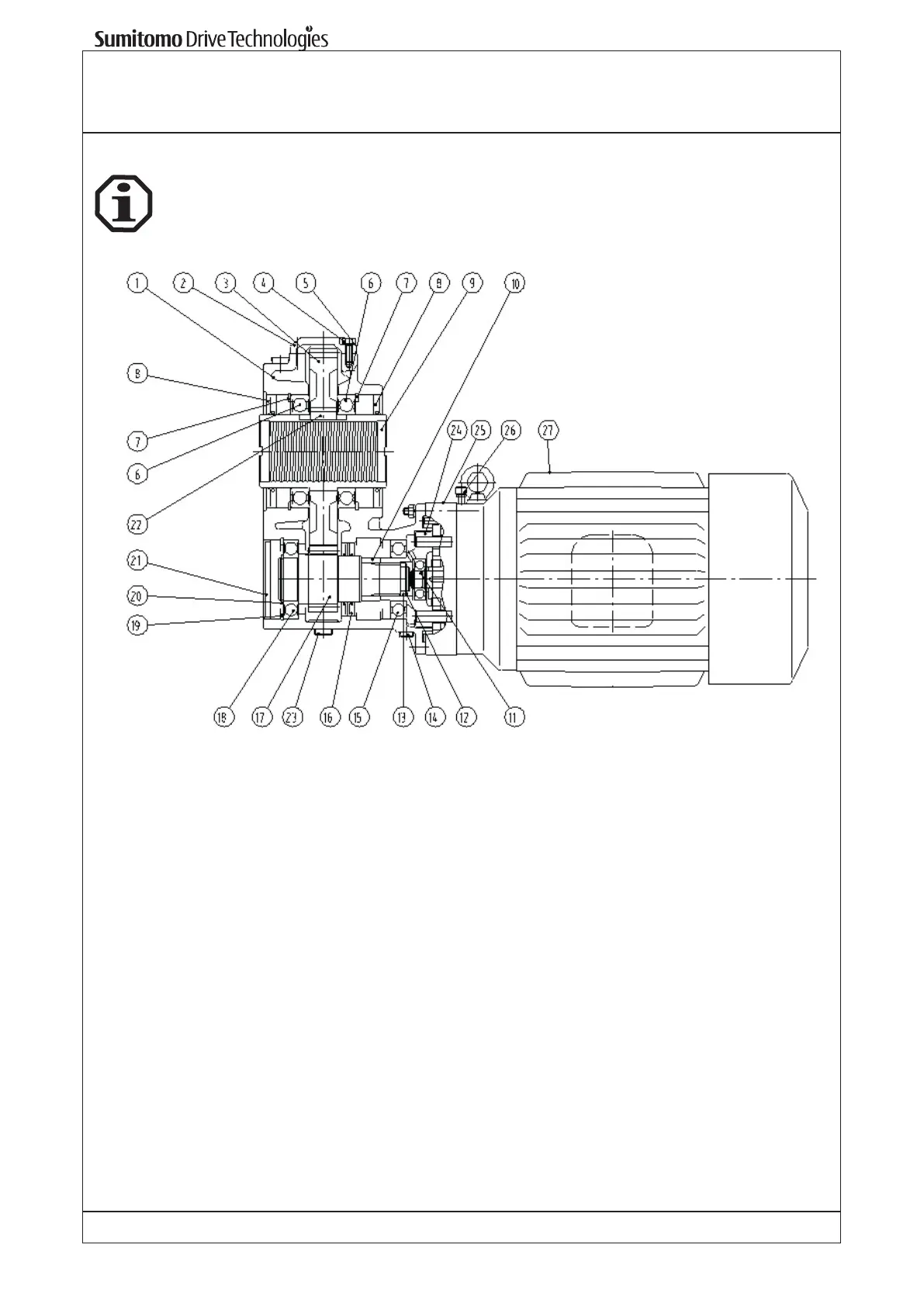

12. Spareparts Helical Boddybox
1 Casing 10 Pinion shaft spacer 19 Retaining ring
2 Cover 11 Motor shaft 20 Retaining ring
3 Gear 12 Retainig ring 21 Seal cap
4 Hex.head bolt 13 Pinion shaft distance 22 Key
5 Spring washer 14 Hex. socket head plug 23 Hex. socket head plug
6 Ball bearing 15 Ball bearing 24 Pin carrier
7 Retaining ring 16 Oil seal 25 Ring gear housing
8 Oil seal 17 Pinion shaft 26 Air breather
9 Taper Grip® output hub 18 Ball bearing 27 Motor
