SummaSign Service Manual

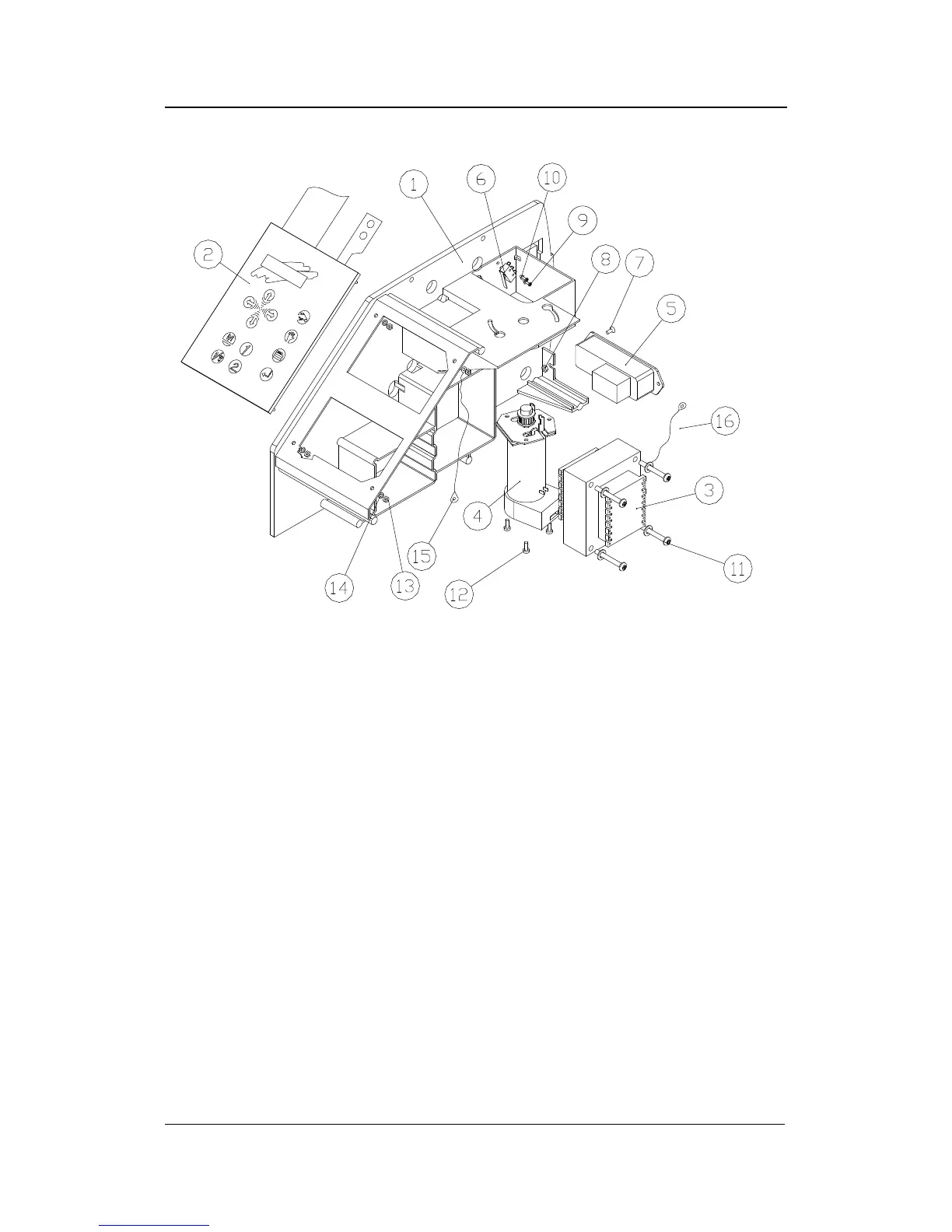

6-2 Figures
1 391-132 plastic endplate right
2 391-168
391-150
assy display PRO-version
assy display
3 421-229 transfo
4 391-344 assy motor with encoder
5 391-346 assy power entry module
6 391-342 assy switc pinch-roller
7 MH0598 screw 6/32
8 MH0071 nut 6/32
9 ND5000-9175 screw M2x10
10 ND5000-9276 flatwasher M2
11 MH1323 screw 10/32
12 MH0899 screw 6/32
13 ND5000-0856 nut M3
14 ND5000-9265 lockwasher M3
15+16 391-361 assy grounding wire
