Figures 6-1
6. FIGURES
This section contains the detailed drawings of several assys of the SummaSign.
There are no detailed drawings of the base, since the base (containing baseplate
assys and the top beam assys) are considered as a whole and may never be
disassembled. If they should ever be taken apart (e.g. heavy transport damage), then
the base has to be reassembled in the factory or by a CalComp technician).

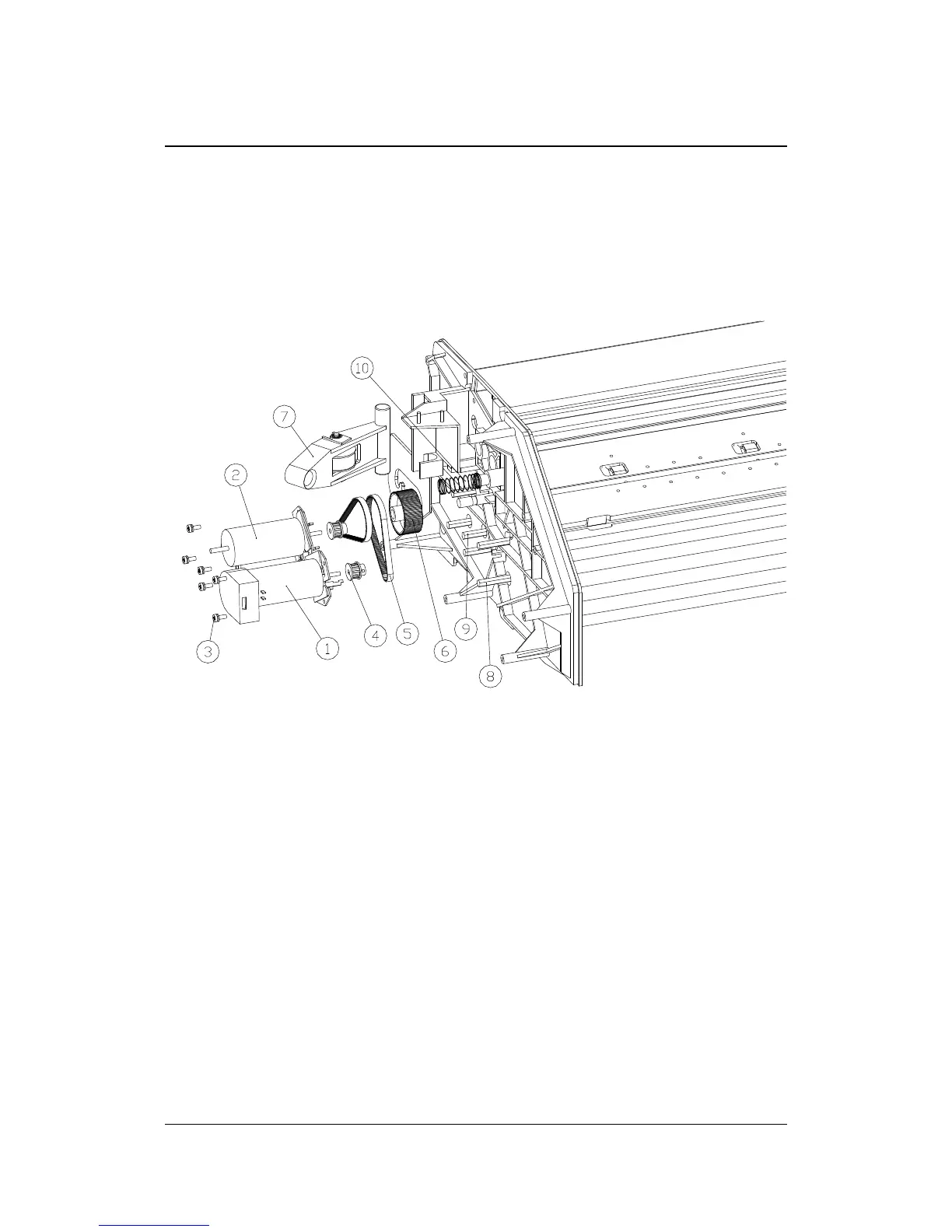

Figures 6-1
1 391-344 assy motor with encoder
2 391-809 assy motor without encoder
3 ND5000-9694 screw M4x10
4 391-198 pulley+setscrew
5 MB9124 belt 110T
6 391-152
421-567
pulley for 2 belts
pulley for 1 belt
7 421-165 assy idler pulley
8 ND5000-9643 standoff M4x40
9 ND5000-9683 standoff M4x30
10 ND5000-9769 spring
