Service Manual SummaSign
3. QUICK TOUR AROUND THE MACHINE
In order to get acquainted with your SummaSign Pro cutter, read the following

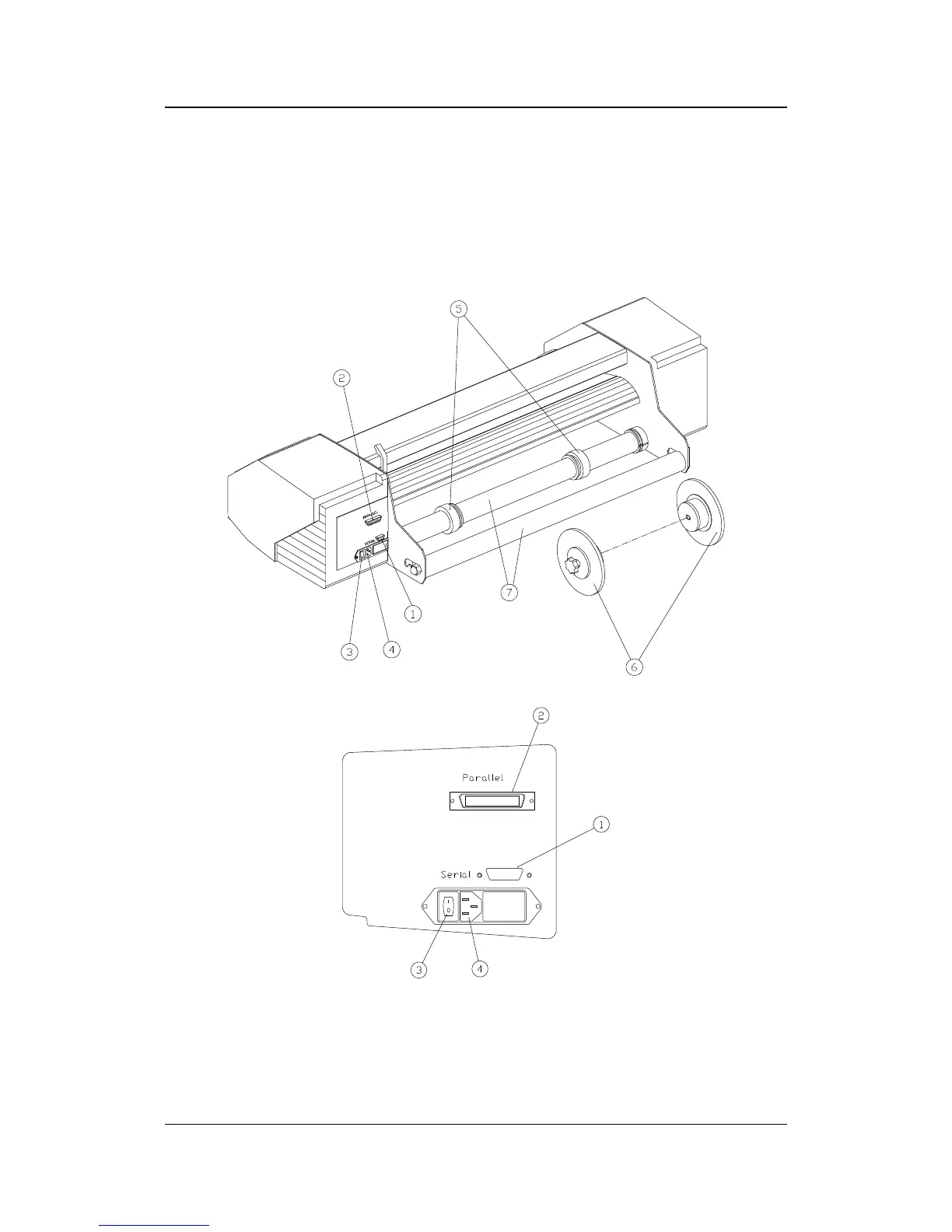

description of the rear panel components. Figure 1-1 shows the location of the main
components.
1. RS-232-C Port : - This DB-9P connector provides the communication link
between the cutter and a host computer. It allows bidirectional communication
between the host computer and the cutter.
Introduction I-3
