SummaSign Service Manual

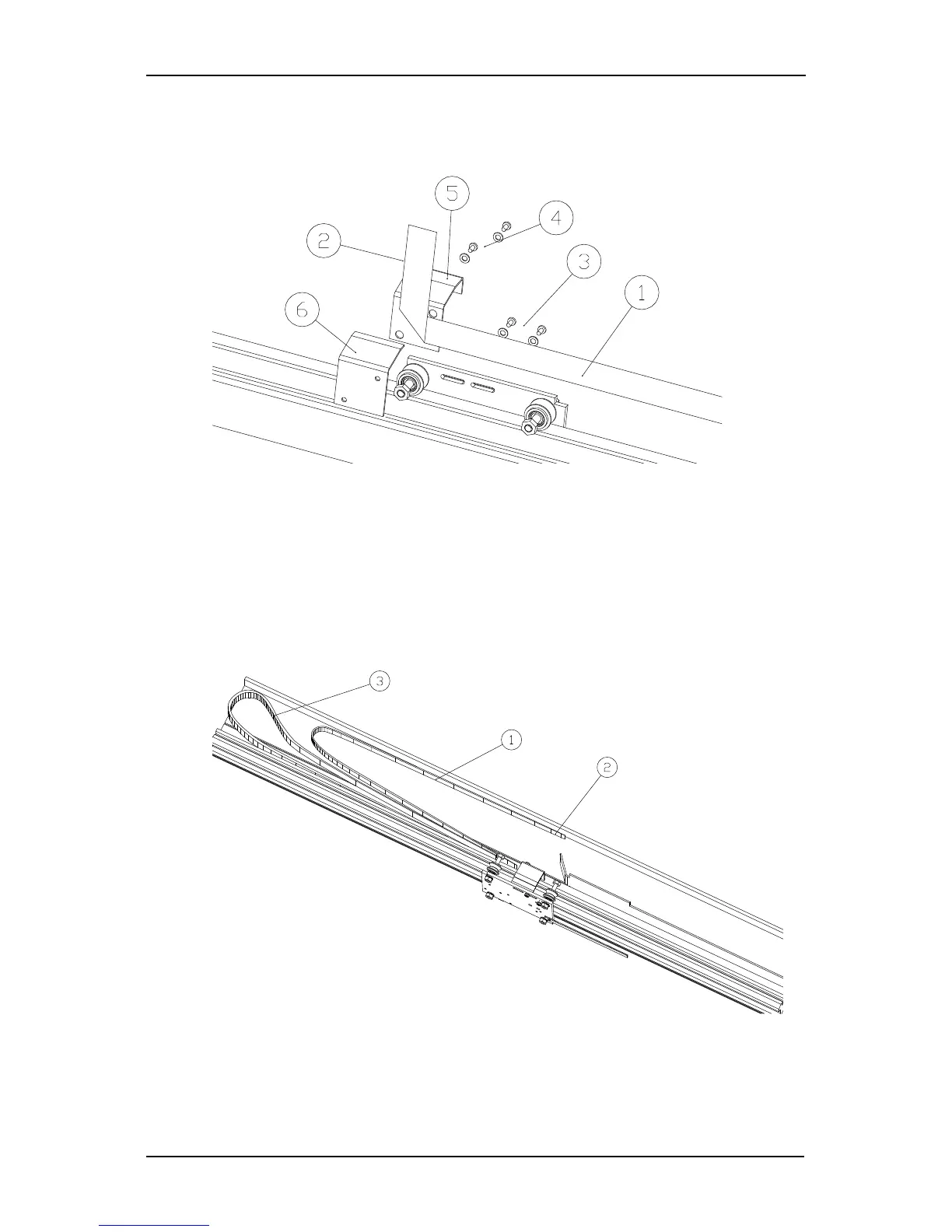

2-26 Replacements Guidelines
1 additional strip
2 glued for about 2cm
3 flatcable
1 flatcable
2
this edge is 110mm
3 screw to hold flatcable holder
4 screws to hold flatcable clamp
5 flatcable holder
6 flatcable clamp
