INSTALLATION, OPERATION, AND MAINTENANCE MANUAL
10 SUMMIT PUMP MODEL CCFM GENERAL PURPOSE
7. Build a plywood form around baseplate supported on the sub base. It should be 3” high and 1”
to 1.5” larger than the baseplate. Its size should be large enough to include the shims or
wedges that are left in place.
8. Use a high quality non-shrinking epoxy grout, following manufacturer’s mixing and
installation instructions.
9. When grout has cured, per grout manufacturer’s recommended cure time, tighten anchor bolts
till secure.
10. When grouting is complete, check coupling alignment and re-align as necessary.
6.6 ROTATION AND ORIENTATION
6.6.1 Rotation
CCFM pumps can only be operated in a
clockwise rotation (as viewed from the driver).
If accidently operated in a counter-clockwise
direction, lock out pump and motor to remove
the casing. Ensure the impeller bolt is still
torqued correctly. Reassemble and adjust motor
wiring to rotate clockwise.
Lock out driver power before beginning to
work on pump.
6.6.2 Orientation
The casing can be rotated through incremental angles of a full revolution. The angles depend on
the quantity of casing bolts for the particular pump size.

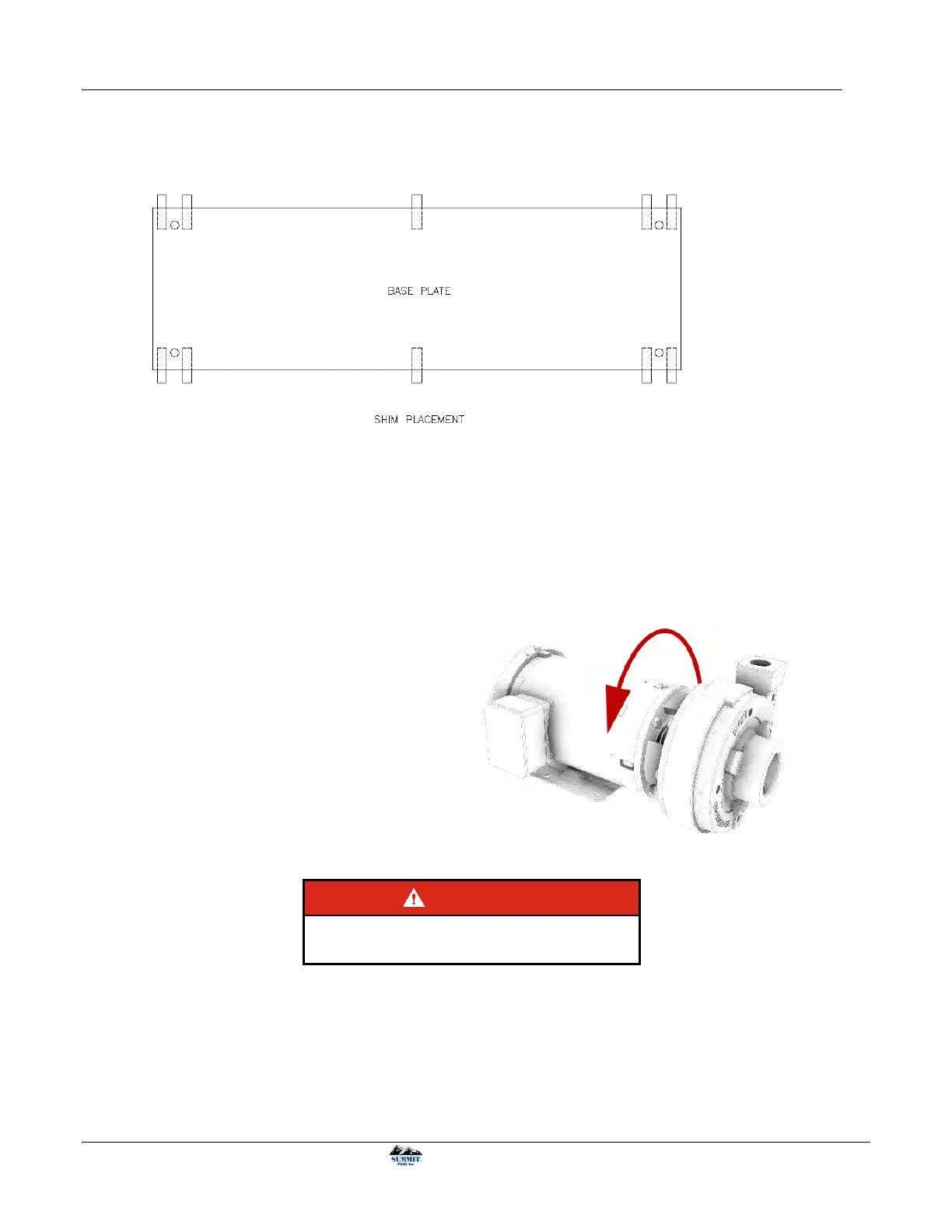

Figure 6-4: Correct pump rotation
Figure 6-3: Wedge Locations
