INSTALLATION, OPERATION, AND MAINTENANCE MANUAL
18 SUMMIT PUMP MODEL CCFM GENERAL PURPOSE
10.2 FM1 Stainless

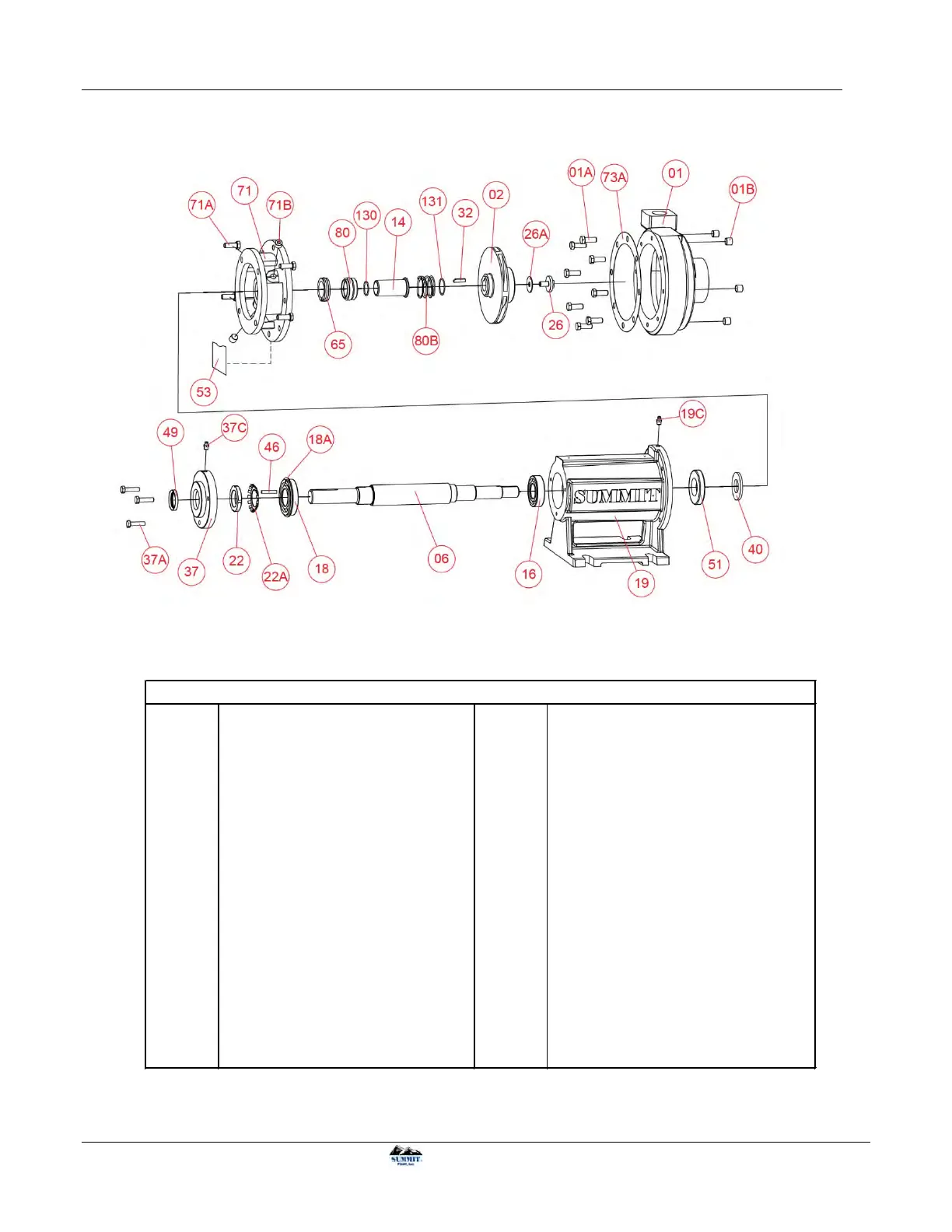

Figure 10-2: Itemized parts image for FM1 Stainless
Table 10-2: Itemized parts list for FM1 Stainless
01 Casing 37 Bearing Cover
01A Bolt, Casing 37A Bolt, Bearing Cover
01B Plug, Casing 40 Deflector
02 Impeller 46 Coupling Key
06 Shaft 49 Lip Seal, Outboard
14 Shaft Sleeve 51 Lip Seal, Inboard
16 Bearing, Inboard ***53
Case Support (not to scale)
18 Bearing, Outboard 65 Mechanical Seal, Stationary Element
18A Bearing, Retaining Ring 71 Adaptor
19 Frame 71A Bolt, Adaptor to Frame
19C Grease Fitting, Frame 71B Plug, Adaptor
22 Bearing Lock Nut 73A Casing Gasket
22A Bearing Lock Washer 80 Mechanical Seal, Rotating Element
26 Impeller Bolt 80B Mechanical Seal, Spring
26A Gasket, Impeller Bolt 130 Shaft Sleeve O-Ring
32 Impeller Key 131 Impeller Sleeve O-Ring
***Used on 6x8-12G only
