Summit CC - CC1 &CC2 Cast Iron;Bronze, CC2 Stainless

INSTALLATION, OPERATION, AND MAINTENANCE MANUAL
SUMMIT PUMP MODEL CCFM GENERAL PURPOSE 19
10.3 CC1 &CC2 Cast Iron/Bronze, CC2 Stainless

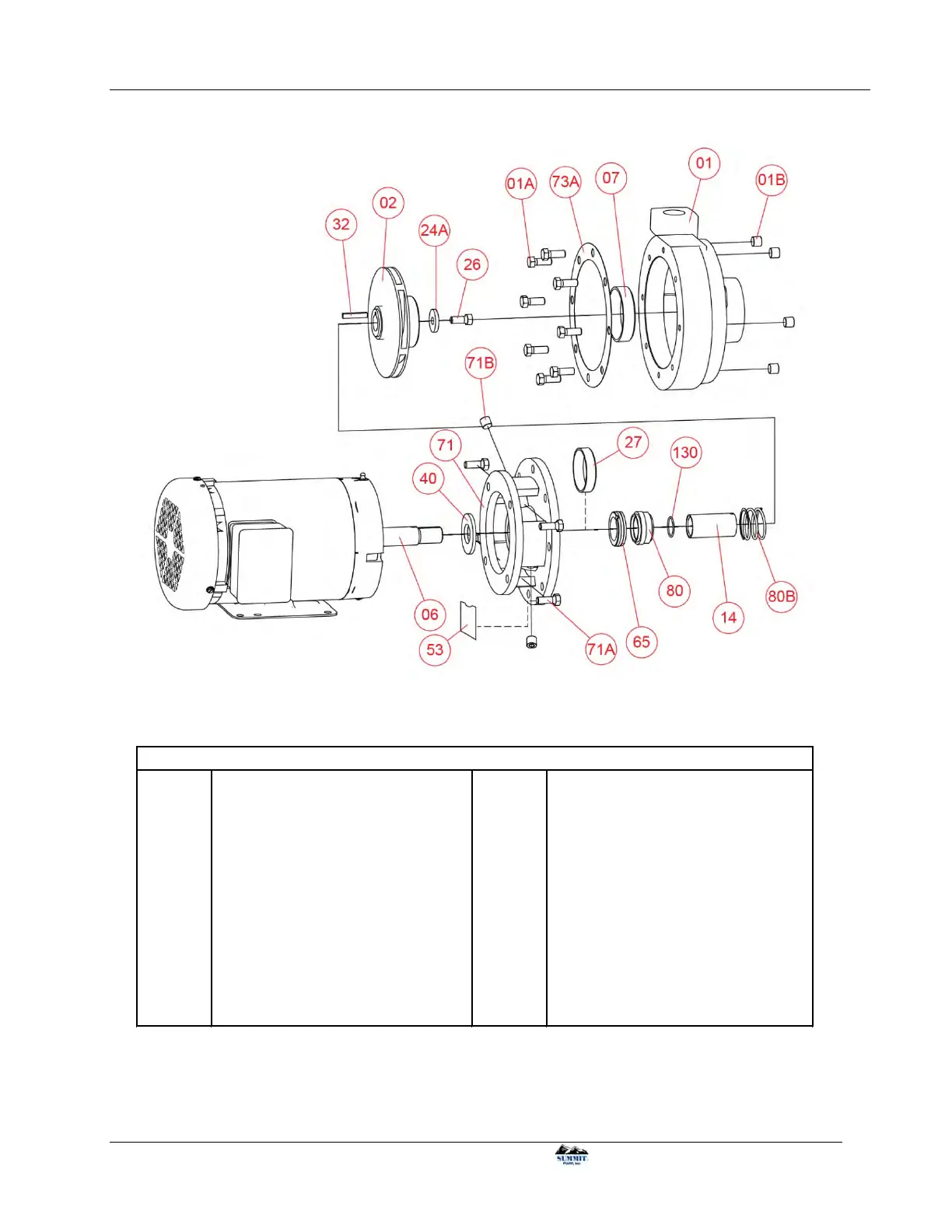

Figure 10-3: Itemized parts image for CC1 & CC2 Cast Iron/Bronze and CC2 Stainless
Table 10-3: Itemized parts list for CC1 & CC2 Cast Iron/Bronze and CC2 Stainless
01 Casing 32 Impeller Key
01A Bolt, Casing 40 Deflector
01B Plug, Casing ***53
Case Support (not to scale)
02 Impeller 65 Mechanical Seal, Stationary Element
06 Shaft/Motor 71 Adaptor
*07 Casing Ring 71A Bolt, Adaptor to Frame
14 Shaft Sleeve 71B Plug, Adaptor
24A Impeller Washer 73A Casing Gasket
26 Impeller Bolt 80 Mechanical Seal, Rotating Element
**27 Adaptor Ring 80B Mechanical Seal, Spring
130 Shaft Sleeve O-Ring
*For Cast Iron/Bronze only
**Cast Iron/Bronze Only on CC & F2: 2.5x3-8, 3x4-8A @ 3600 RPM and 4x5-7, 4x5-12A, 5x6-12
***Used on 6x8-12G only
CC1 & CC2 CAST IRON/BRONZE, CC2 Stainless
