INSTALLATION, OPERATION, AND MAINTENANCE MANUAL
SUMMIT PUMP MODEL CCFM GENERAL PURPOSE 17
10 EXPLODED VIEWS
Use below figures and tables with respect to identify item numbers.
10.1 FM1 & FM2 Cast Iron/Bronze, FM2 Stainless

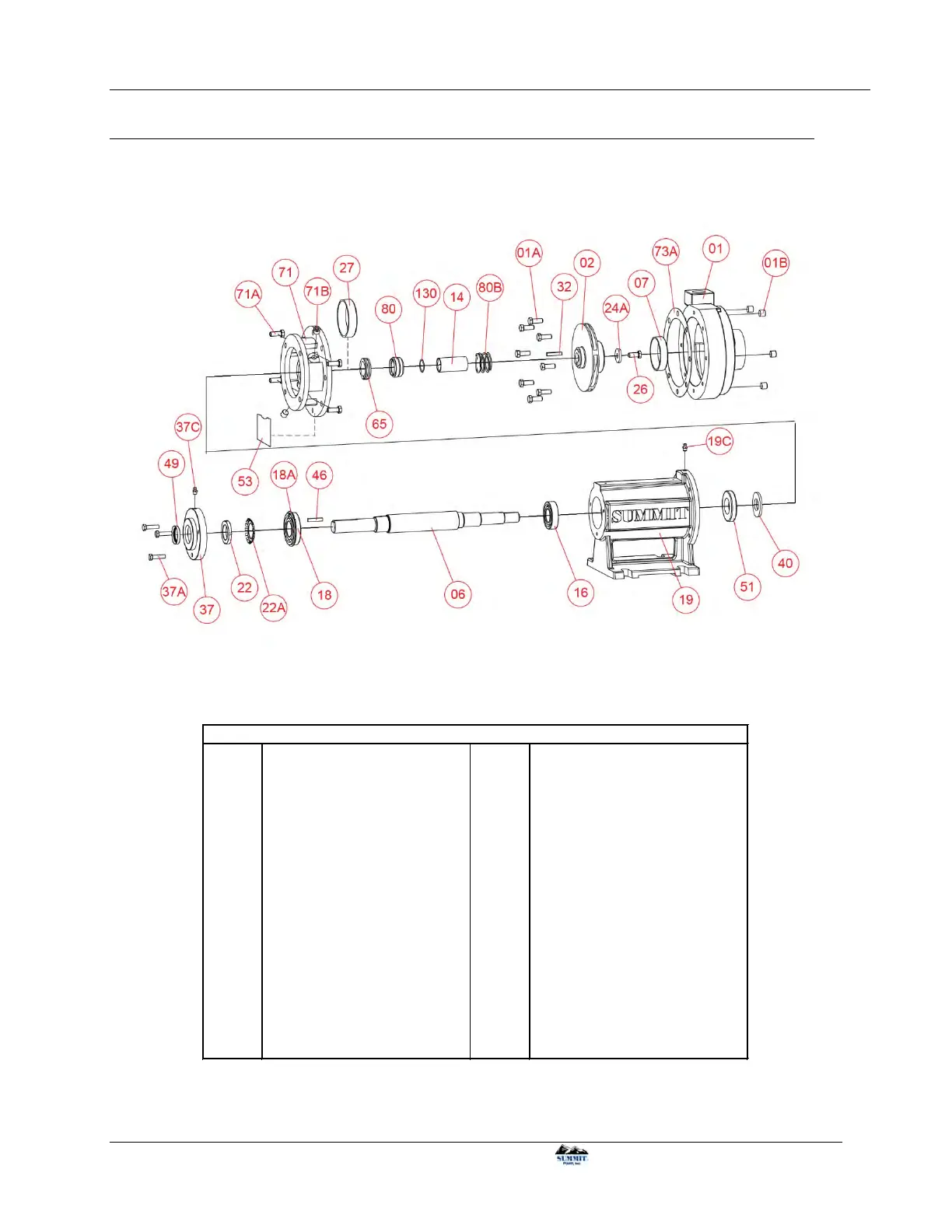

Figure 10-1: Itemized parts imaged for FM1 & FM2 Cast Iron/Bronze and FM2 Stainless Pumps
Table 10-1: Itemized parts listed for FM1 & FM2 Cast Iron/Bronze and FM2 Stainless Pumps
01 Casing **27 Adaptor Ring
01A Bolt, Casing 32 Impeller Key
01B Plug, Casing 37 Bearing Cover
02 Impeller 37A Bolt, Bearing Cover
06 Shaft 40 Deflector
*07 Casing Ring 46 Coupling Key
14 Shaft Sleeve 49 Lip Seal, Outboard
16 Bearing, Inboard 51 Lip Seal, Inboard
18 Bearing, Outboard ***53
Case Support
(not to scale)
18A Bearing, Retaining Ring 65 Mechanical Seal, Stationary Element
19 Frame 71 Adaptor
19C Grease Fitting, Frame 71A Bolt, Adaptor to Frame
22 Bearing Lock Nut 71B Plug, Adaptor
22A Bearing Lock Washer 73A Casing Gasket
24A Impeller Washer 80 Mechanical Seal, Rotating Element
26 Impeller Bolt 80B Mechanical Seal, Spring
130 Shaft Sleeve O-Ring
*For Cast Iron/Bronze only
**Cast Iron/Bronze Only on CC & F2: 2.5x3-8, 3x4-8A @ 3600 RPM and 4x5-7, 4x5-12A, 5x6-12
***Used on 6x8-12G only
FM1 & FM2 CAST IRON/BRONZE, FM2 Stainless
