Summit CC - CC1 Stainless

INSTALLATION, OPERATION, AND MAINTENANCE MANUAL
20 SUMMIT PUMP MODEL CCFM GENERAL PURPOSE
10.4 CC1 Stainless
Table 10-4: Itemized parts list for CC1 Stainless

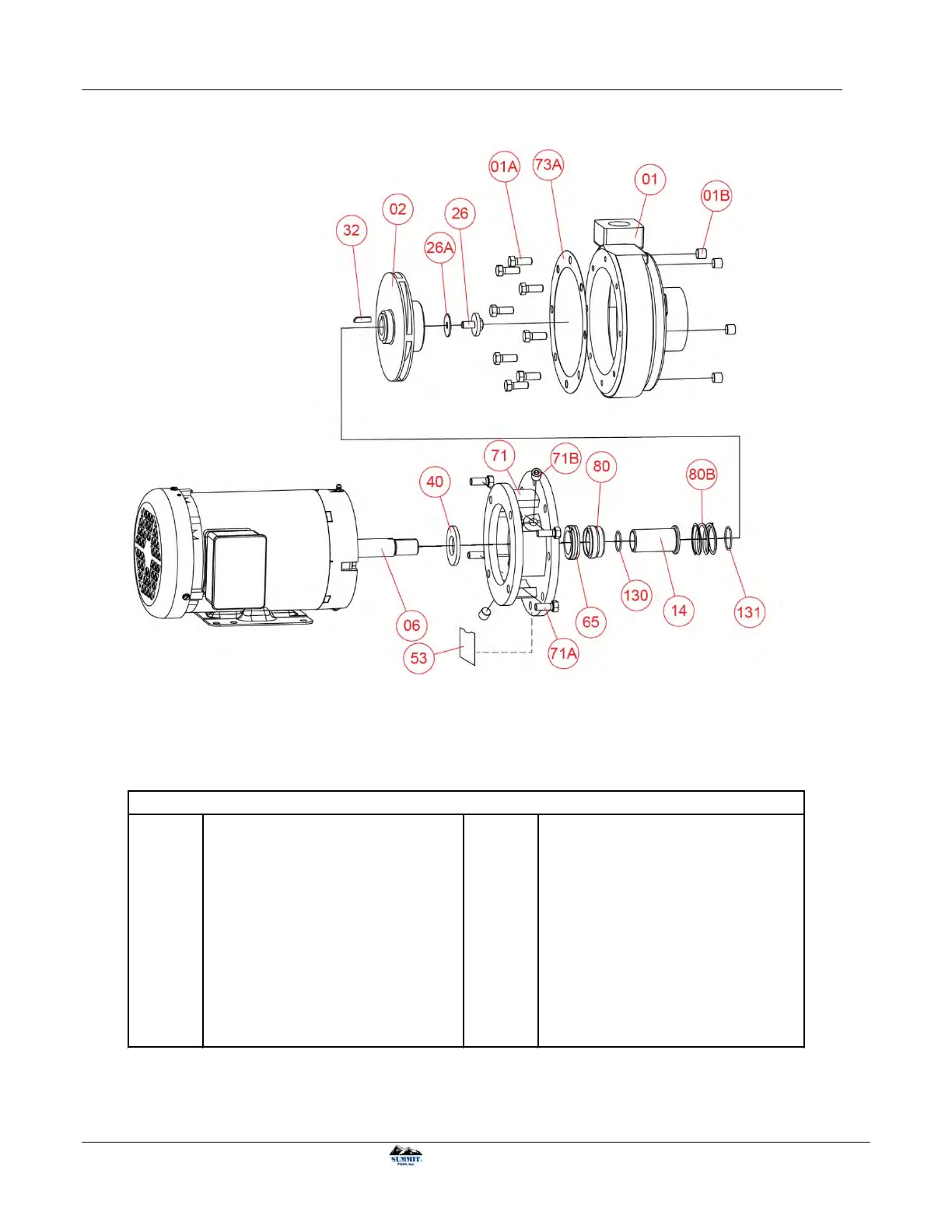

Figure 10-4: Itemized parts image for CC1 Stainless
01 Casing ***53
Case Support (not to scale)
01A Bolt, Casing 65 Mechanical Seal, Stationary Element
01B Plug, Casing 71 Adaptor
02 Impeller 71A Bolt, Adaptor to Frame
06 Shaft/Motor 71B Plug, Adaptor
14 Shaft Sleeve 73A Casing Gasket
26 Impeller Bolt 80 Mechanical Seal, Rotating Element
26A Gasket, Impeller Bolt 80B Mechanical Seal, Spring
32 Impeller Key 130 Shaft Sleeve O-Ring
40 Deflector 131 Impeller Sleeve O-Ring
***Used on 6x8-12G only
CC1 Stainless Steel
