26 SUMMIT PUMP MODEL CCFM GENERAL PURPOSE
Table 12-1: Cross reference table for pump cross sections
Pump Configurations
Reference Figure
FM1 Cast Iron/Bronze
Figure 12-2
FM1 Stainless Steel
Figure 12-1
CC1 Cast Iron/Bronze
Figure 12-2
CC1 Stainless Steel
Figure 12-1
FM2 Cast Iron/Bronze
Figure 12-2
FM2 Stainless Steel
Figure 12-2
CC2 Cast Iron/Bronze
Figure 12-2
CC2 Stainless Steel
Figure 12-2

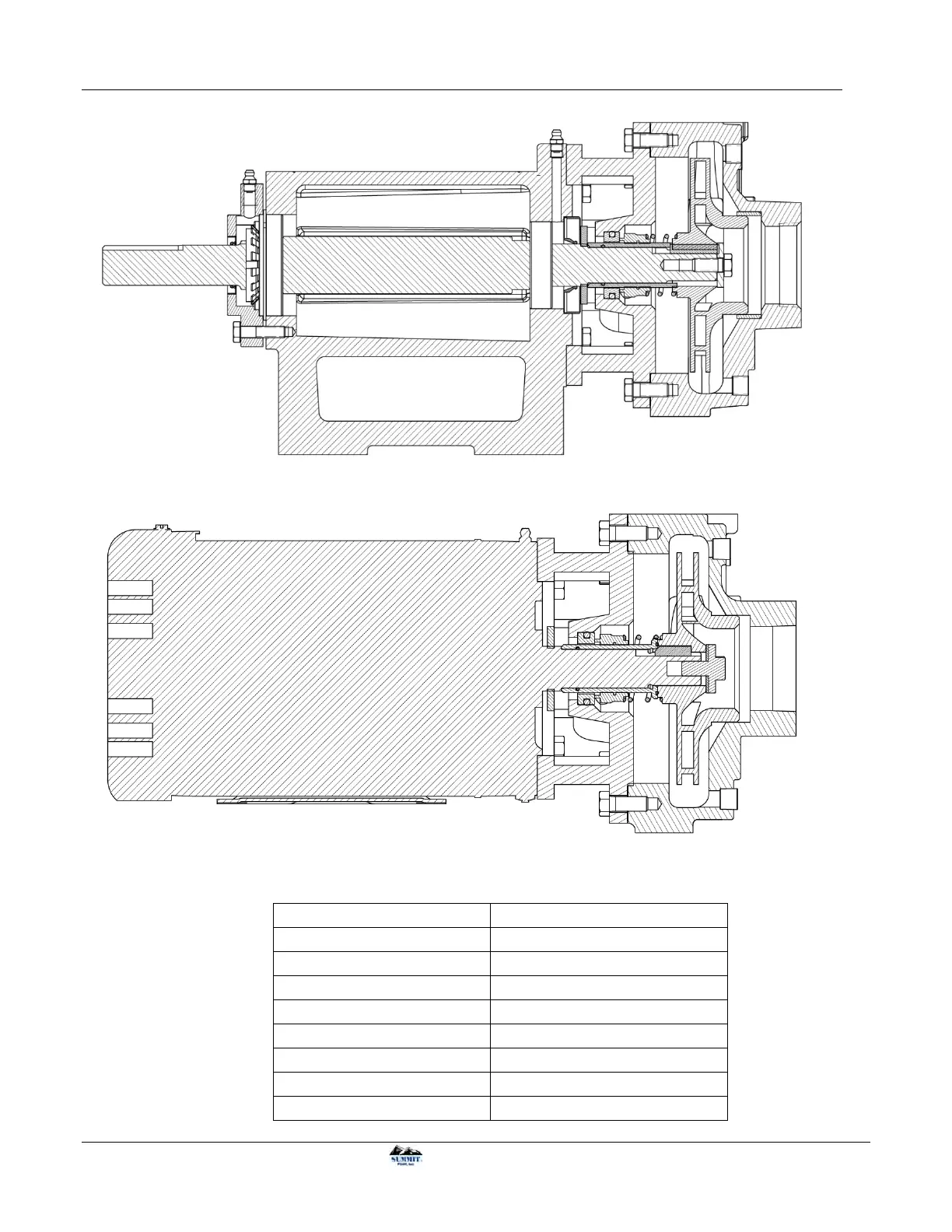

Figure 12-1: Cast Iron/Bronze cross section (non-sealed shaft)
Figure 12-2: Stainless Frame 1 cross section (sealed shaft)
