Chapter 1 Introduction 1-3
multimode port, one general purpose asynchronous serial port and one serial
management port, and two independent USB hubs. I/O expansion is provided via
one PCI card slot, supporting both 33 MHz and 66 MHz cards.

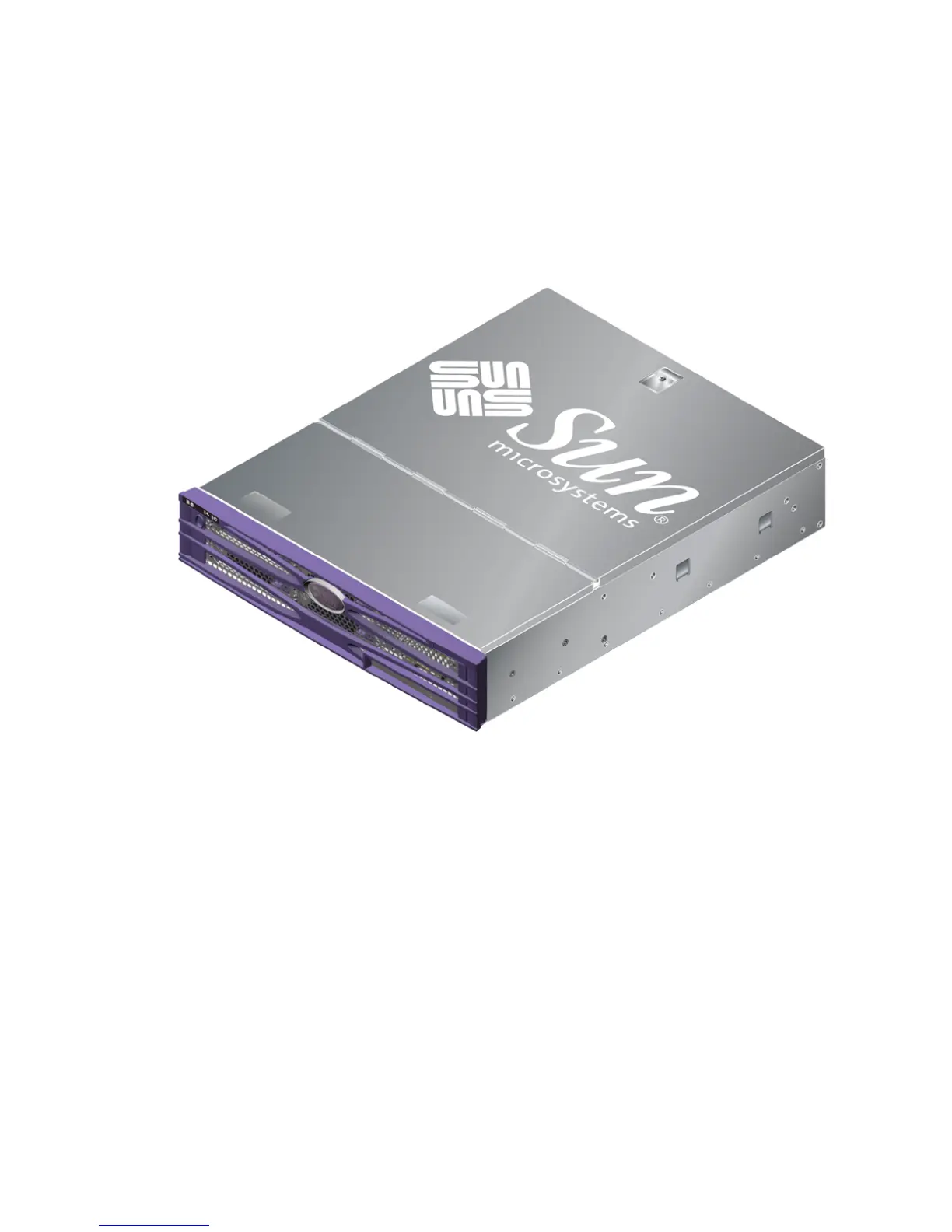

FIGURE 1-2 Sun Fire V240 Server
1.1.2 Sun Fire V240 Server
The Sun Fire V240 server is a commercial grade server in a 2U high package. It uses
the UltraSPARC IIIi processor and can be configured with either one or two
processors.
The Sun Fire V240 server is AC powered only with dual redundant, hot-swap PSUs.
Server depth enables mounting in a standard 800 mm deep rack. Storage is provided
by four hot-swappable disk drives, and an optional non hot-swappable slimline
DVD drive. Built-in I/O network functionality is provided by four Gigabit Ethernet
channels, one Ultra160 SCSI multimode port, one general purpose asynchronous
