Chapter 4 Installing Optional Workstation Hardware 47

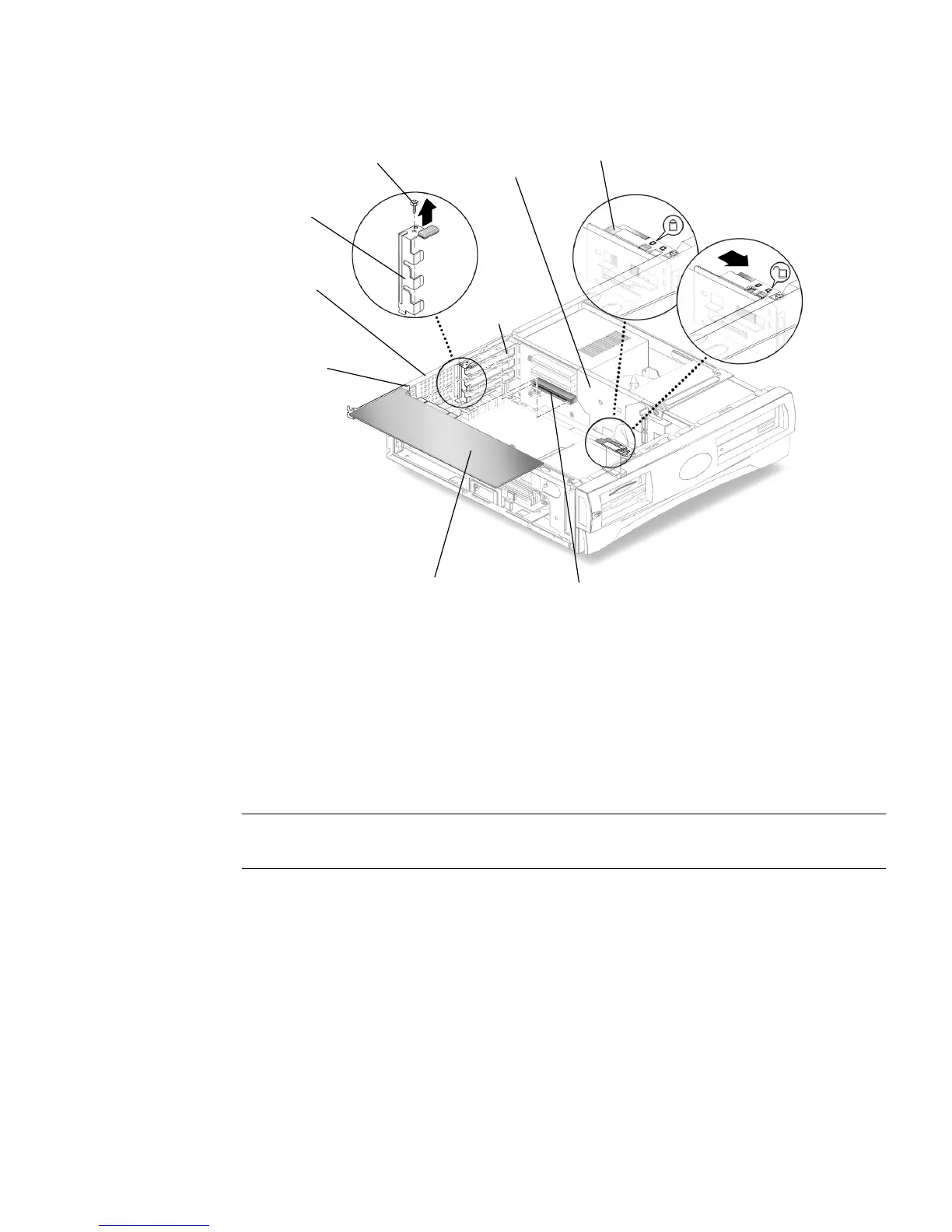

FIGURE 4-8 Installing a PCI Card or Graphics Accelerator
3. Lift the PCI card bracket retainer from the chassis and set it aside.
4. Align the PCI card or graphics accelerator with an empty connector on the riser
board.
5. Guide the PCI card or graphics accelerator bracket tab into the PCI filler panel.
Note – Install dual-height PCI cards or graphics accelerator boards in PCI connector
J1. If you need to install an additional PCI card, install it in PCI connector J5.
6. At the two corners of the PCI card or graphics accelerator, push the PCI card
straight into the connector on the riser board until the PCI card or graphics
accelerator is fully seated.
7. Replace the PCI card bracket retainer (
FIGURE 4-8).
Ensure that the bottom tab seats in the bracket receiver. Ensure that the bracket
closes over the bracket tabs of all installed PCI cards.
8. Replace the screw that secures the PCI card bracket retainer to the chassis.
Screw
PCI card
bracket
retainer
PCI card or graphics
accelerator
Riser board
PCI card guide
Connector(3)
Bracket tab
Filler panel
Chassis
