52 Sun Blade 150 Getting Started Guide • June 2002

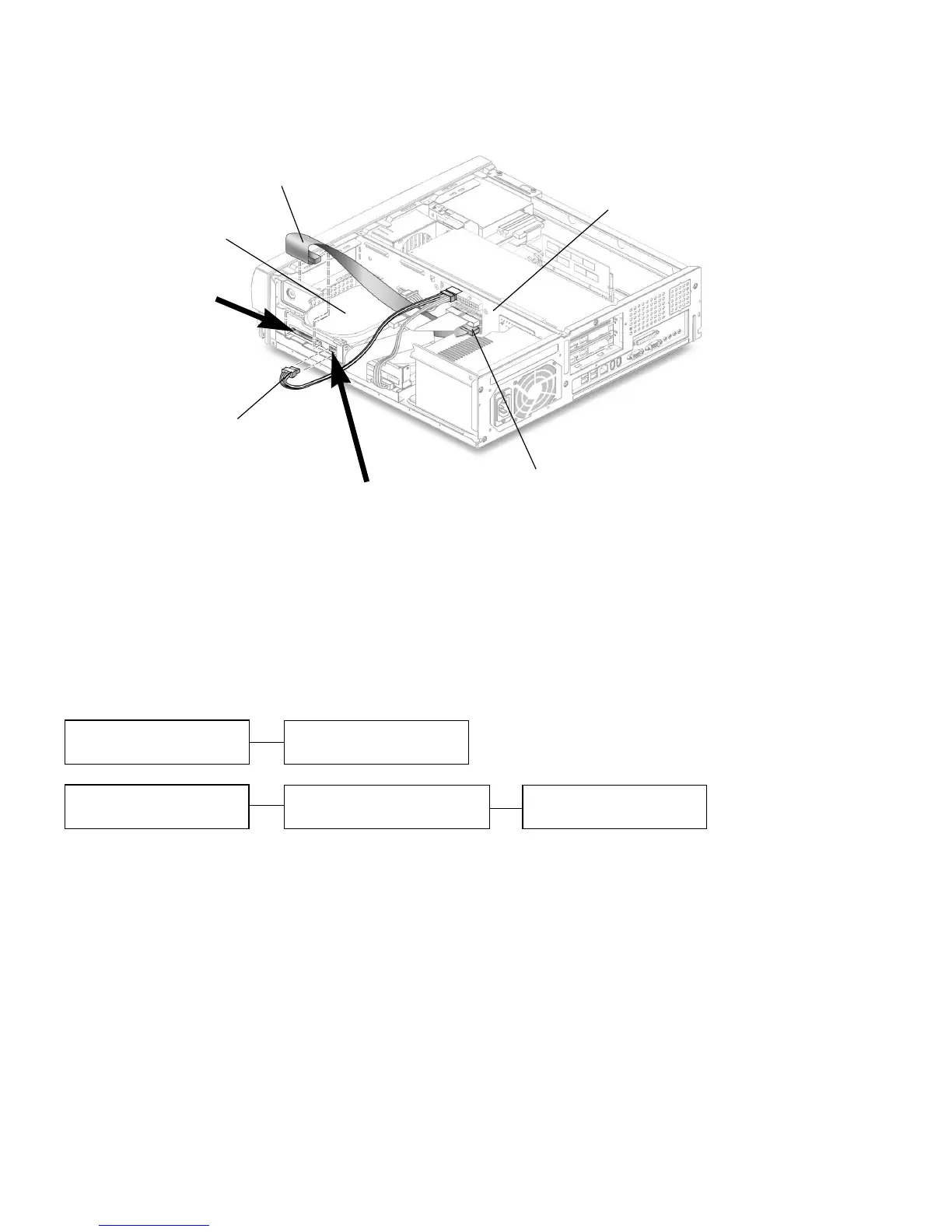

FIGURE 4-12 Reconnecting the Secondary Hard Drive Cables
12. Connect the secondary hard drive power cable to the secondary hard drive
(
FIGURE 4-12).
The following diagram shows the cabling path between connectors J503 and J504 on
the riser board and both primary and secondary hard drives. Use this diagram to
help you route the primary and secondary data cables.
13. Continue with “Finishing Component Installation” on page 53.
Connector
J503
Secondary hard drive
data cable connected
here
Secondary hard drive
power cable
Riser board
Secondary hard drive power cable
connected here
Secondary hard drive
Secondary hard drive
data cable
Connector J503 on the
riser board (IDE 2)
Connector J504 on the
riser board (IDE 1)
Primary hard drive
CD-ROM/DVD-ROM drive
Secondary hard drive
