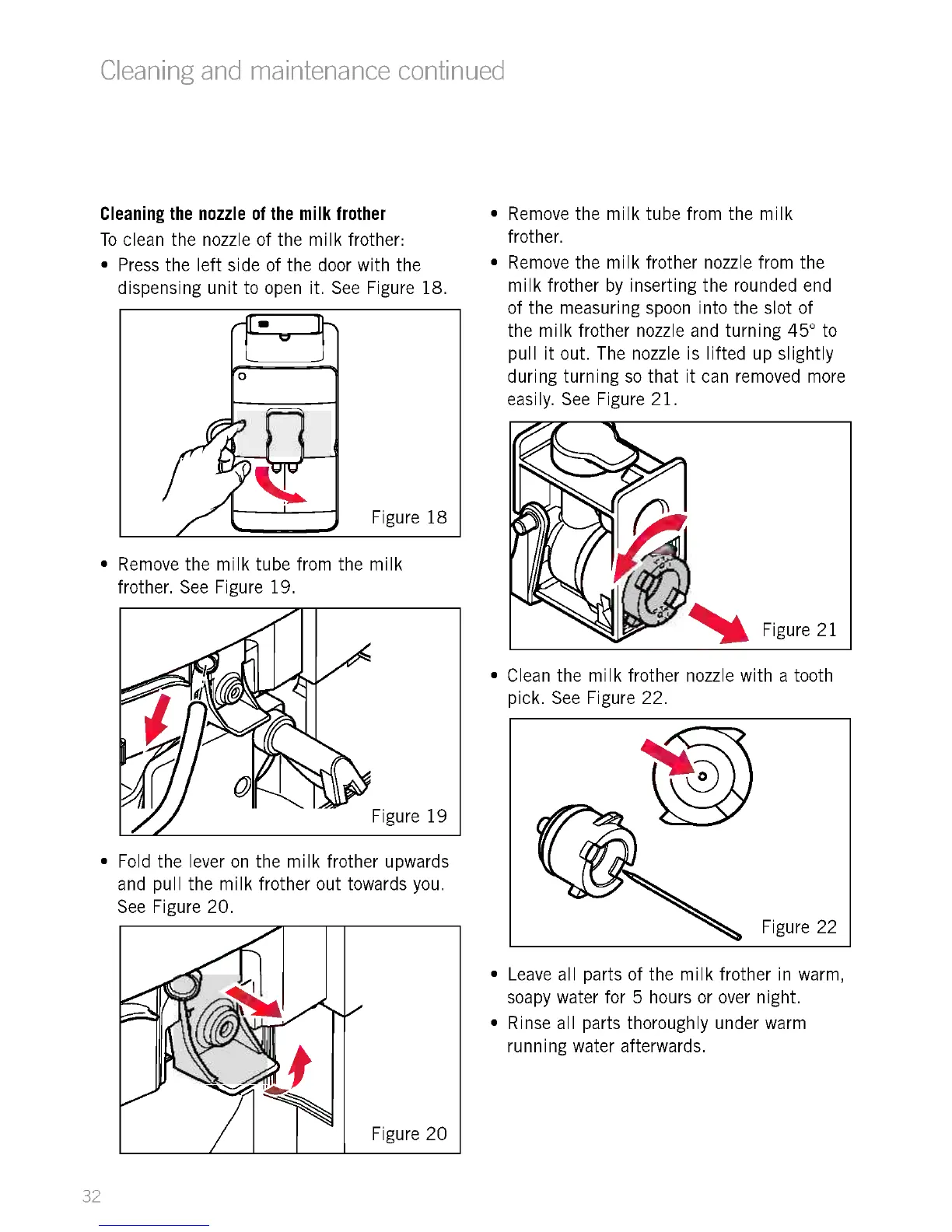

Cleaning and maintenance continued
Cleaning the nozzle of the milk frother
To clean the nozzle of the milk frother:
Press the left side of the door with the
dispensing unit to open it. See Figure 18.
Figure 18
Remove the milk tube from the milk
frother. See Figure 19.
Figure 19
Fold the lever on the milk frother upwards
and pull the milk frother out towards you.
See Figure 20.
Figure 20
32
Remove the milk tube from the milk
frother.
Remove the milk frother nozzle from the
milk frother by inserting the rounded end
of the measuring spoon into the slot of
the milk frother nozzle and turning 45° to
pull it out. The nozzle is lifted up slightly
during turning so that it can removed more
easily. See Figure 21.
Clean the milk frother nozzle with a tooth
pick. See Figure 22.
Leave all parts of the milk frother in warm,
soapy water for 5 hours or over night.
Rinse all parts thoroughly under warm
running water afterwards.
