CHAPTER
THREE

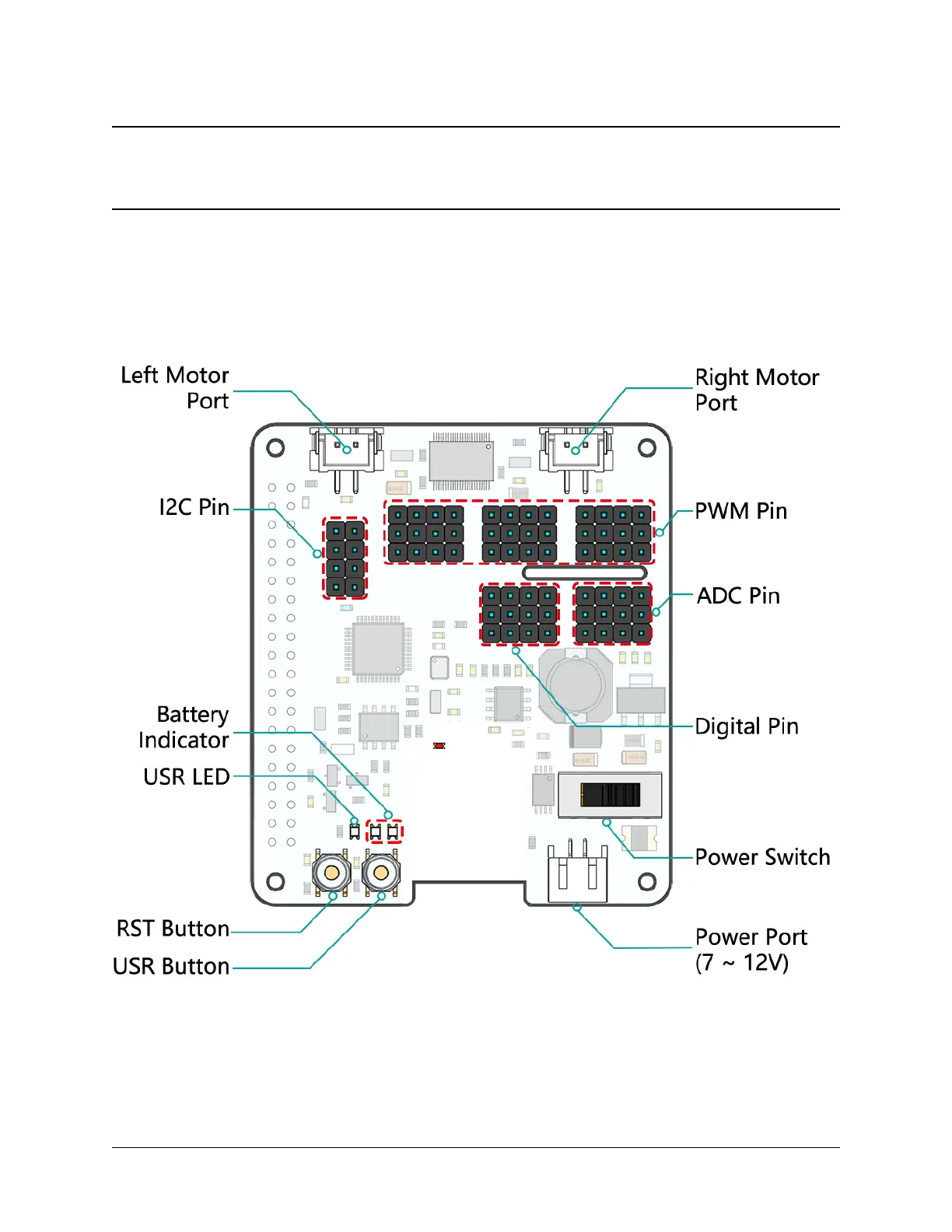

ABOUT ROBOT HAT
Left/Right Motor Port
• 2-channel XH2.54 motor ports.
• The left port is connected to GPIO 4 and the right port is connected to GPIO 5.
I2C Pin
11
