13

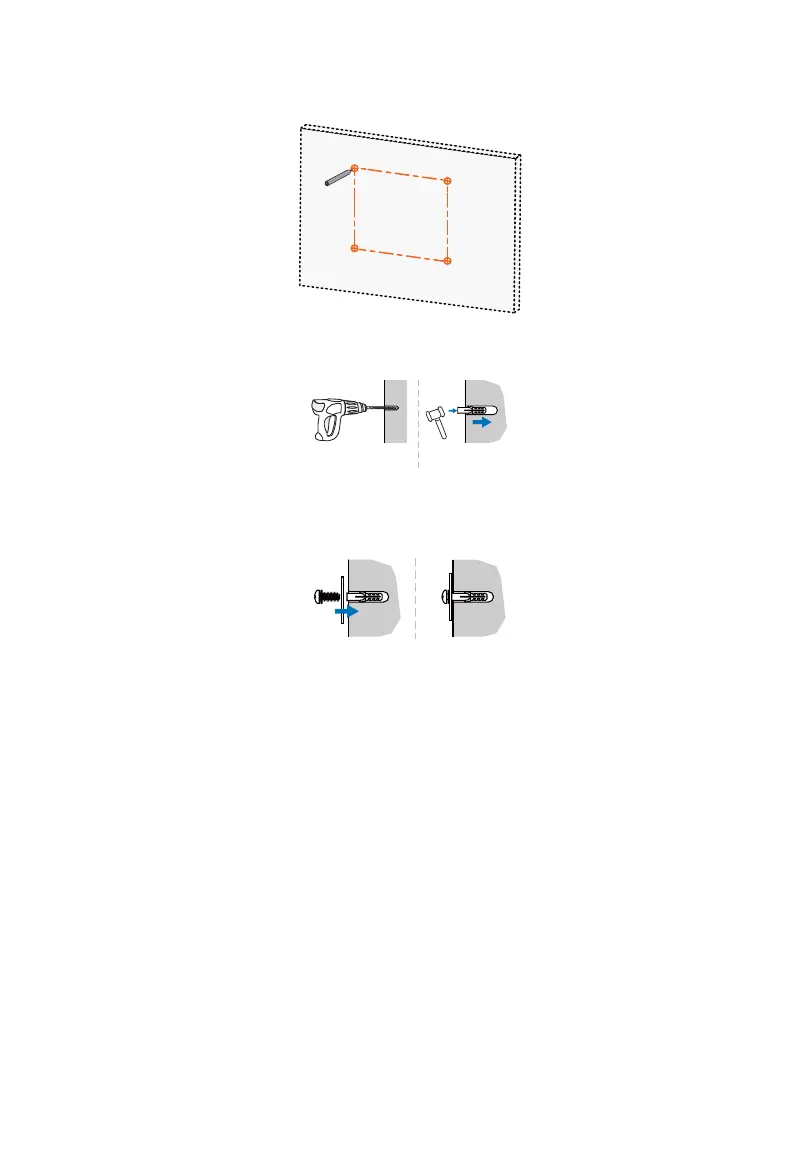

Step 3 Install the expansion solenoid, washer, and tapping screw to the
installation surface.
Step 4 Fix the Logger3000 to the surface by inserting the screw hole in the
hanger of the Logger3000 through the tapping screw and washer.
Step 5 Tighten the tapping screw by torque screwdriver with torque of 0.3N·m.
Check to make sure the Logger3000 is installed securely.
