Sungrow Logger 3000 User Manual

19
E

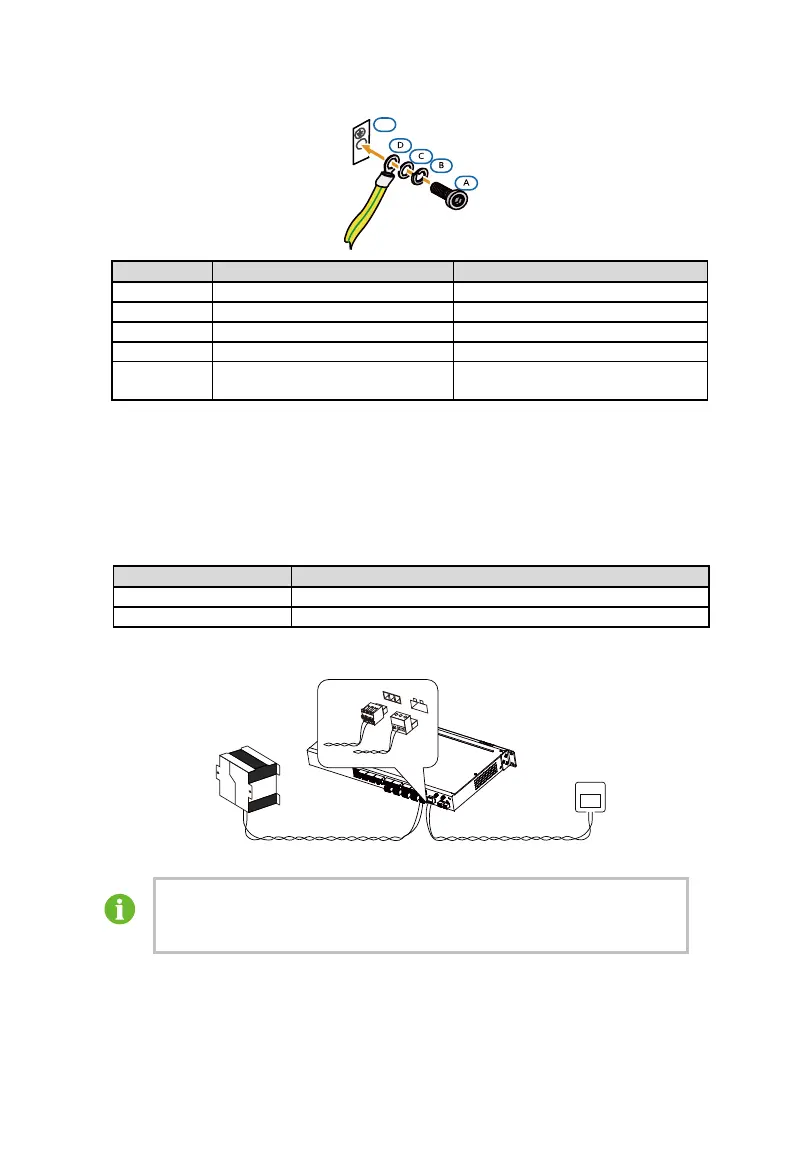

Item
Description
Note
A
Bolt
M4
B
Spring washer
-
C
Flat washer
-
D
OT terminal
-
E
Grounding hole of the
Logger3000
-
6.6 Power Supply Connection
The Logger3000 supports DC24V DC input or AC110-240V (50/60HZ) AC input.
This section will take the AC power supply for example.
Step 1 Prepare the power cable and the terminals.
Cable
Cable recommended
AC power supply
Cross-sectional area 1mm
2
~1.5mm
2
DC power supply
Cross-sectional area 1mm
2
~1.5mm
2
Step 2 Insert the power supply terminal to the corresponding DC or AC power
supply port.
UPS
The Logger3000 can connect to the DC and AC power at the same
time, where the DC power can connect to the UPS as the backup
power supply.
