38

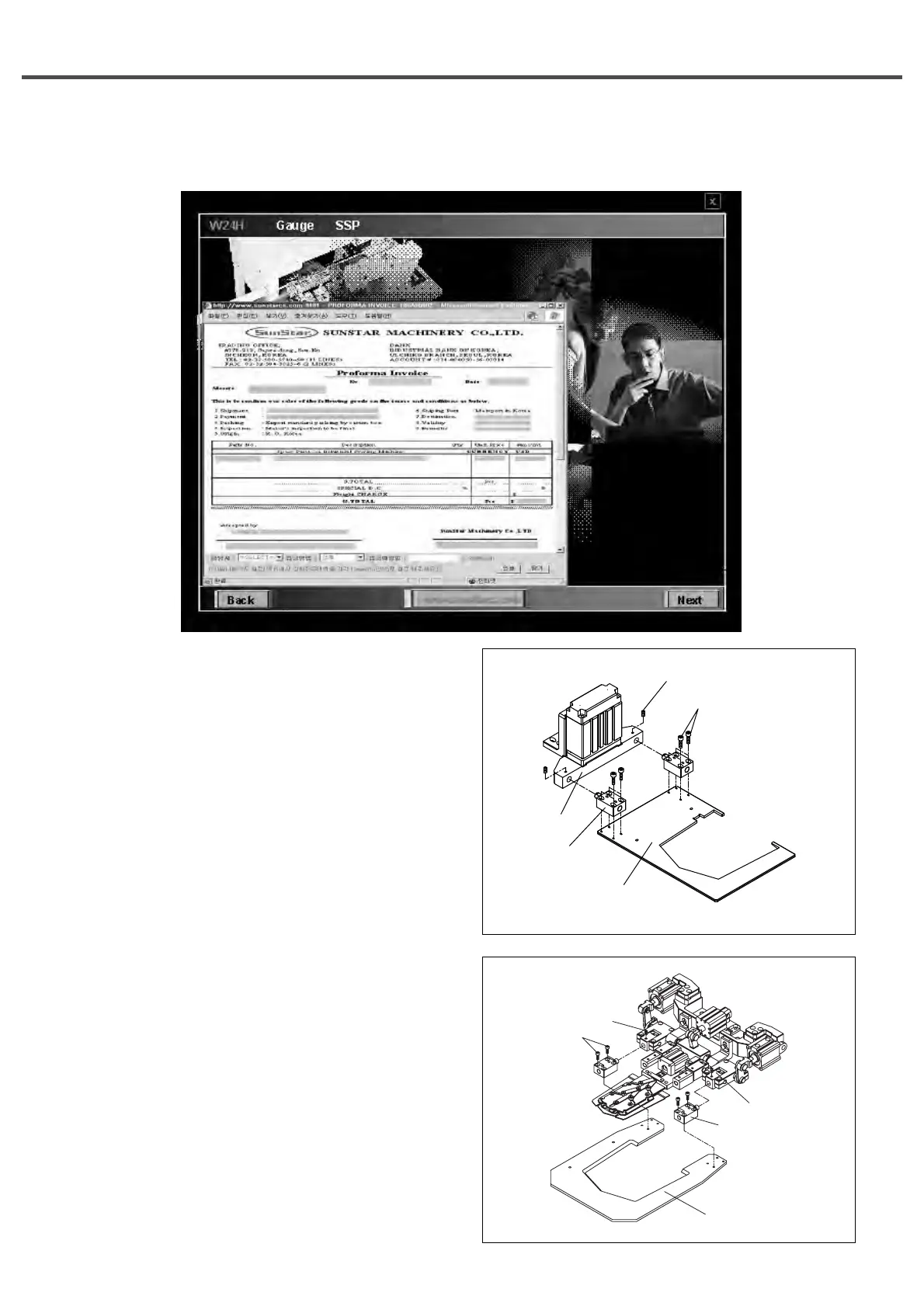

5) With an invoice popping up on the screen, the ordering is completed.
7.13.2) Feed Plate Replacement
1) Loosen the connection shaft screw ① and separate
the feed plate ④.
2) Loosen all 8 feed plate fixing bolts ② and
disassemble the connection block ③.
3) Assemble the block ③ to the new feed plate with 8
fixing bolts ② and connect it to the cylinder
connection block ⑤.
4) Tightly fix the shaft using the connection shaft
fixing screw ①.
7.13.3) Outer Presser Plate Replacement
1) Loosen the connection shaft screw ① and separate
the feed plate ④.
2) Loosen all 8 outer presser plate fixing bolts ② and
disassemble two connection blocks ③.
3) Assemble two connection blocks ③ to the new
outer feed plate with 8 fixing bolts ② and connect
it to the outer presser plate connection block C ⑤.
4) Use the connection shaft screw ① to tightly fix the
connection shaft.
①
②
④
④
③
③
⑤
①
②
⑤
