39

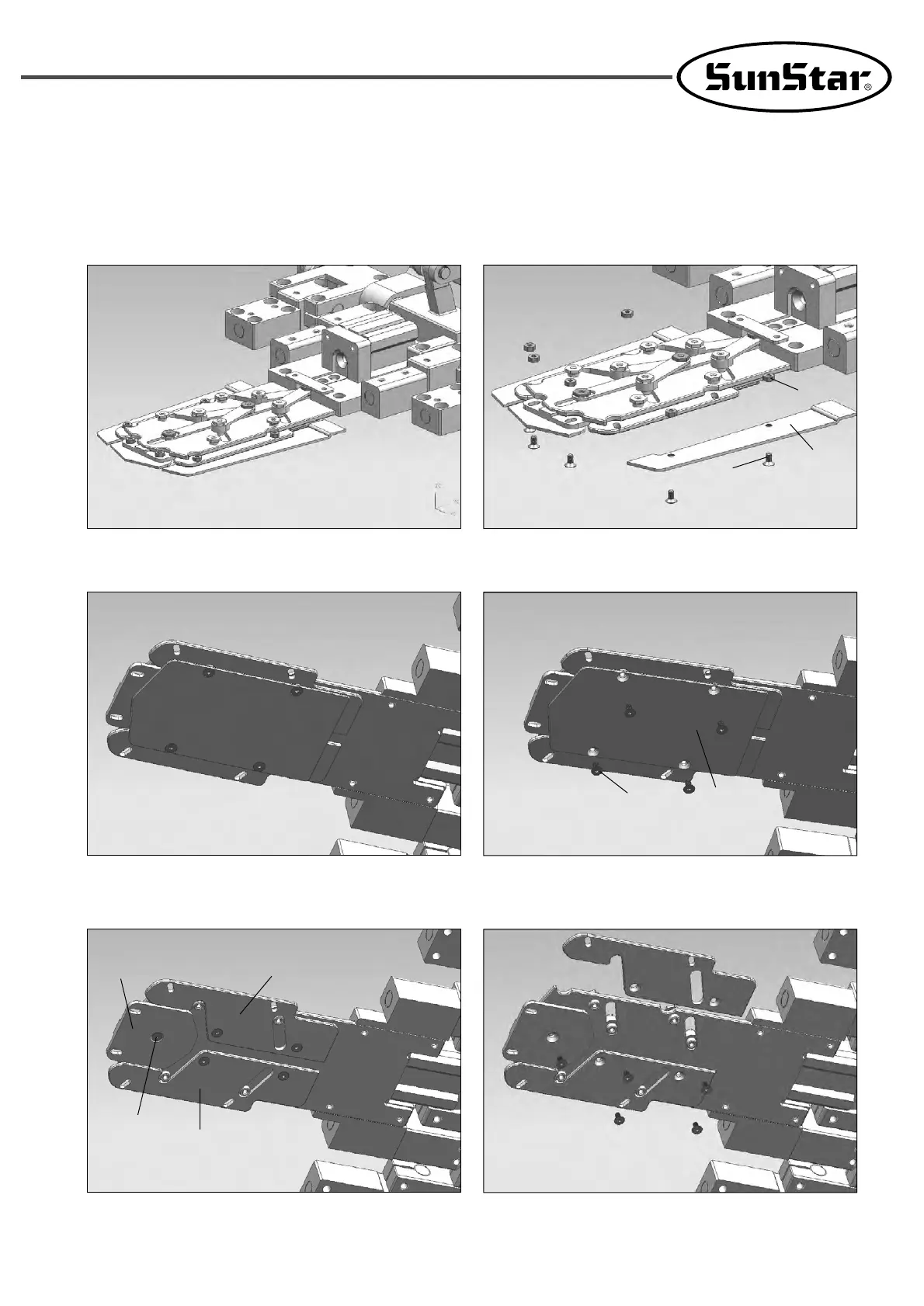

7.13.4) Replacement of Inner Presser Plate Guide
1) Loosen the fixing nut① and the fixing screw②, and disassemble Clamp Guide 2-C③, Clamp Guide 2-L④, and
Clamp Guide 2-R⑤.
2) Assemble three new clamp guides with the fixing nut① and the fixing screw②.
1) Loosen the four fixing screws① to change the clamp size and separate the clamp plate (lower)②.
②
①
③
②
①
2) Loosen the five fixing screws①, and separate Clamp Guide 1-C②, Clamp Guide 1-L③, and Clamp Guide 1-R④.
④
③
①
②
7.13.5) Replacement of Inner Presser Plate
