3) Hook

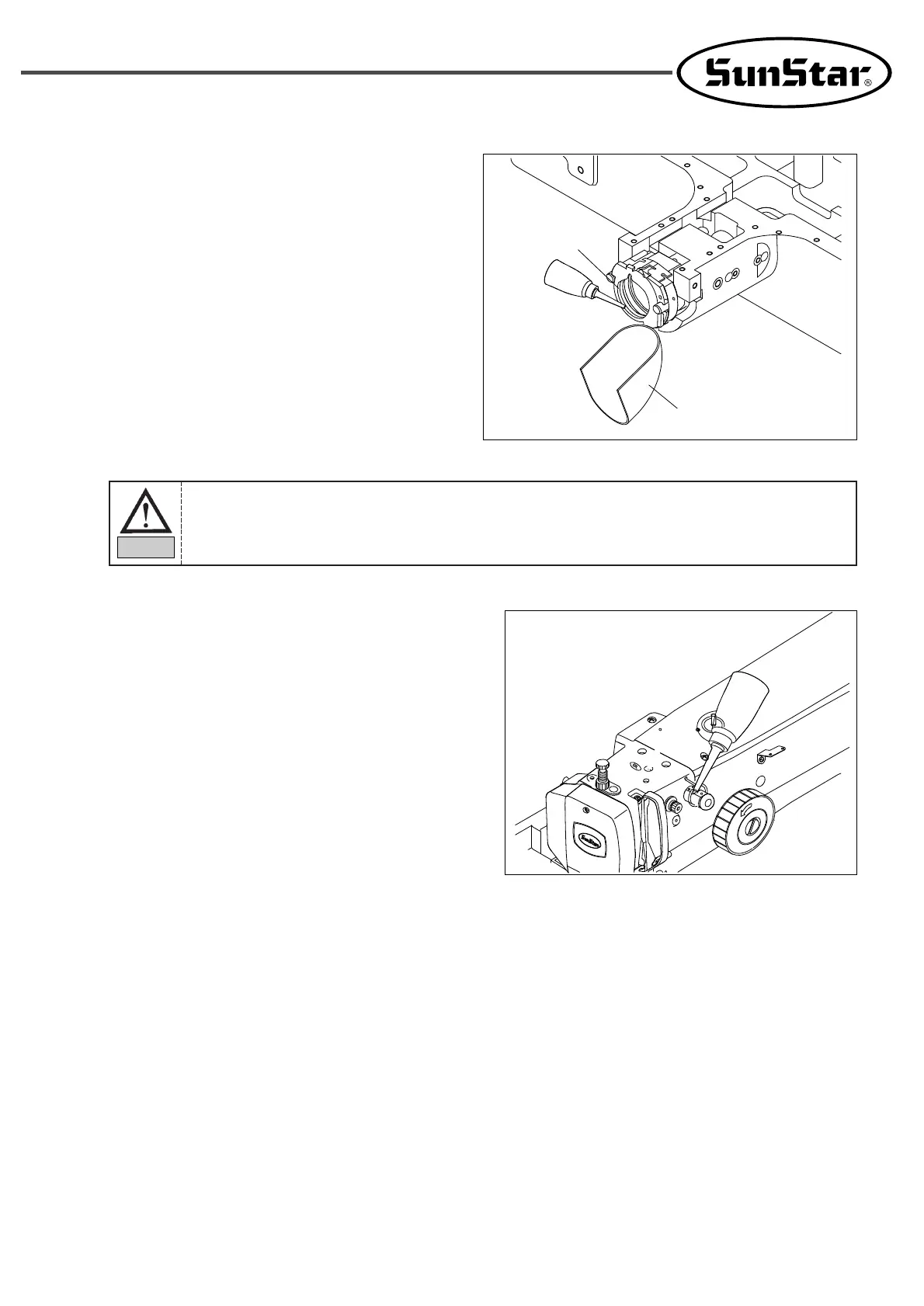

－ Open the hook cover and supply oil to the
extent that the area surrounding the shuttle
race ring is wet with oil. When lubrication
completes, make sure to place back the hook
cover.
To prevent safety accidents, keep the hook cover remain covered during machine operation.
Caution
Shuttle Race Ring
Hook Cover
4) Silicon Oil Tank
－ Supply silicon oil to the silicon oil tank installed
on the right side of the arm.
