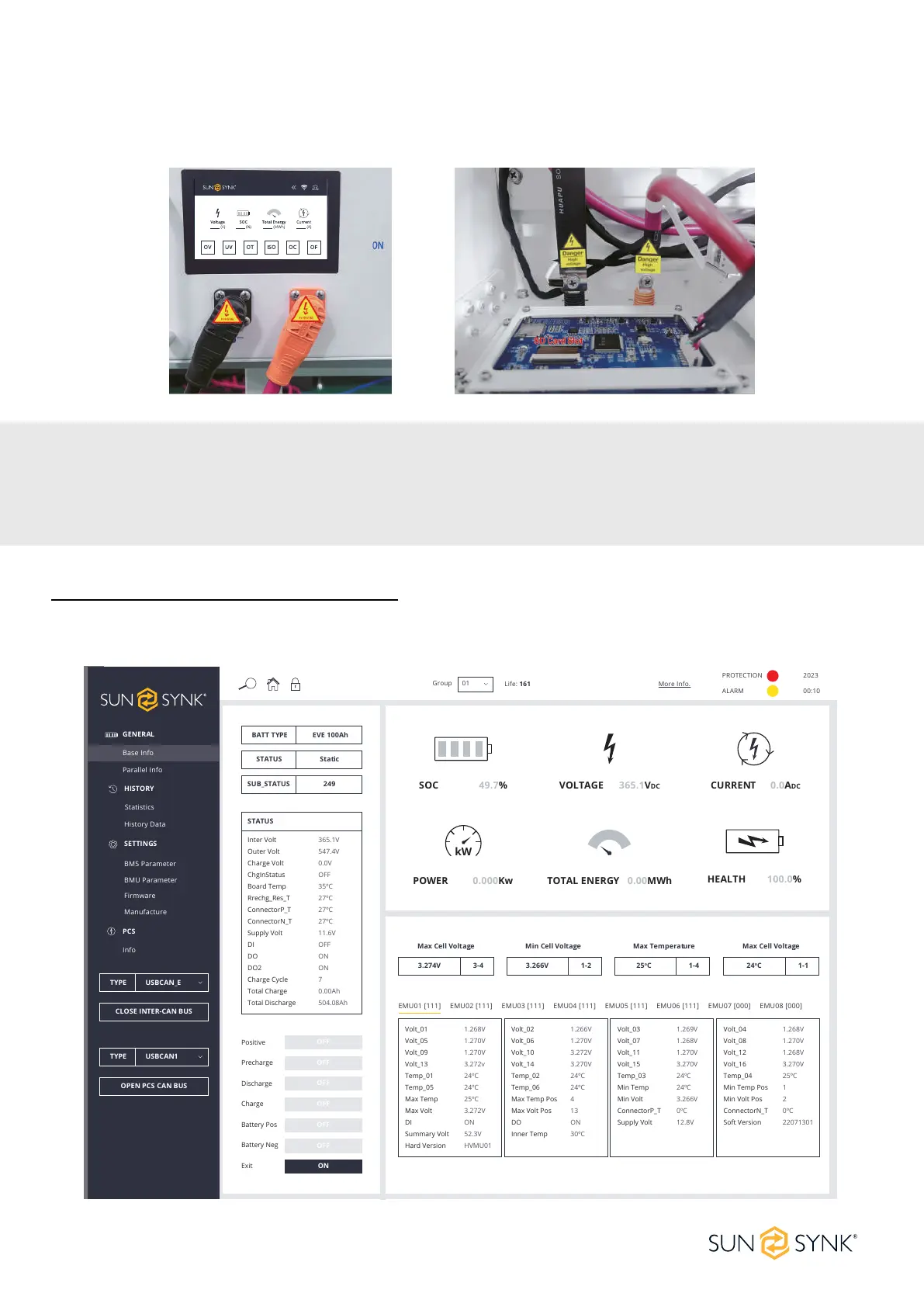

High Voltage Series | Installer Manual27
Maintenance Interface
For safety, please unplug the power cord of the positive and negative interfaces before maintenance.
PLEASE NOTE
When inserting the SD card, unplug the battery power cord and manually turn the air switch to the
o position.
HVESS-MONITOR USE INSTRUCTIONS
Main Page
OFF
GENERAL
PCS
Base Info
Info
Parallel Info
HISTORY
Statistics
History Data
SETTINGS
BMS Parameter
BMU Parameter
Firmware
Manufacture
TYPE USBCAN_E
CLOSE INTER-CAN BUS
TYPE USBCAN1
OPEN PCS CAN BUS
Group
Life: 161
01
More Info.
PROTECTION
ALARM
2023
00:10
BATT TYPE EVE 100Ah
STATUS Static
SUB_STATUS 249
STATUS
Inter Volt 365.1V
Outer Volt 547.4V
Charge Volt 0.0V
ChgInStatus OFF
Board Temp 35ºC
Rrechg_Res_T 27ºC
ConnectorP_T 27ºC
ConnectorN_T 27ºC
Supply Volt 11.6V
DI OFF
DO ON
DO2 ON
Charge Cycle 7
Total Charge 0.00Ah
Total Discharge 504.08Ah
Positive
Precharge
Discharge
Charge
Battery Pos
Battery Neg
Exit
OFF
ON
OFF
OFF
OFF
OFF
OFF
SOC 49.7%
VOLTAGE 365.1V
DC
POWER 0.000Kw
TOTAL ENERGY 0.00MWh
CURRENT 0.0A
DC
HEALTH 100.0%
Max Cell Voltage
3.274V 3-4
Min Cell Voltage
3.266V 1-2
Max Temperature
25
o
C 1-4
Max Cell Voltage
24
o
C 1-1
Volt_01 1.268V
Volt_05 1.270V
Volt_09 1.270V
Volt_13 3.272v
Temp_01 24ºC
Temp_05 24ºC
Max Temp 25ºC
Max Volt 3.272V
DI ON
Summary Volt 52.3V
Hard Version HVMU01
Volt_02 1.266V
Volt_06 1.270V
Volt_10 3.272V
Volt_14 3.270V
Temp_02 24ºC
Temp_06 24ºC
Max Temp Pos 4
Max Volt Pos 13
DO ON
Inner Temp 30ºC
Volt_03 1.269V
Volt_07 1.268V
Volt_11 1.270V
Volt_15 3.270V
Temp_03 24ºC
Min Temp 24ºC
Min Volt 3.266V
ConnectorP_T 0ºC
Supply Volt 12.8V
Volt_04 1.268V
Volt_08 1.270V
Volt_12 1.268V
Volt_16 3.270V
Temp_04 25ºC
Min Temp Pos 1
Min Volt Pos 2
ConnectorN_T 0ºC
Soft Version 22071301
EMU01 [111] EMU02 [111] EMU03 [111] EMU04 [111] EMU05 [111] EMU06 [111] EMU07 [000] EMU08 [000]
