High Voltage Series | Installer Manual13

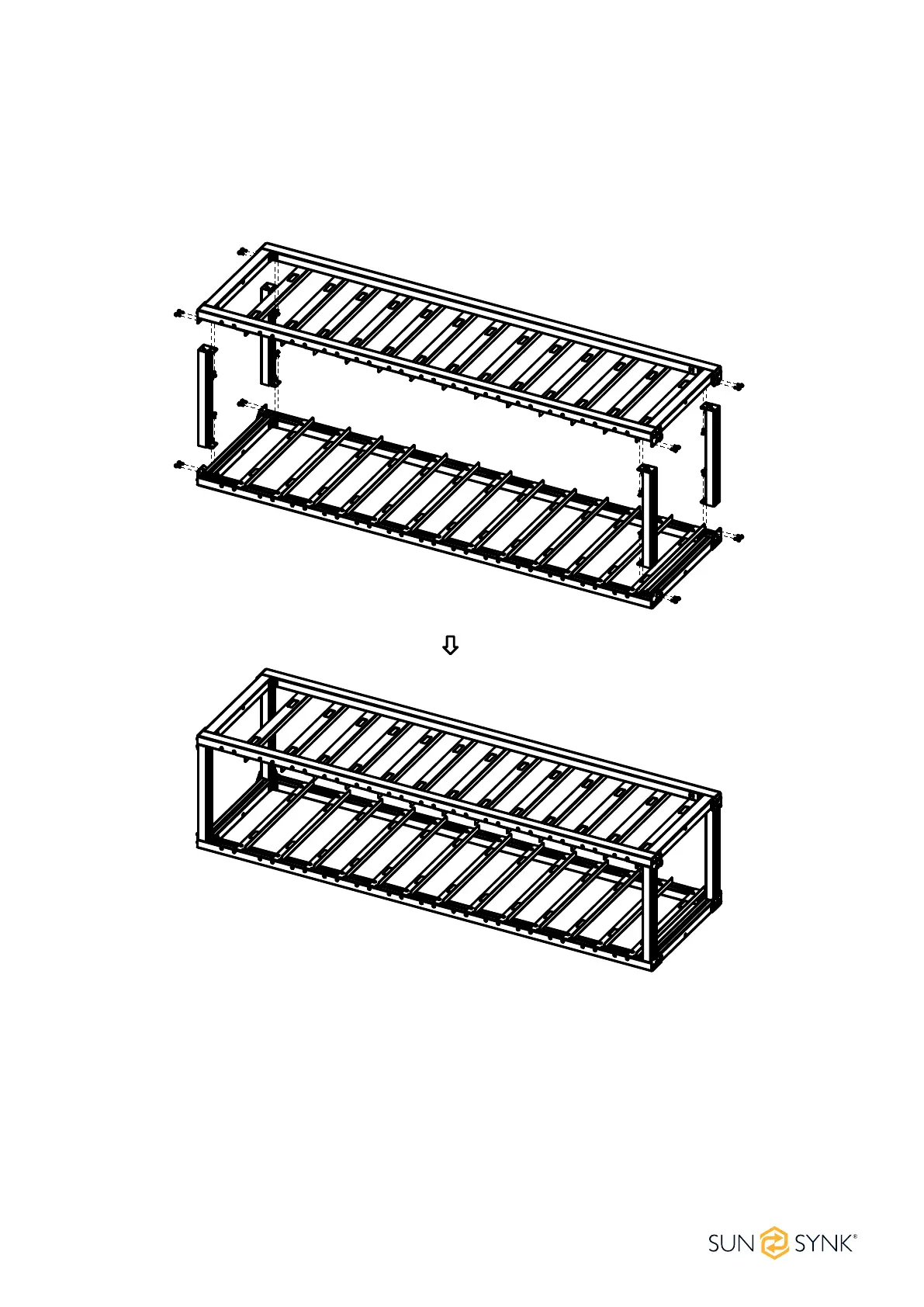

Installation of Rack
1. Connect the upper cross beams (102) and lower cross beams (103) with the two rack sides (102) using
M6*12 external hexagonal cross combination screws (108) and a PHILIP2 # screwdriver.
101
101
108
108
108
108
108
108
108
108
103
103
108
108
108
108
108
108
108
108
102
102
201x1
106
106
106
106
108
108
108
108
108
107
107
107
105
104
201
Type A:
1. Use a PHILIP2 # screwdriver and M6*12 external hex combination screws (108) to attach the L-bracket
(107) assembly horizontally to the side joist.
2. Attach the upper diagonal beam (105) to two side beams (101) and the lower diagonal beam (104) to two
other side beams using M6*12 external hex combination cross screws (108) and a screwdriver.
3. Screw the base (106) to the rack bottom plate and secure it with a PHILIP2# screwdriver or by hand.
4. To x the rack on the wall, use a PHILIP2# screwdriver to install the rack fastener at the M6 screw hole
above the rack and x it with M6*12 outer hexagon cross combination screws (108). Fix the other side of
the rack with the wall using M6*100 expansion screws. To x two racks together, install the rack fastener
at the M6 screw hole above the rack, and x them together with M6*12 outer hexagon cross combina-
tion screws and M6 nuts.
