High Voltage Series | Installer Manual17

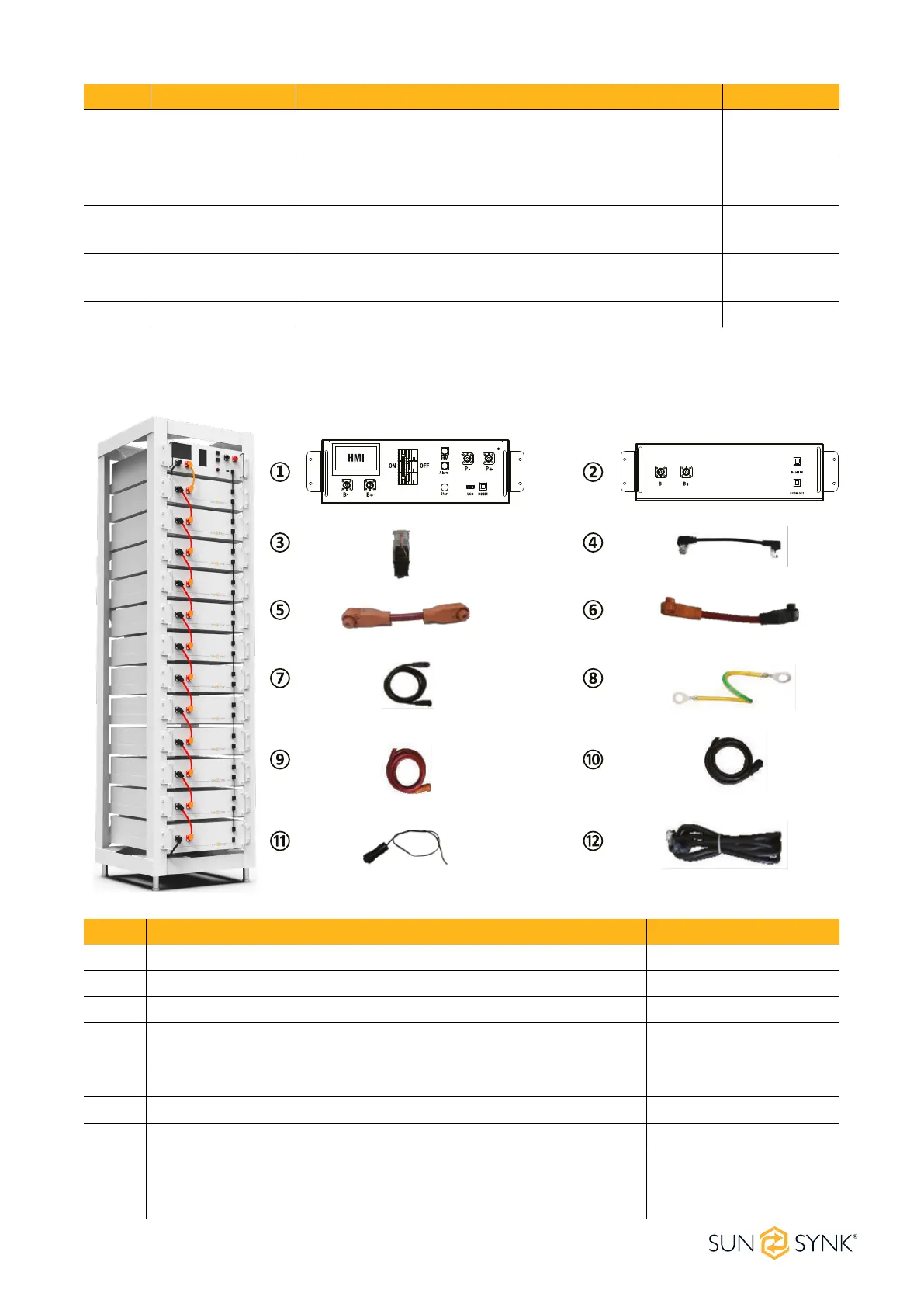

Description of Battery Module in Rack
No. Description Type
1 High-voltage control box 750V/100A
2 5.12kWh battery module (general)
3 120ohm terminal resistor
4
Communication cable (110mm for battery module, 140mm for
high-voltage control box)
Standard
5 220mm positive power cord of high-voltage control box Standard
6 220mm positive power cord of battery module Standard
7 The negative power cord of the high-voltage control box Standard
8
140mm ground wire A (ground wire B for external connection of bat-
tery rack is not provided)
Standard connecting
cable A (connecting the
high-voltage control box)
No. Name Description Position
12
Grounding wire
identication
Connection to the battery rack and the ground point Front
13 OUT COM
Connection position with next HVB-100A750V communica-
tion input
Rear
14 IN COM
Connection position with previous HVB-100A750V commu-
nication input
Rear
15 PCS COM
Communication interface with charging and discharging
equipment
Rear
16 POWER Connection position of external 12VDC power supply Rear
