High Voltage Series | Installer Manual36
INTER-CAN Firmware Upgrade

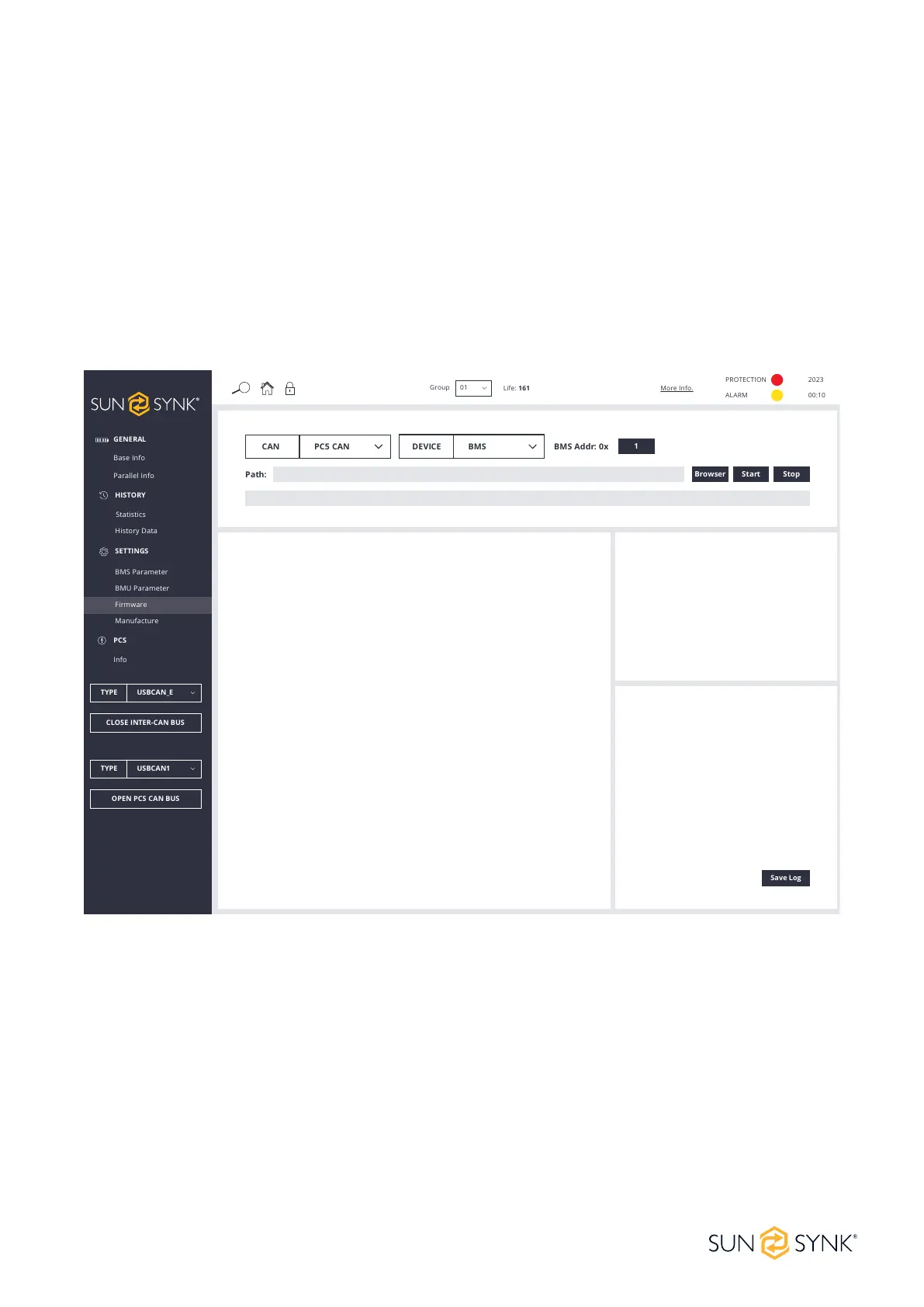

Make a selection in the red box of the BMS CAN-BUS upgrade and BMU CAN-BUS upgrade interface. Click
the Browser button, select the conguration le to be upgraded from the computer, or drag the BIN le to
be upgraded to the upgrade interface. The HVESS-Monitor will read and analyse the data in the le and dis-
play it on the corresponding input interface. Click Start to start upgrading.
In the case of parallel device operation, when the device address is lled in with 1, the HVESS-Monitor will
start with No.1 BMS to upgrade BMS and BMU in the entire system one by one. Regardless of whether a
BMS upgrade succeeds or not, it will continue to upgrade BMS at the next address. When the device address
is lled with a gure other than 1 (for example, 2), the HVESS-Monitor will only upgrade a single BMS whose
address matches the input. The single BMU upgrade operation is similar. After the upgrade, OK will be dis-
played.
GENERAL
PCS
Base Info
Info
Parallel Info
HISTORY
Statistics
History Data
SETTINGS
BMS Parameter
BMU Parameter
Firmware
Manufacture
TYPE USBCAN_E
CLOSE INTER-CAN BUS
TYPE USBCAN1
OPEN PCS CAN BUS
Group
Life: 161
01
More Info.
PROTECTION
ALARM
2023
00:10
CAN PC5 CAN
DEVICE BMS BMS Addr: 0x
1
Path:
Browser Start Stop
Save Log
