NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
2

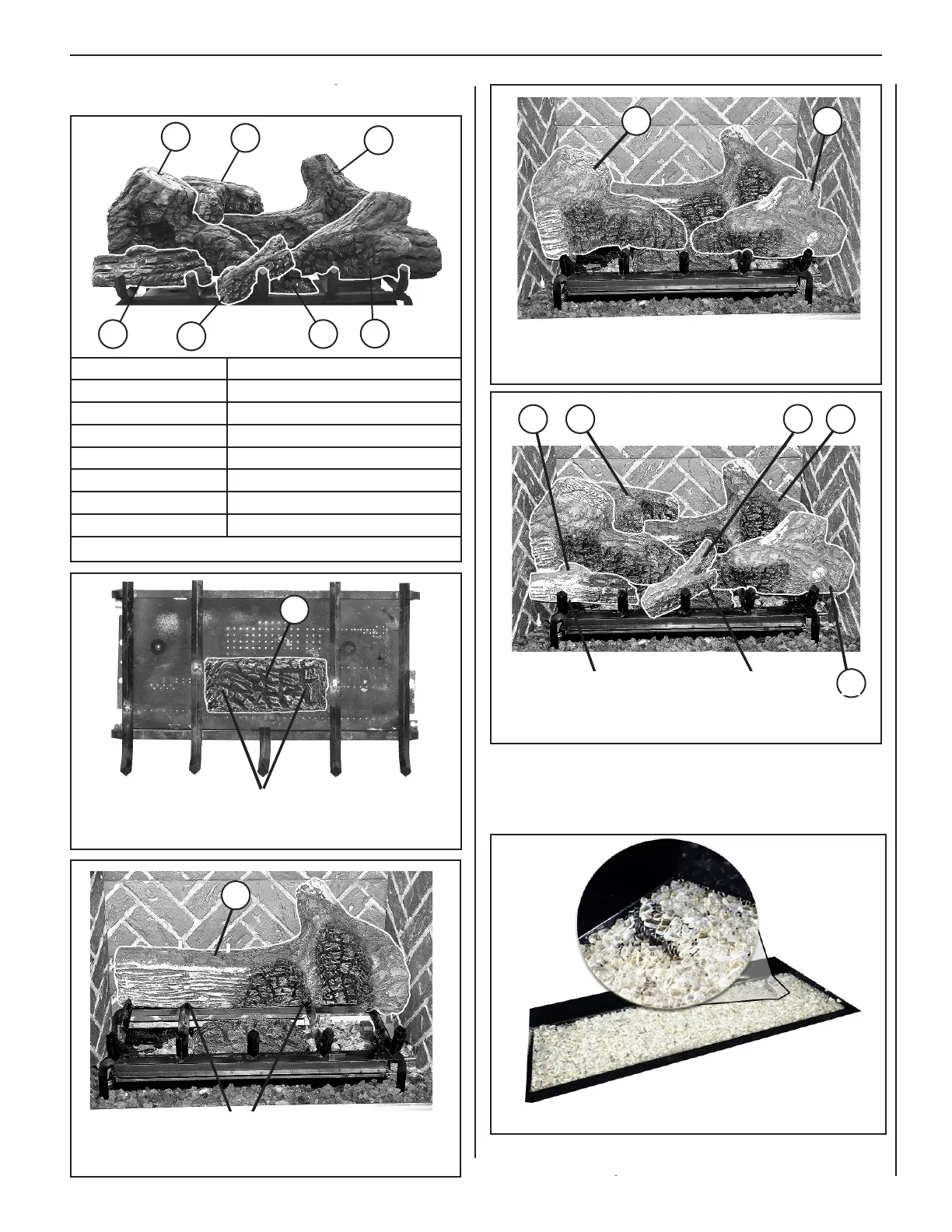

Traditional Only: Log Placement
Align Two Holes At Bottom Of Log (1)
Over The Pins On The Gas Burner.
1
Figure 66 - Placing Log 1
Figure 67 - Placing Log 2
Engage Logs (3 & 4) With The Grate Pins And Align Groves At
The Bottom Of The Logs Over The Grate.
4
3
Figure 68 - Placing Logs 3 and 4
Align Groove At The Bottom Of Log (2) Over
The Grate And Push It Towards The Rear.
3
2
4
1
6
5
7
Log Number Description
1 Log, Center
2 Log, Rear
3 Log, Center/Left
4 Log, Center/Right
5 Log, Rear/Top
6 Log, Front/Left
7 Log, Front/Center
Table 17 - Log Set
Align Hole At Bottom Of Log (5)
Over The Pin On Log (2).
6 5
7
2
Figure 69 - Placing Logs 5, 6, and 7
Engage Log (6) With The Grate Pin
And Align Groove At The Bottom Of
The Log Over The Grate.
Engage Log (7) With
The Pin On Log (4).
4
Contemporary Only: Glass Media Placement
1. Spread a thin layer of the media evenly on the burner and
media screen.
Figure 70 - Glass media installed
2. On the corner of the right media screen, arrange the media to allow
the pilot flame to reach the burner during lighting.
INNOVATIVE HEARTH PRODUCTS • DIRECT-VENT GAS FIREPLACES (DRT6300/DRC6300) • CARE AND OPERATION INSTRUCTIONS
