Superior DRC6340TEP - Burner Air Shutter Adjustment; Electronic Appliance Checkout

45
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
To adjust the flame, rotate the air shutter toward
the back or toward the front of the fireplace.
Position the air shutter to the factory setting
as shown in Figure 73. Allow the burner to
operate for at least 15 minutes. Observe the
flame. If it appears weak or sooty as previously
described, adjust the air shutter until the flame
appearance is as desired.
Use the remote to adjust the flame height
as desired.
Propane models may exhibit a flame pattern that
may "candle" or appear stringy. If this is prob-
lematic or persists as the appliance is continually
operated, close the air shutter, as described here.
Operate the appliance for a period of time as the
effect diminishes, ensuring that the appliance
does not develop sooty flames. When satisfied
that the appliance operates properly, proceed
to finish the installation.
CAUTION
Soot will be produced if the
air shutter is closed too much.
Any damage due to carboning
resulting from improperly
setting the air shutter is not
covered under the warranty.
WARNING
• Air shutter adjustment should
only be performed by a
qualified professional service
technician.
• Ensure that the front glass
door assembly is in place
and sealed After adjustment.

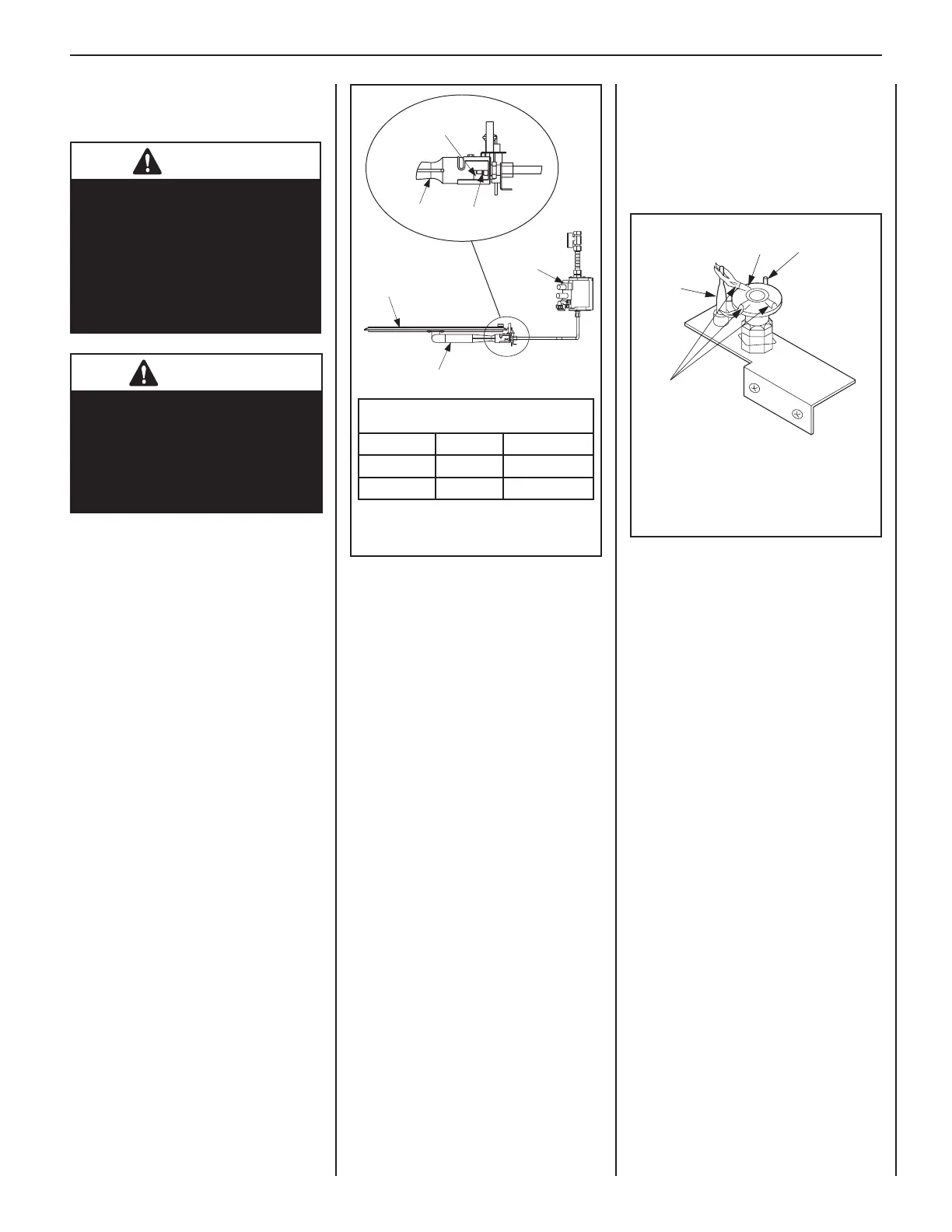

BURNER FLAME ADJUSTMENTS
(QUALIFIED TECHNICIANS ONLY)
Air Shutter
Opening
Burner
Orifice
Gas
Valve
Venturi
Venturi
Main Burner Factory Air Shutter
Opening Setting—Inches (millimeter)
Model Nat.Gas Propane Gas
40 in. 1/16 (1.59) 9/32 (7.14)
45 in. 1/16 (1.59) 9/32 (7.14)
Figure 73—Air Shutter Adjustment
INNOVATIVE HEARTH PRODUCTS • DIRECT-VENT GAS FIREPLACES (DRT6300/DRC6300) • CARE AND OPERATION INSTRUCTIONS
Pilot
Nozzels
Flame
Sensor
Pilot Hood
Igniter
Rod
Figure 74—Pilot Assembly—
Proper Pilot Flame Appearance
Electronic Appliance Checkout
To light the burner, turn on the remote control.
Ensure the igniter lights the pilot. The pilot
flame should engulf the flame rod as shown
in Figure 74.
