SuperServer 1019C-HTN2 User's Manual
22
Installing the LGA1151 Processor

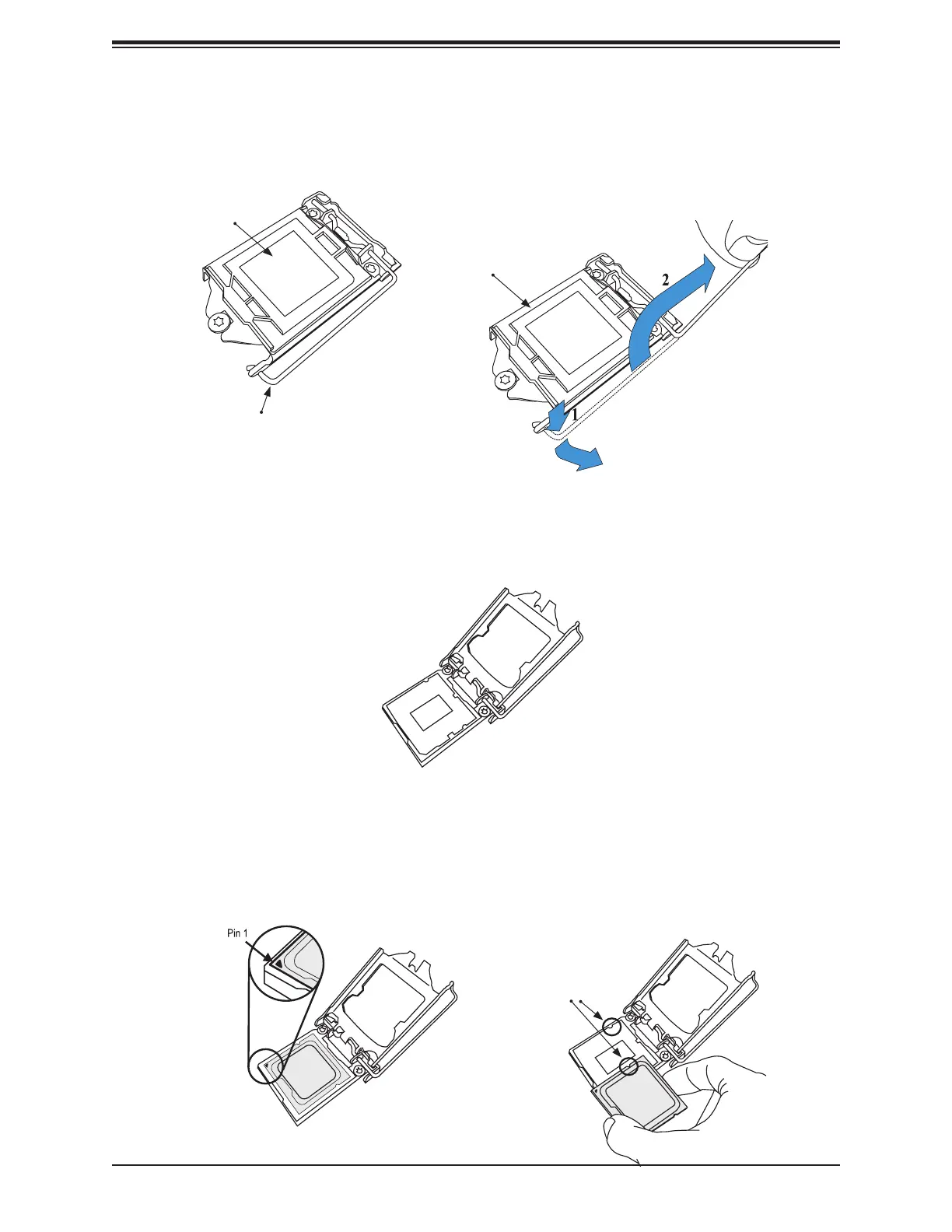

1. Press the load lever down to release the load plate from its locking position.
Load Lever
Load Plate
Plastic Protective
Cover
CPU / Socket Keys
2. Gently lift the load lever to open the load plate. Remove the plastic protective cover. Do
not touch the CPU socket contacts.
3. Locate the triangle on the CPU and CPU socket, which indicates the location of Pin 1.
the CPU with the triangle on the socket. The CPU keys (the semi-circle cutouts) may
also be aligned against the socket keys as a guide.
