27
Chapter 3: Maintenance and Component Installation

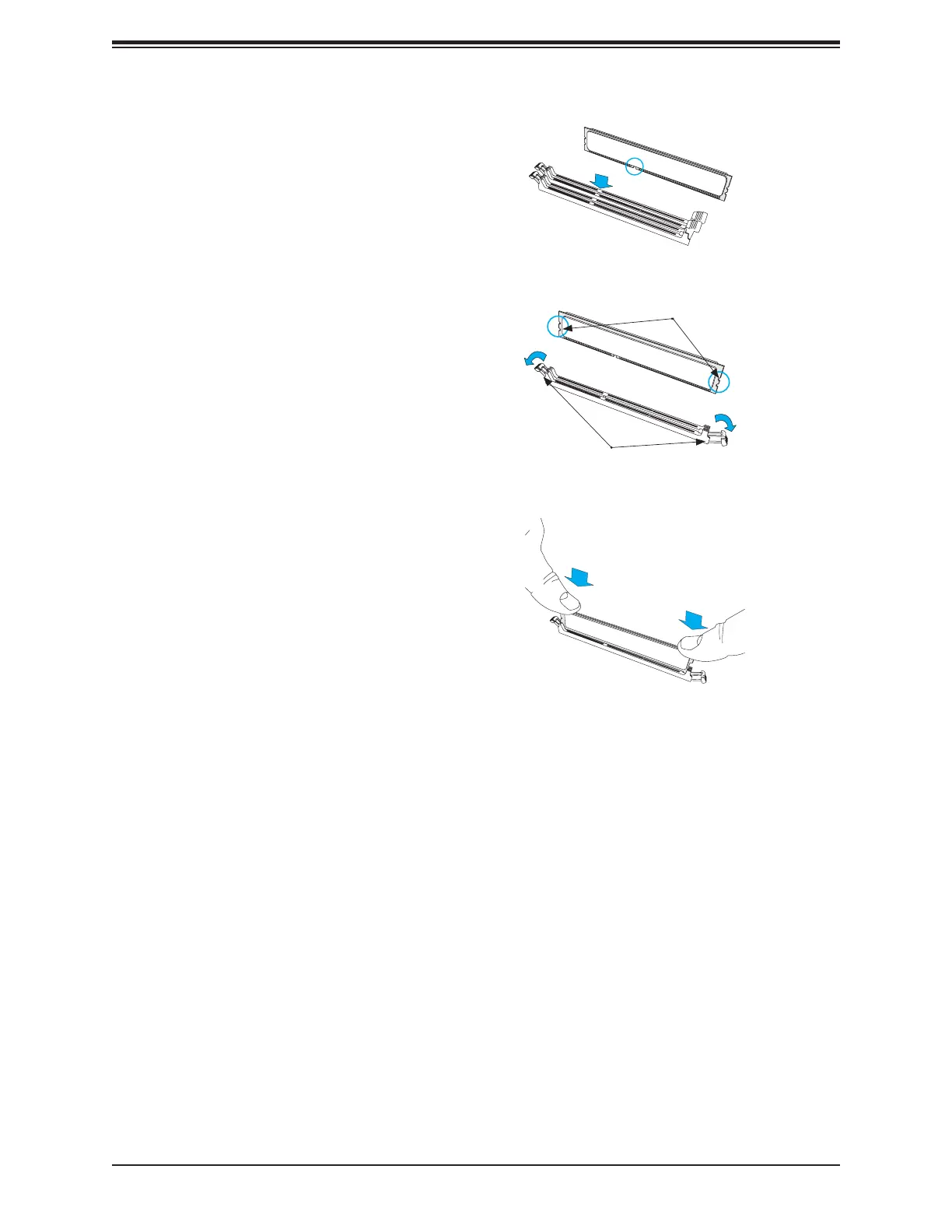

DIMM Installation
1. Insert DIMM modules in the following
order: DIMMA2, DIMMB2, then DIMMA1,
DIMMB1. For optimal performance, use
memory modules of the same type and
speed.
2. Push the release tabs outwards on both
ends of the DIMM slot to unlock it.
3. Align the key of the DIMM module with the
receptive point on the memory slot.
4. Align the notches on both ends of the
module against the receptive points on the
ends of the slot.
5. Press both ends of the module straight
down into the slot until the module snaps
into place.
6. Press the release tabs to the lock positions
to secure the DIMM module into the slot.
DIMM Removal
Reverse the steps above to remove the DIMM
modules from the motherboard.
Release Tabs
Notches
Press both ends
straight down into
the memory slot.
To Next Page
