4.5 Rear I/O Ports
of the motherboard.

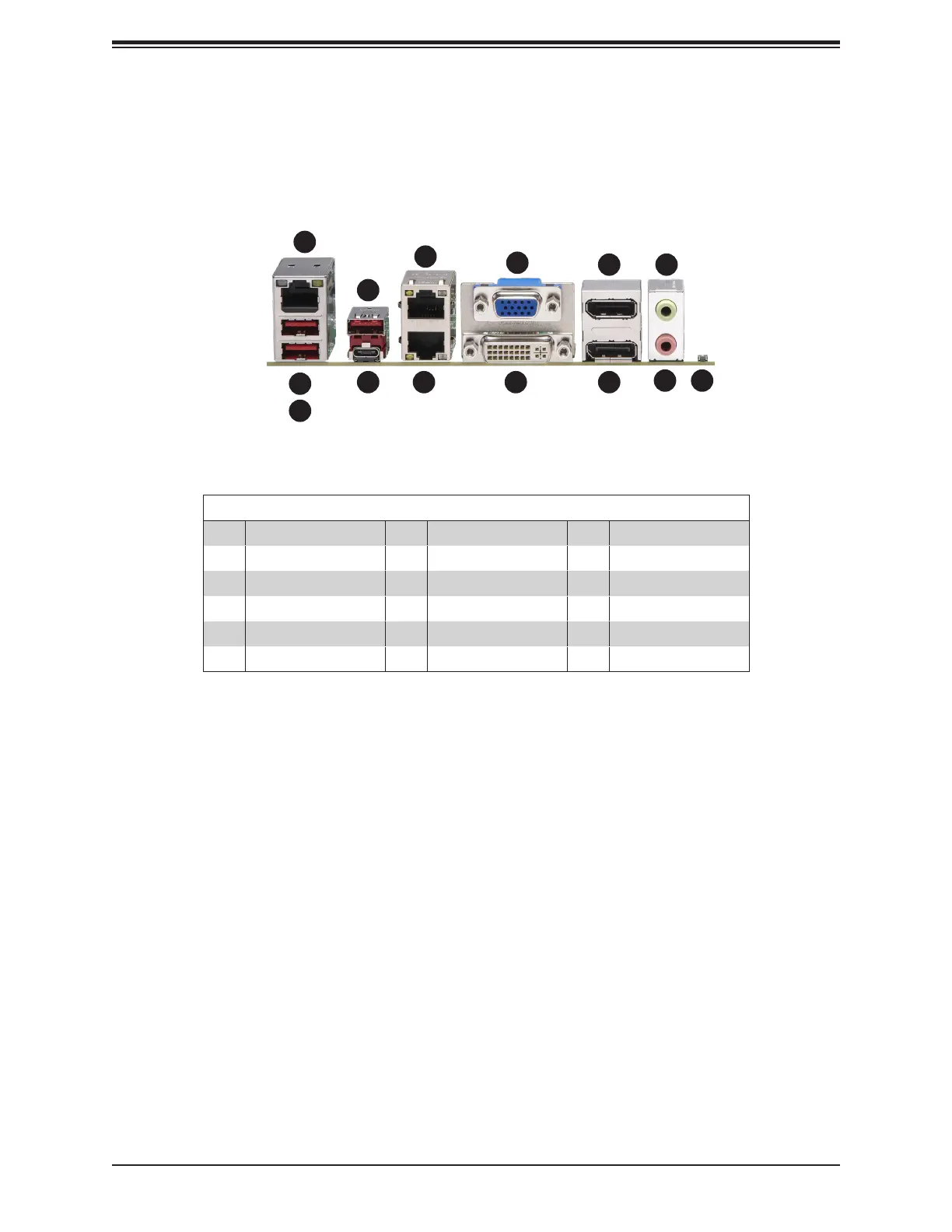

Figure4-1.I/OPortDenitions
14
1
9
8
7
6
5
4
3
2
10
13
12
11
I/O Back Panel Description
# Description # Description # Description
1. IPMI LAN 6. LAN2 11. DisplayPort 1
2. USB10 (3.1 Gen 2) 7. LAN1 12. Line Out
3. USB9 (3.1 Gen 2) 8. VGA 13. Mic In
4. USB12 (3.1 Gen 2) 9. DVI-I 14. UID Switch
5. USB11 (3.1 Gen 2) 10. DisplayPort 2
DP++ Ports
The motherboard has two DisplayPorts located on the I/O back panel. DisplayPort, developed
by the VESA consortium, delivers digital display and fast refresh rate. It can connect to virtu-
ally any display device using a DisplayPort adapter for devices such as VGA, DVI or HDMI.
DVI-I Port
A DVI-I port is located on the I/O back panel. Use this port to connect to a compatible DVI
(Digital Visual Interface) display.
VGA Port
A video port from the BMC controller is located on the I/O back panel. Use this port to connect
to a compatible VGA display.
