SuperServer 1019C-HTN2 User's Manual
30

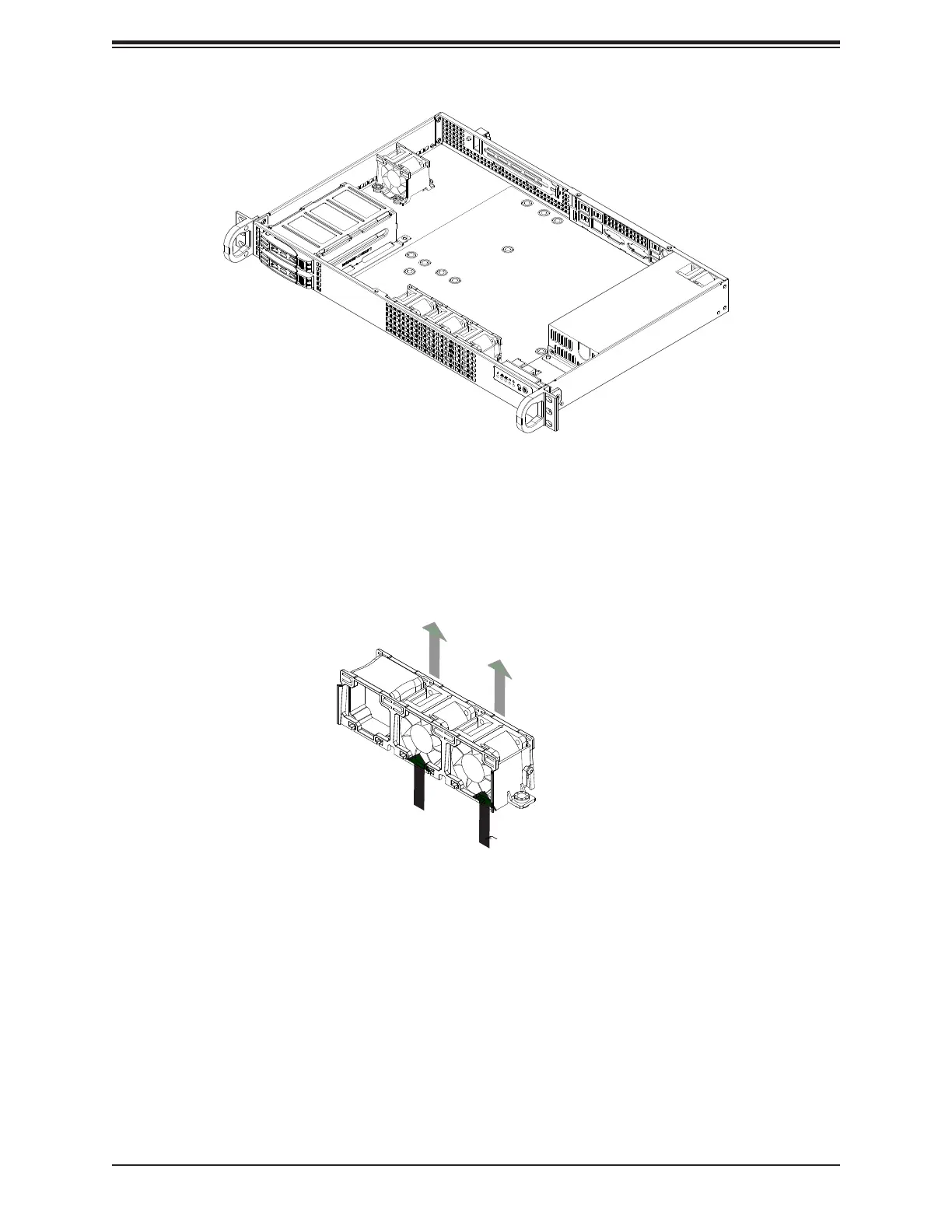

Figure 3-7. Removing/Installing a Fan to the Housing
4. Disconnect the fan wiring from the connectors and carefully lift the fan housing out of
the chassis.
5. To remove the fans from the fan housing, gently push upwards on the fan from the
underside of the fan housing. Gently ease the fan out of the top of the housing.
Figure 3-6. Removing the Fan Housing
6. Slide the replacement fan upwards through the bottom of the fan housing.
7. Reconnect the fan wiring and replace the fan housing in the chassis using the mounting
screws previously set aside.
8. Power up the system and check that the fan is working properly before replacing the
chassis cover.
