Super X11SPi-TF User's Manual
114

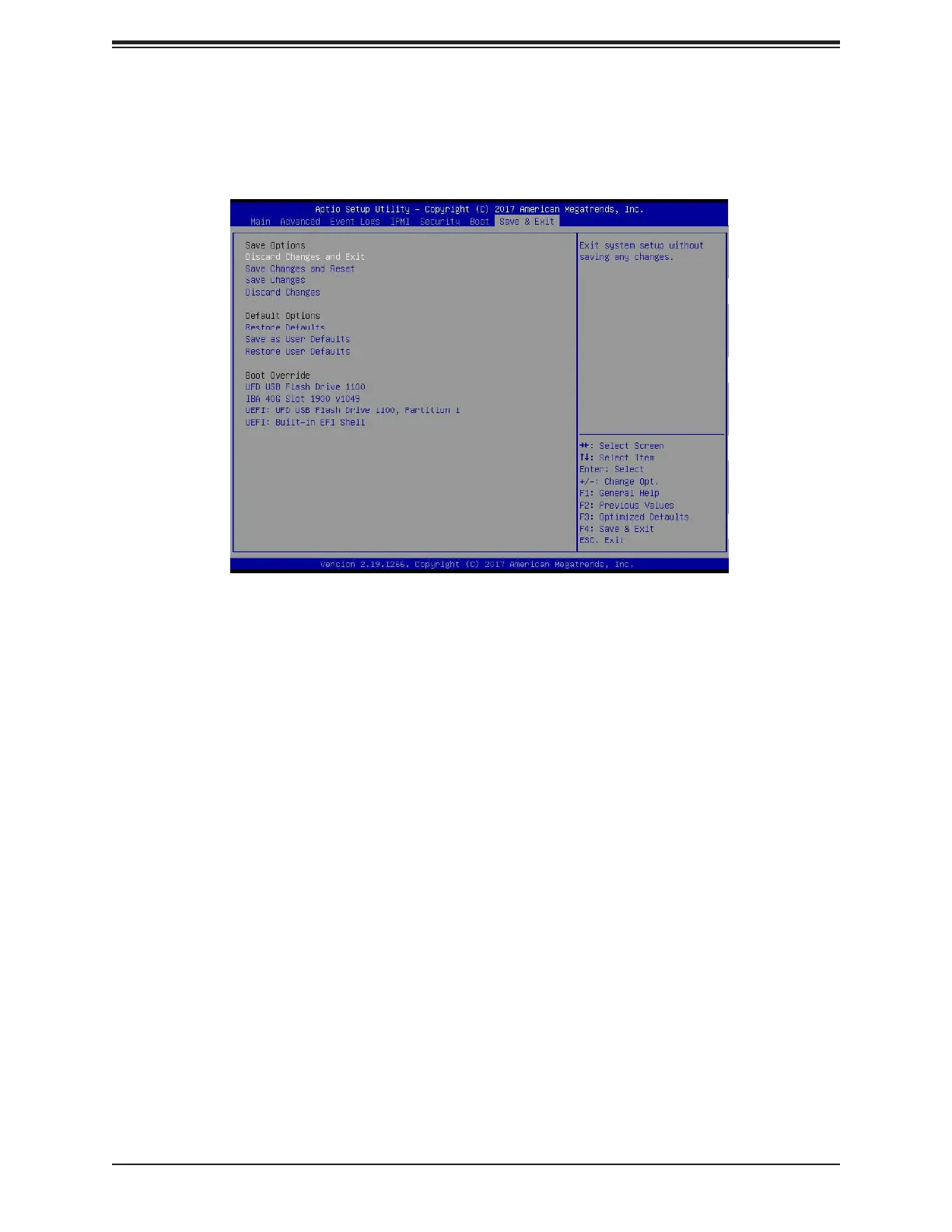

4.8 Save & Exit
Select the Save & Exit tab from the BIOS setup screen to congure the settings below:
Save Options
Discard Changes and Exit
Select this option to quit the BIOS Setup without making any permanent changes to the
system conguration, and reboot the computer. Select Discard Changes and Exit from the
Save & Exit menu and press <Enter>.
Save Changes and Reset
After completing the system conguration changes, select this option to save the changes
you have made. This will not reset (reboot) the system.
Save Changes
When you have completed the system conguration changes, select this option to leave the
BIOS setup utility and reboot the computer for the new system conguration parameters to
take e󰀨ect. Select Save Changes from the Save & Exit menu and press <Enter>.
Discard Changes
Select this option and press <Enter> to discard all the changes and return to the AMI BIOS
utility program.

Supermicro X11SPi-TF Specifications

General

USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Number of DIMM slots	8
Maximum LRDIMM memory	512 GB
Supported RDIMM module capacity	4GB, 8GB, 16GB, 32GB
Supported DIMM module capacities	4GB, 8GB, 16GB, 32GB, 64GB, 128MB
Supported LRDIMM module capacity	32GB, 64GB
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
ECC	Yes
Memory voltage	1.2 V
Maximum RDIMM memory	256 GB
Supported memory types	DDR4-SDRAM
Maximum internal memory	1024 GB
Supported memory clock speeds	1600, 1866, 2133, 2400, 2666 MHz
BIOS type	UEFI AMI
ACPI version	6.0
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
On-board graphics card model	Aspeed AST2500
Bundled software	Intel® Node Manager, IPMI2.0, KVM w/ dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Processor manufacturer	Intel
Processor thermal power (max)	205 W
Processor number of cores supported	28
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Component for	Server
Motherboard form factor	ATX
PCI Express x8 (Gen 2.x) slots	0
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	243.8 mm
Width	304.8 mm
