Super X11SPi-TF User's Manual

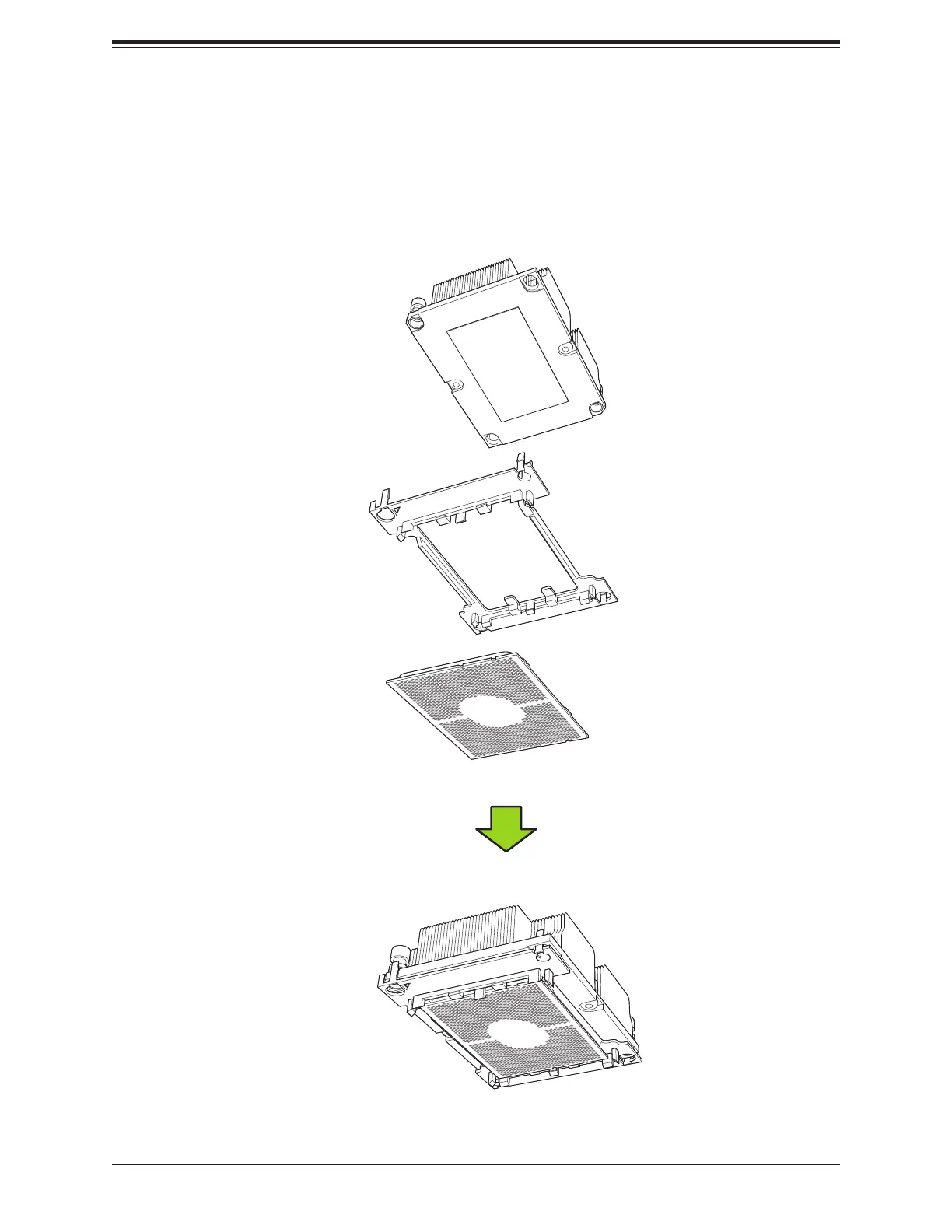

Overview of the Processor Heatsink Module
The Processor Heatsink Module (PHM) contains a heatsink, a processor carrier, and the
Intel Xeon Non-Fabric (Non-F) processor.
1. Heatsink with Thermal Grease
2. Processor Carrier
3. Non-F Processor
Processor Heatsink Module
Bottom View
