Supermicro X11SPi-TF

49
Chapter 2: Installation
SAN MAC
DESIGNED IN USA
BIOS LICENSE
X11SPi-TF
REV:1.02
IPMI CODE
MAC CODE
BAR CODE
JTPM1
JPWR1
MH11
MH10
JRK1
BT1
SP1
+
LEDBMC
LE3
LEDPWR
C
JL1
JOH1
JBT1
JSTBY1
JSD1
JSD2
JWD1
JPG1
JPME2
JIPMB1
JNVI2C1
FAN4
FAN3 FAN2
FAN1
FANA
FANB
FAN5
JPI2C1
JD1
I-SGPIO2
S-SGPIO1
I-SGPIO1
I-SATA4
I-SATA5
I-SATA6
I-SATA7
I-SATA0
S-SATA0
S-SATA1
I-SATA1
I-SATA2
I-SATA3
JF1
JPWR2
M.2 PCI-E 3.0 X4
USB10(3.0)
USB8/9(3.0)
USB6/7(3.0)
USB4/5
USB2/3
COM1
COM2
USB0/1
IPMI_LAN
LAN1
LAN2
VGA
UID-SW
UID-LED
PCH SLOT1 PCI-E 3.0 X4(IN X8)
CPU SLOT2 PCI-E 3.0 X8
CPU SLOT3 PCI-E 3.0 X8
CPU SLOT4 PCI-E 3.0 X16
CPU SLOT6 PCI-E 3.0 X16
CPU
DIMMF1 DIMME1
DIMMD1 DIMMD2
DIMMA2
DIMMA1
DIMMB1
RST
JF1
ON PWR UID
LED
PS
FAIL 1
NIC
2
NIC
NMIX
PWRHDD LEDLED
Intel
C622
ASpeed
AST2500
JPTG1
Intel
X557
DIMMC1

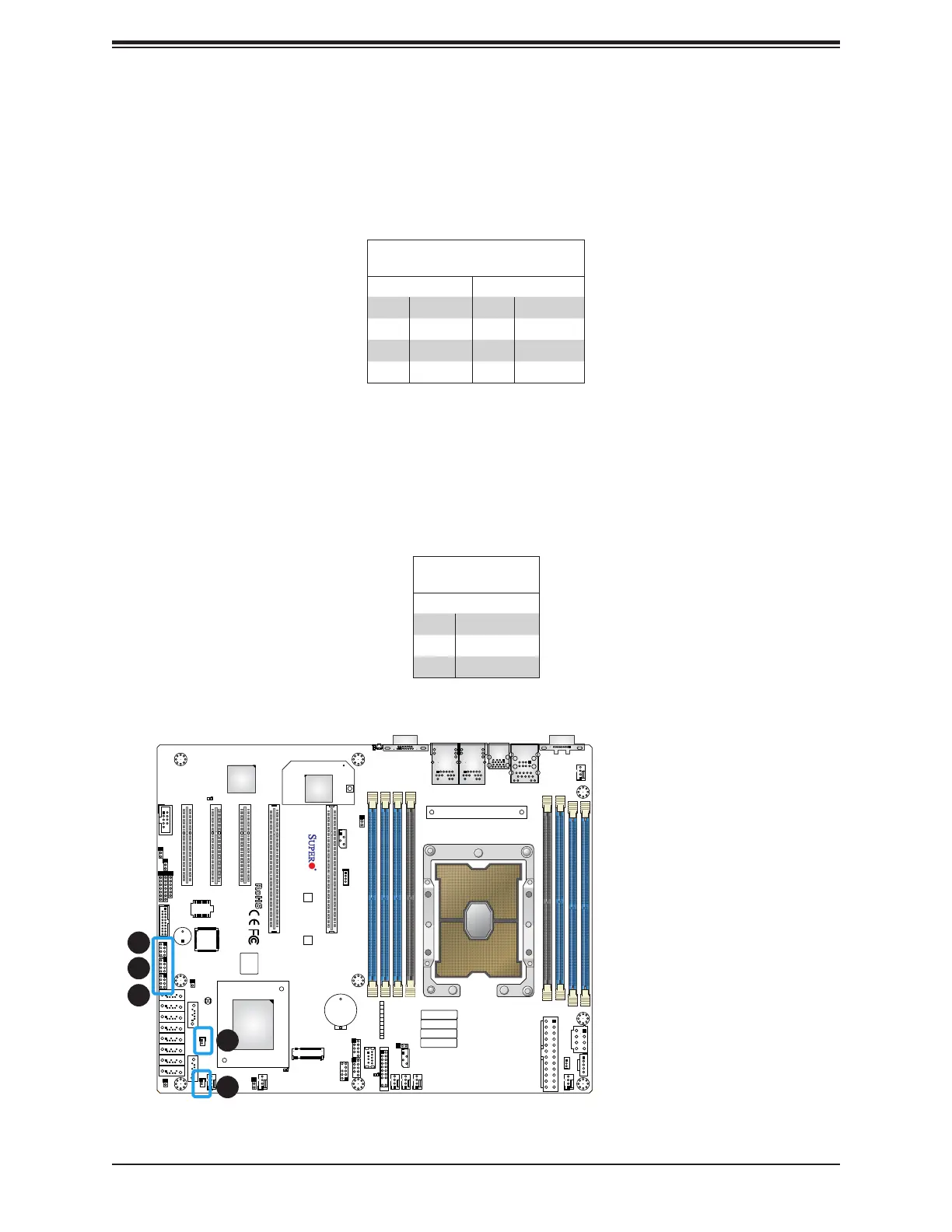

SGPIO Headers
There are three Serial Link General Purpose Input/Output (I-SGPIO1, I-SGPIO2, and
S-SGPIO1) headers located on the motherboard. I-SGPIO is for SATA use, while S-SGPIO
is for sSATA use. Refer to the tables below for pin denitions.
SGPIO Header
Pin Denitions
Pin# Denition Pin# Denition
1 NC 2 NC
3 Ground 4 Data
5 Load 6 Ground
7 Clock 8 NC
NC = No Connection
Disk-On-Module Power Connector
Two power connectors for SATA DOM (Disk-On-Module) devices are located at JSD1 and
JSD2. Connect appropriate cables here to provide power support for your Serial Link DOM
devices.
DOM Power
Pin Denitions
Pin# Denition
1 5V
2 Ground
3 Ground
1
2
3
4
5
1. I-SGPIO1
2. I-SGPIO2
3. S-SGPIO1
4. JSD1 (DOM PWR)
5. JSD2 (DOM PWR)
