Supermicro X11SPi-TF

59
Chapter 2: Installation
SAN MAC
DESIGNED IN USA
BIOS LICENSE
X11SPi-TF
REV:1.02
IPMI CODE
MAC CODE
BAR CODE
JTPM1
JPWR1
MH11
MH10
JRK1
BT1
SP1
+
LEDBMC
LE3
LEDPWR
C
JL1
JOH1
JBT1
JSTBY1
JSD1
JSD2
JWD1
JPG1
JPME2
JIPMB1
JNVI2C1
FAN4
FAN3 FAN2
FAN1
FANA
FANB
FAN5
JPI2C1
JD1
I-SGPIO2
S-SGPIO1
I-SGPIO1
I-SATA4
I-SATA5
I-SATA6
I-SATA7
I-SATA0
S-SATA0
S-SATA1
I-SATA1
I-SATA2
I-SATA3
JF1
JPWR2
M.2 PCI-E 3.0 X4
USB10(3.0)
USB8/9(3.0)
USB6/7(3.0)
USB4/5
USB2/3
COM1
COM2
USB0/1
IPMI_LAN
LAN1
LAN2
VGA
UID-SW
UID-LED
PCH SLOT1 PCI-E 3.0 X4(IN X8)
CPU SLOT2 PCI-E 3.0 X8
CPU SLOT3 PCI-E 3.0 X8
CPU SLOT4 PCI-E 3.0 X16
CPU SLOT6 PCI-E 3.0 X16
CPU
DIMMF1 DIMME1
DIMMD1 DIMMD2
DIMMA2
DIMMA1
DIMMB1
RST
JF1
ON PWR UID
LED
PS
FAIL 1
NIC
2
NIC
NMIX
PWRHDD LEDLED
Intel
C622
ASpeed
AST2500
JPTG1
Intel
X557
DIMMC1
1

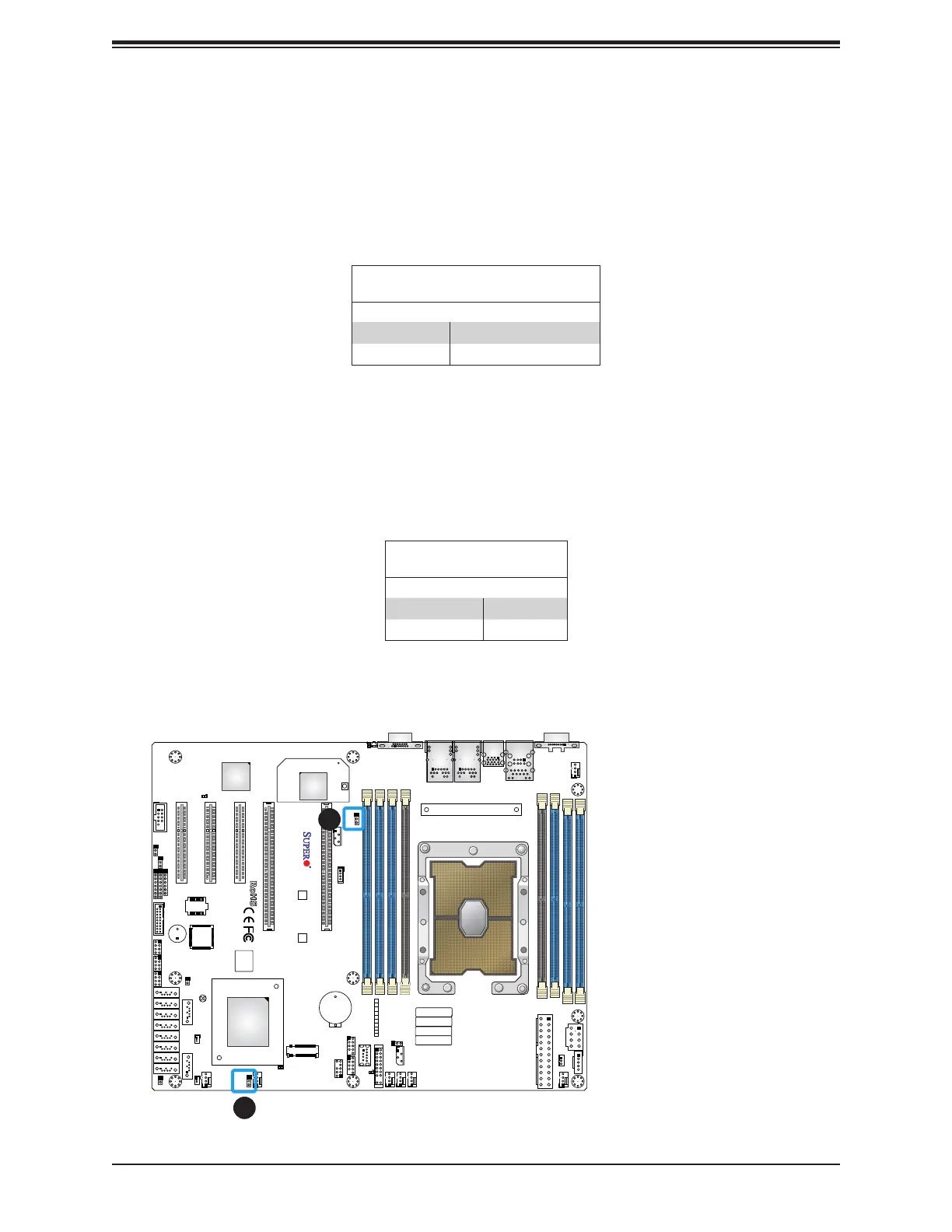

ME Manufacturing Mode
Close pins 2-3 of jumper JPME2 to bypass SPI ash security and force the system to operate
in the manufacturing mode, which will allow the user to ash the system rmware from a
host server for system setting modications. Refer to the table below for jumper settings.
The default setting is Normal.
Manufacturing Mode
Jumper Settings
Jumper Setting Denition
Pins 1-2 Normal
Pins 2-3 Manufacturing Mode
1. Manufacturing Mode
2. 10G LAN Enable
10Gb LAN Enable/Disable
JPTG1 allows you to enable or disable the 10Gb LAN. The default setting is Enabled.
10Gb LAN Enable/Disable
Jumper Settings
Jumper Setting Denition
Pins 1-2 Enabled
Pins 2-3 Disabled
2
