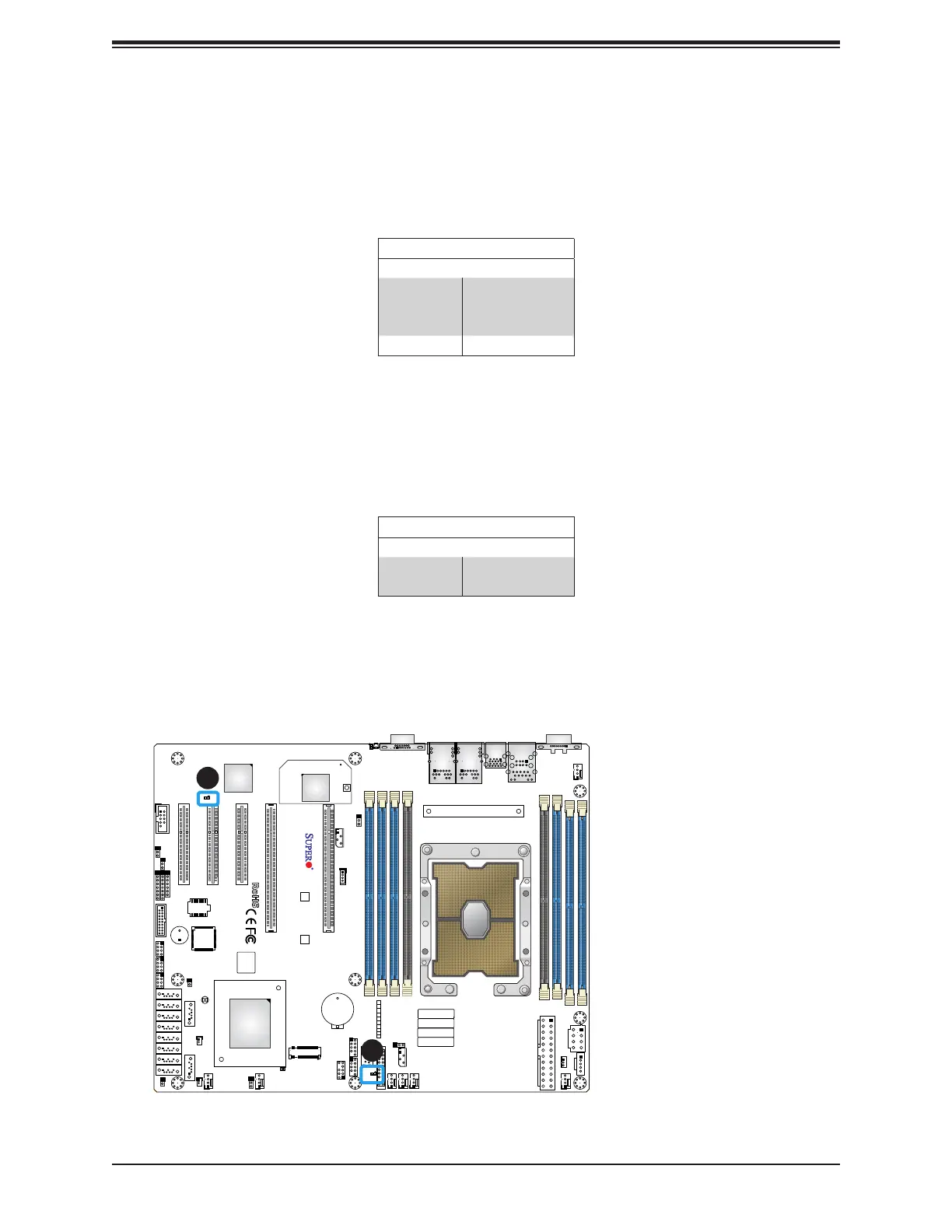

Onboard Power LED
The Onboard Power LED is located at LEDPWR on the motherboard. When this LED is on,
the system is on. Be sure to turn o󰀨 the system and unplug the power cord before removing
or installing components. Refer to the table below for more information.
Onboard Power LED Indicator
LED Color Denition
O󰀨
System O󰀨
(power cable not
connected)
Green System On
BMC Heartbeat LED
A BMC Heartbeat LED is located at LEDBMC on the motherboard. When LEDBMC is blinking,
the BMC is functioning normally. Refer to the table below for more information.
BMC Heartbeat LED Indicator
LED Color Denition
Green:
Blinking
BMC Normal
1
2
1. Onboard Power LED
2. BMC Heartbeat LED
