2-16
C7H61 User’s Manual
C
HDMI Port
A single High-Denition Multimedia Interface port is located next to the VGA port
on the I/O backpanel. This connector is used to display both high denition video
and digital sound through an HDMI-capable display, using a single HDMI cable (not
included). C7H61 supports HDMI specication version 1.4a.
VGA Port
A VGA port is located next to the USB ports on the I/O backpanel. Use this port to
connect to a compatible VGA display.

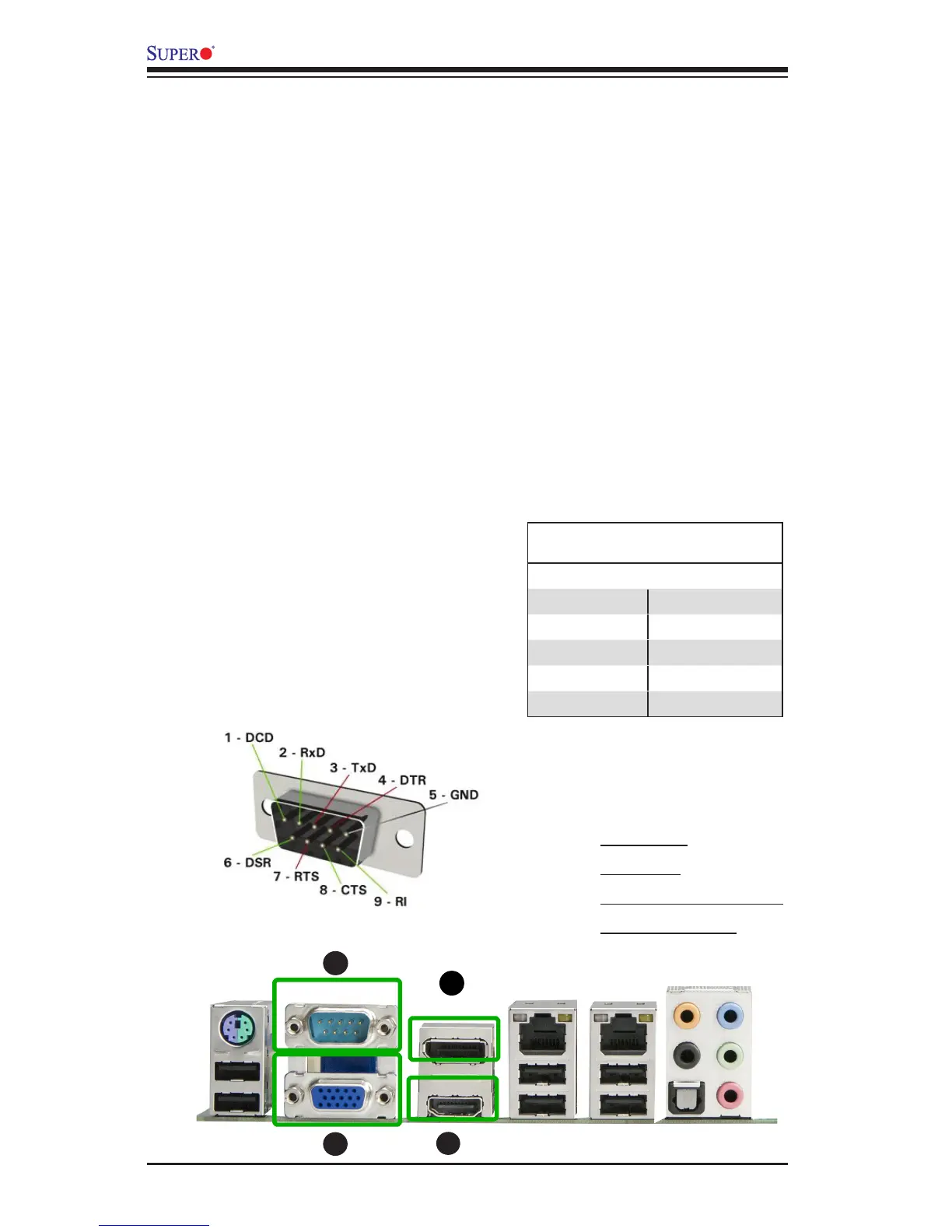

A
B
A. HDMI Port
B. VGA Port
C. COM1 Port (C7H61 only)
D. VESA DisplayPort
Serial Port (COM1)
Serial port COM1 is located on the I/O
back panel. There are seven other se-
rial port headers on the motherboard for
COM2~COM8. Refer to page 2-24 for more
information. See the table on the right for
pin denitions.
Serial Port COM1
Pin Denitions
Pin # Denition Pin # Denition
1 DCD 6 DSR
2 RxD 7 RTS
3 TxD 8 CTS
4 DTR 9 RI
5 Ground 10 N/A
D
VESA DisplayPort
DisplayPort was developed by VESA (Video Electronics Standards Association) and
the DisplayPort Task Group. DisplayPort Connects to virtually any device, and an
Active DisplayPort adaptor allows legacy devices with VGA, DVI and HDMI ports to
be connected easily. C7H61 supports DisplayPort standard version 1.1a.
